DIODESDatasheet (PDF)

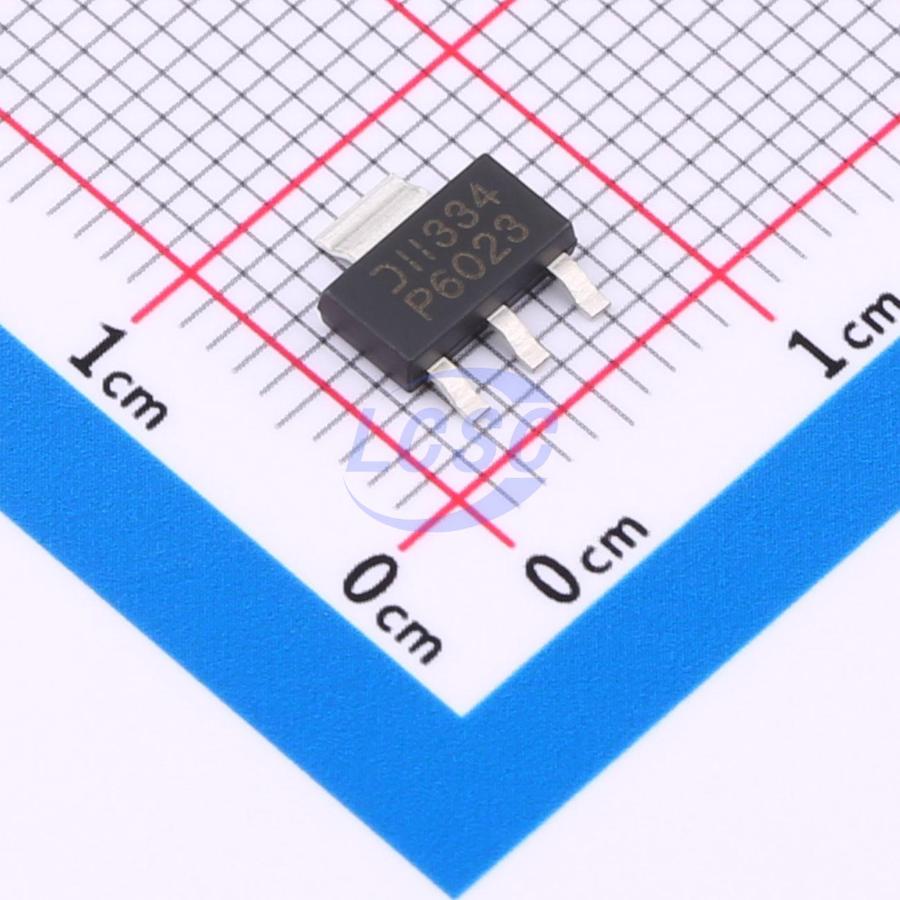

DMP6023LEQ-13
P-Channel 60V 7A 2W Surface Mount SOT-223
SOT-223ROHS3 CompliantActive
MOSFET P-CH 60V 7A SOT-223
- Manufacturer
- DIODES
- Manufacturer part #
- DMP6023LEQ-13
- Store part #
- C5224048
- Package / case
- SOT-223
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28 in stock
#C5224048
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹220.35 | ₹220.35 |
| 10+ | ₹186.89 | ₹1,868.90 |
| 30+ | ₹166.02 | ₹4,980.60 |
| 100+ | ₹144.72 | ₹14,472.00 |
| 500+ | ₹135.17 | ₹67,585.00 |
| 1,000+ | ₹131.03 | ₹1,31,030.00 |
1 × ₹220.35
₹220.35
excl. GST
₹260.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMP6023LEQ-13
₹220.35 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 179pF
- Current - Continuous Drain(Id)
- 7A
- Ciss-Input Capacitance
- 2.569nF
- Pd - Power Dissipation
- 2W
- Reverse Transfer Capacitance (Crss)
- 143pF
- RDS(on)
- 28mΩ@10V;35mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 26.5nC@4.5V;53.1nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.45 g
Overview
This MOSFET is designed to minimize on-resistance RDS(ON) while maintaining excellent switching performance, making it ideal for high-efficiency power management applications.
Applications
- Backlighting
- Power management
- DC-DC converter
Key features
- Low on-resistance
- Fast switching speed
- Low threshold
- Low gate drive
- Low input capacitance
- Lead-free finish; RoHS compliant
- Halogen- and antimony-free; "Green" device
- AEC-Q101 qualified for high reliability
- PPAP capable
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMP6023LE-13#C154901DIODES · SOT-223 | DIODES | SOT-223 | 15,576 | ₹78.16 · 15,576 in stock | View |
 | NDT2955-VB#C693363VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 75 | ₹81.31 · 75 in stock | View |
 | NTF2955PT1G-VB#C710036VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 306 | ₹44.12 · 306 in stock | View |
 | NTF2955T1G-VB#C725133VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 193 | ₹96.67 · 193 in stock | View |
 | STN3PF06-VB#C725212VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 1 | ₹91.49 · 1 in stock | View |
