DIODESDatasheet (PDF)

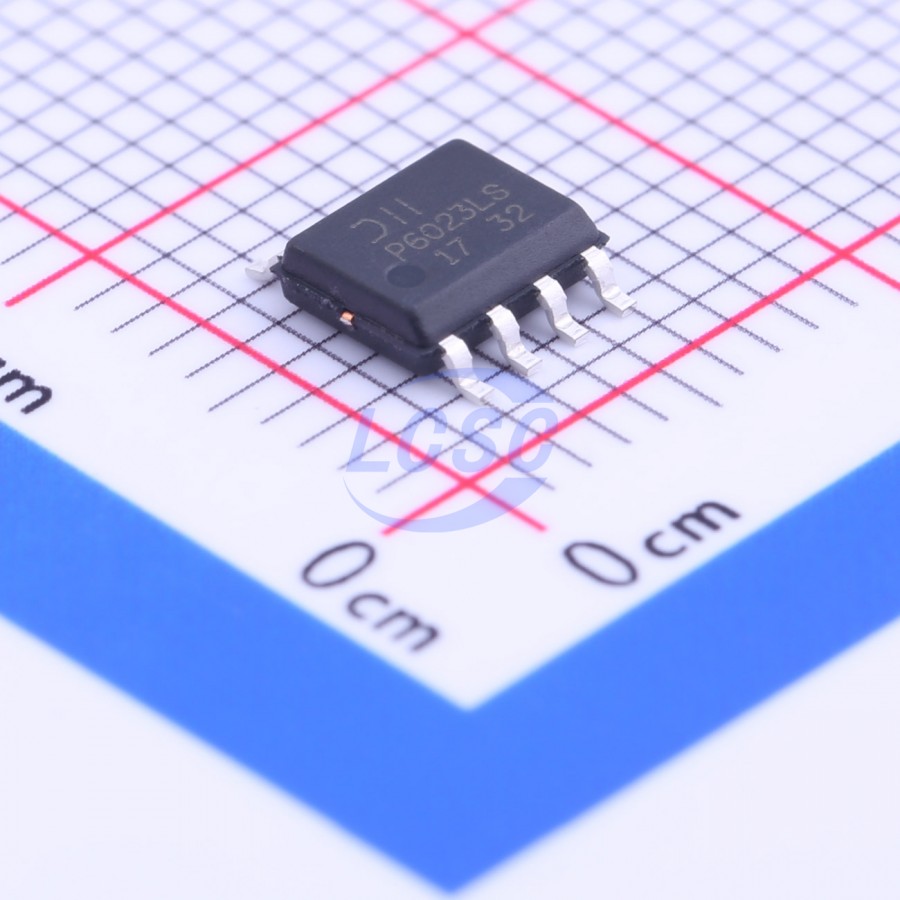

DMP6023LSS-13
P-Channel 60V 6.6A 1.6W Surface Mount SO-8
SO-8ROHS CompliantActive
MOSFET P-CH 60V 6.6A SO-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMP6023LSS-13
- Store part #
- C154911
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,913 in stock
#C154911
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹141.51 | ₹141.51 |
| 10+ | ₹120.17 | ₹1,201.70 |
| 30+ | ₹108.42 | ₹3,252.60 |
| 100+ | ₹95.36 | ₹9,536.00 |
| 500+ | ₹89.47 | ₹44,735.00 |
| 1,000+ | ₹86.87 | ₹86,870.00 |
1 × ₹141.51
₹141.51
excl. GST
₹166.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMP6023LSS-13
₹141.51 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 179pF
- Ciss-Input Capacitance
- 2.569nF
- Pd - Power Dissipation
- 1.6W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 6.6A
- Reverse Transfer Capacitance (Crss)
- 143pF
- RDS(on)
- 33mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 53.1nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.388 g
Overview
This MOSFET is designed to minimize the on-state resistance (RDS(on)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- Backlighting
- Power Management Functions
- DC-DC Converters
Key features
- Low On-Resistance
- Fast Switching Speed
- Low Threshold
- Low Gate Drive
- Low Input Capacitance
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP60P30P8#C41355216Siliup · SOP-8 | Siliup | SOP-8 | 740 | ₹32.68 · 740 in stock | View |
 | TPM60V4PS8#C4355025TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 864 | ₹46.79 · 864 in stock | View |
 | HSM6115#C700986HUASHUO · SOP-8 | HUASHUO | SOP-8 | 1,280 | ₹56.13 · 1,280 in stock | View |
 | STP4441#C2682817STANSON Tech. · SOP-8 | STANSON Tech. | SOP-8 | 200 | ₹17.78 · 200 in stock | View |
 | STP6621#C2682814STANSON Tech. · SOP-8 | STANSON Tech. | SOP-8 | 6,935 | ₹34.70 · 6,935 in stock | View |
