DIODESDatasheet (PDF)

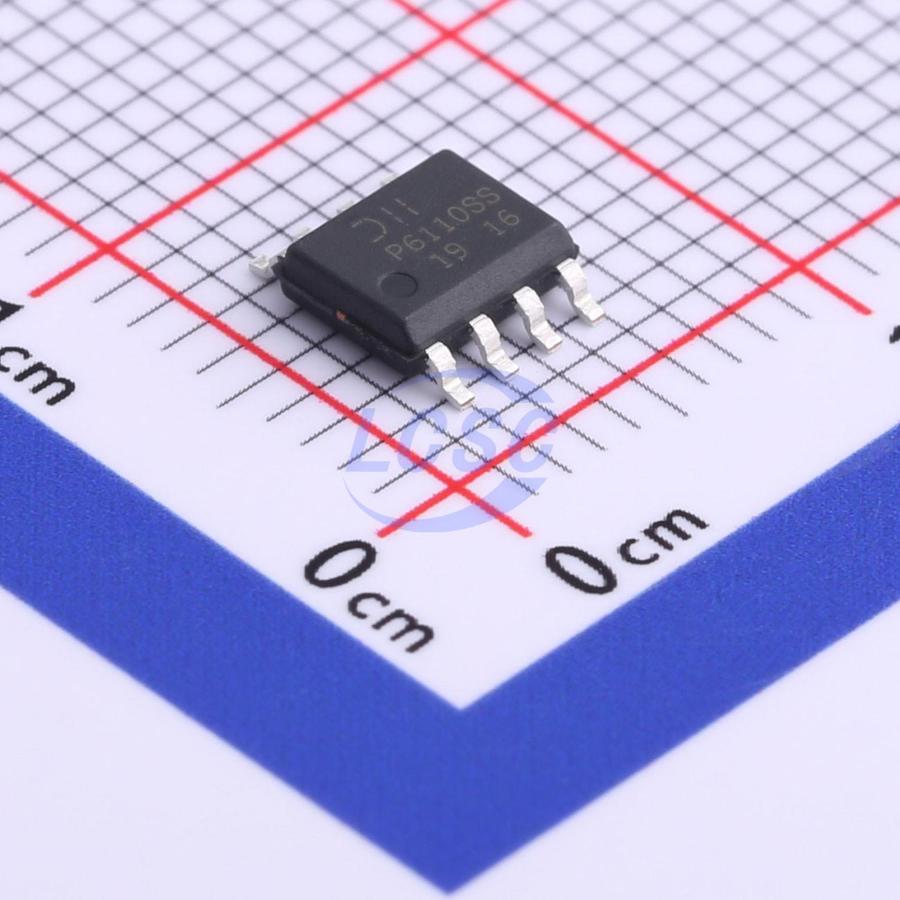

DMP6110SSS-13
60V 4.5A 1.5W Surface Mount SO-8
SO-8ROHS3 CompliantActive
MOSFET 60V 4.5A SO-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMP6110SSS-13
- Store part #
- C445549
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,210 in stock
#C445549
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹53.33 | ₹266.65 |
| 50+ | ₹42.20 | ₹2,110.00 |
| 150+ | ₹37.43 | ₹5,614.50 |
| 500+ | ₹31.47 | ₹15,735.00 |
| 2,500+ | ₹26.68 | ₹66,700.00 |
| 5,000+ | ₹25.08 | ₹1,25,400.00 |
5 × ₹53.33
₹266.65
excl. GST
₹314.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMP6110SSS-13
₹266.65 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 49.1pF
- Ciss-Input Capacitance
- 1.03nF
- Pd - Power Dissipation
- 1.5W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 4.5A
- Reverse Transfer Capacitance (Crss)
- 38.7pF
- RDS(on)
- 110mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 19.4nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.194 g
Overview
This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- Backlighting
- Power Management Functions DC-DC Converters
Key features
- Low On-Resistance
- Low Gate Threshold Voltage
- Low Input Capacitance
- Fast Switching Speed
- Low Input/ Output Leakage
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP60P60P8#C41355218Siliup · SOP-8 | Siliup | SOP-8 | 3,645 | ₹23.85 · 3,645 in stock | View |
 | TPM60V4PS8#C4355025TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 864 | ₹46.79 · 864 in stock | View |
| DMP6110SSSQ-13#C6601855DIODES · SO-8 | DIODES | SO-8 | 19 | ₹101.05 · 19 in stock | View | |
 | LP4565T1G#C2912044LRC · SO-8 | LRC | SO-8 | 3,785 | ₹26.54 · 3,785 in stock | View |
 | TPM2P106PS8#C5182097TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 1,093 | ₹112.18 · 1,093 in stock | View |
