DIODESDatasheet (PDF)

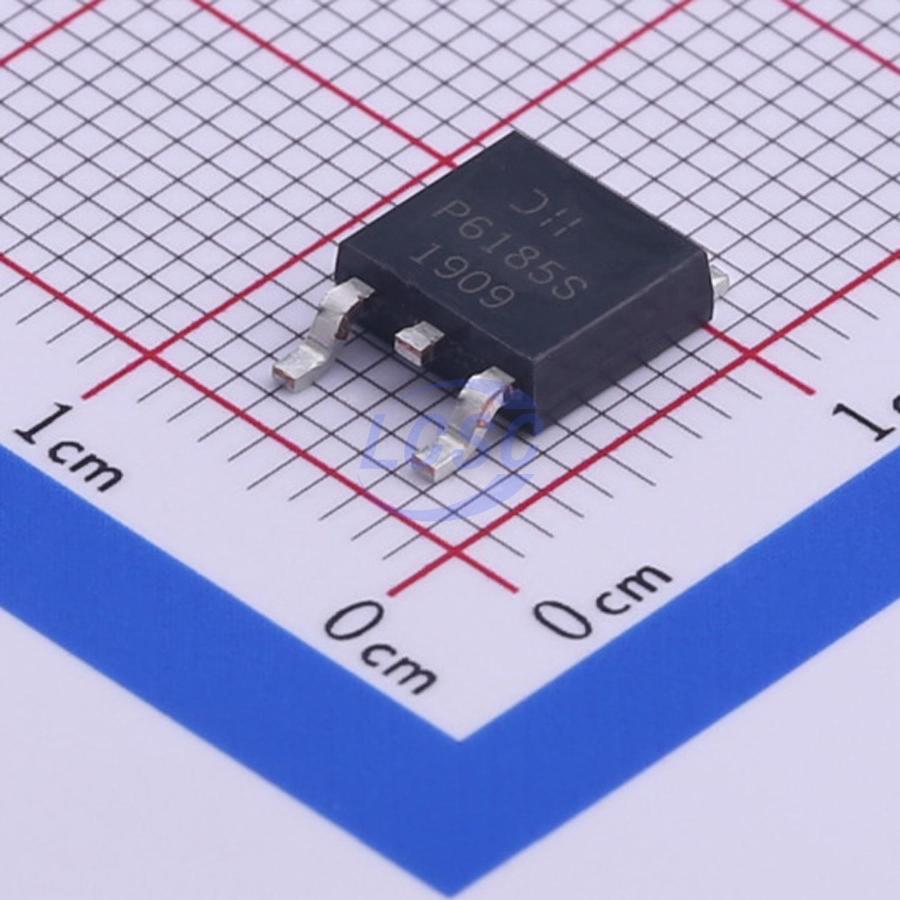

DMP6185SK3-13
P-Channel 60V 9.4A 1.6W Surface Mount TO-252(DPAK)
TO-252(DPAK)ROHS3 CompliantActive
MOSFET P-CH 60V 9.4A TO-252(DPAK)
- Manufacturer
- DIODES
- Manufacturer part #
- DMP6185SK3-13
- Store part #
- C461100
- Package / case
- TO-252(DPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
134 in stock
#C461100
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹51.29 | ₹51.29 |
| 10+ | ₹50.21 | ₹502.10 |
| 30+ | ₹49.33 | ₹1,479.90 |
| 100+ | ₹48.69 | ₹4,869.00 |
1 × ₹51.29
₹51.29
excl. GST
₹60.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMP6185SK3-13
₹51.29 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 39pF
- Ciss-Input Capacitance
- 708pF
- Pd - Power Dissipation
- 1.6W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 9.4A
- Reverse Transfer Capacitance (Crss)
- 32pF
- RDS(on)
- 185mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 14nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.36 g
Overview
This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- Backlighting
- DC-DC Converters
- Power Management Functions
Key features
- 100% Unclamped Inductive Switch (UIS) Test in Production
- Low On-resistance
- Fast Switching Speed
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPM6014PK3-1#C5350905TECH PUBLIC · TO-252-2L | TECH PUBLIC | TO-252-2L | 490 | ₹20.52 · 490 in stock | View |
 | WSF15P10#C148442Winsok Semicon · TO-252 | Winsok Semicon | TO-252 | 2,859 | ₹58.53 · 2,859 in stock | View |
 | NCE60P10K#C502840NCE · TO-252-2L | NCE | TO-252-2L | 5,900 | ₹109.93 · 5,900 in stock | View |
 | XR10P10#C42457027XNRUSEMI · TO-252-3L | XNRUSEMI | TO-252-3L | 1,095 | ₹21.10 · 1,095 in stock | View |
 | 2SJ598-ZK-E1-AZ#C3290854RENESAS · TO-252(MP-3ZK) | RENESAS | TO-252(MP-3ZK) | 14 | ₹77.08 · 14 in stock | View |
