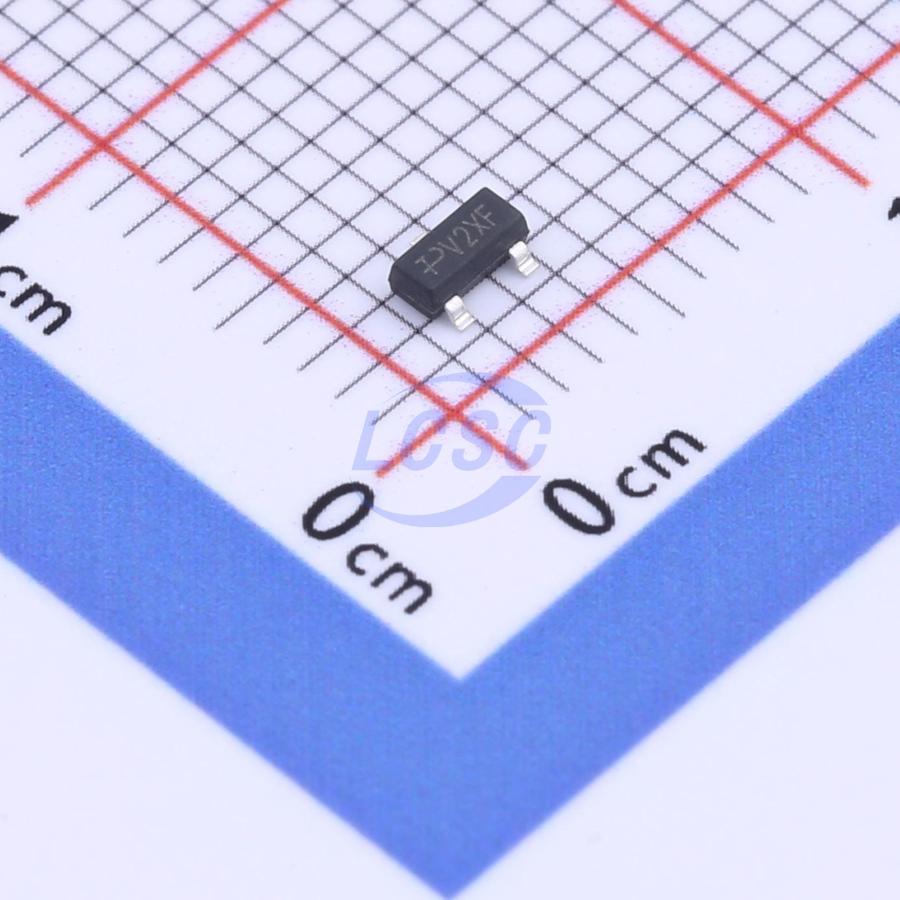

DMP6350S
P-Channel 60V 1.6A 1.5W Surface Mount SOT-23
SOT-23RoHSActive
MOSFET P-CH 60V 1.6A SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- DMP6350S
- Store part #
- C3021113
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
940 in stock
#C3021113
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.95 | ₹64.75 |
| 50+ | ₹10.20 | ₹510.00 |
| 150+ | ₹8.82 | ₹1,323.00 |
| 500+ | ₹7.79 | ₹3,895.00 |
| 3,000+ | ₹6.73 | ₹20,190.00 |
| 6,000+ | ₹6.32 | ₹37,920.00 |
5 × ₹12.95
₹64.75
excl. GST
₹76.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMP6350S
₹64.75 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 19.6pF
- Ciss-Input Capacitance
- 444.2pF
- Pd - Power Dissipation
- 1.5W
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 1.6A
- Reverse Transfer Capacitance (Crss)
- 17.9pF
- RDS(on)
- 240mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 11.3nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.6V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
The AP50P10NF utilizes advanced trench technology to deliver excellent drain-to-source on-resistance (RDS(ON)), low gate charge, and operation down to 4.5V gate voltage. This device is suitable for battery protection or other switching applications.
Applications
- Load/power switch
- Interface switch
- Logic level translation
Key features
- VDS = -60V, ID = -1.6A
- RDS(ON) < 200mΩ at VGS = -10V
- RDS(ON) < 240mΩ at VGS = -4.5V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDN5618P#C3021110TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 39,180 | ₹13.03 · 39,180 in stock | View |
 | TPM60V2PS3#C3021111TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,670 | ₹16.59 · 2,670 in stock | View |
 | SI2309CDS#C3021112TECH PUBLIC · SOT-23-3 | TECH PUBLIC | SOT-23-3 | 9,495 | ₹13.34 · 9,495 in stock | View |
 | ZXMP6A13FTA#C3021114TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 22,190 | ₹14.78 · 22,190 in stock | View |
 | SI2309A#C3040621TECH PUBLIC · SOT-23-3L | TECH PUBLIC | SOT-23-3L | 2,620 | ₹8.69 · 2,620 in stock | View |
