DIODESDatasheet (PDF)

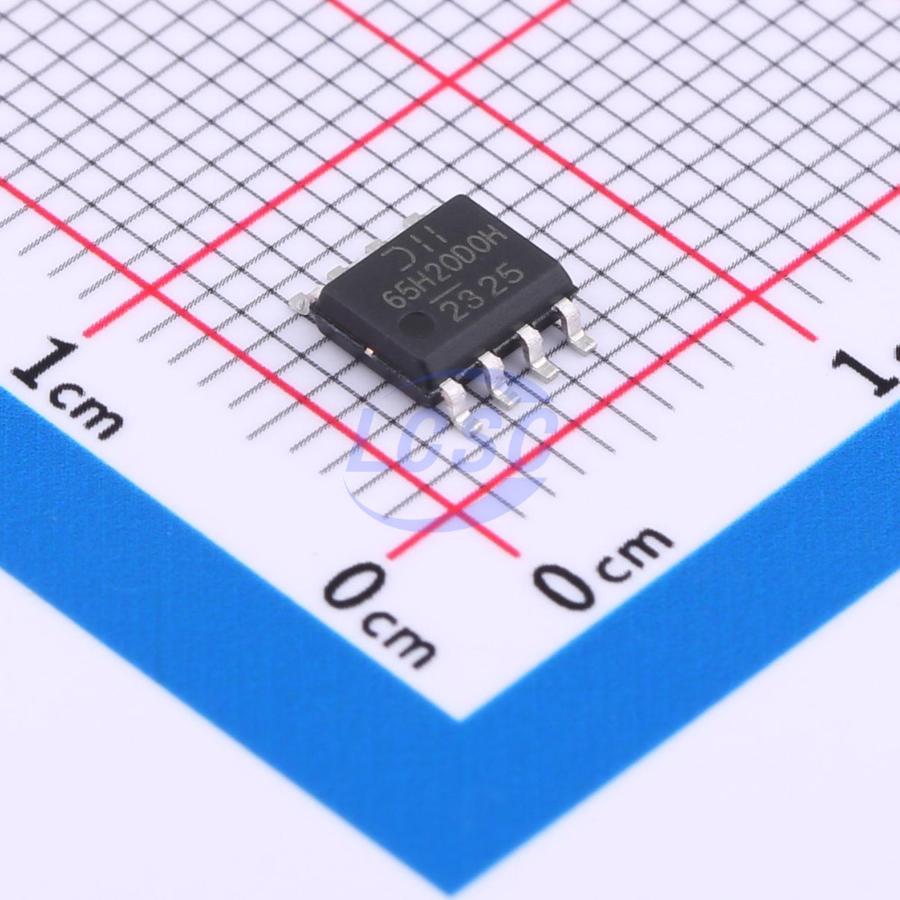

DMP65H20D0HSS-13
P-Channel 600V 0.2A 1.9W Surface Mount SO-8
SO-8ROHS3 CompliantActive
MOSFET P-CH 600V 0.2A SO-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMP65H20D0HSS-13
- Store part #
- C7264684
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C7264684
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹159.70 | ₹159.70 |
| 10+ | ₹130.81 | ₹1,308.10 |
| 30+ | ₹114.73 | ₹3,441.90 |
| 100+ | ₹96.91 | ₹9,691.00 |
| 500+ | ₹88.88 | ₹44,440.00 |
| 1,000+ | ₹85.40 | ₹85,400.00 |
1 × ₹159.70
₹159.70
excl. GST
₹188.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
DMP65H20D0HSS-13
₹159.70 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Current - Continuous Drain(Id)
- 200mA
- Ciss-Input Capacitance
- 400pF
- Pd - Power Dissipation
- 1.9W
- Reverse Transfer Capacitance (Crss)
- 2.7pF
- RDS(on)
- 20Ω@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 9.7nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
This MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power management applications.
Applications
- Motor Control
- Backlighting
- AC-DC Converters
Key features
- Low On-Resistance High BVDSS Rating for Power Application
- Low Input Capacitance
- Fast Switching
- High Efficiency
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| DMP65H13D0HSS-13#C7264682DIODES · SO-8 | DIODES | SO-8 | On request | ₹145.97 · 0 in stock | View | |
| DMP65H11D0HSS-13#C5624163DIODES · SO-8 | DIODES | SO-8 | On request | ₹158.98 · 0 in stock | View | |
 | DMP65H9D0HSS-13#C5245396DIODES · SO-8 | DIODES | SO-8 | On request | ₹221.83 · 0 in stock | View |
