DIODESDatasheet (PDF)

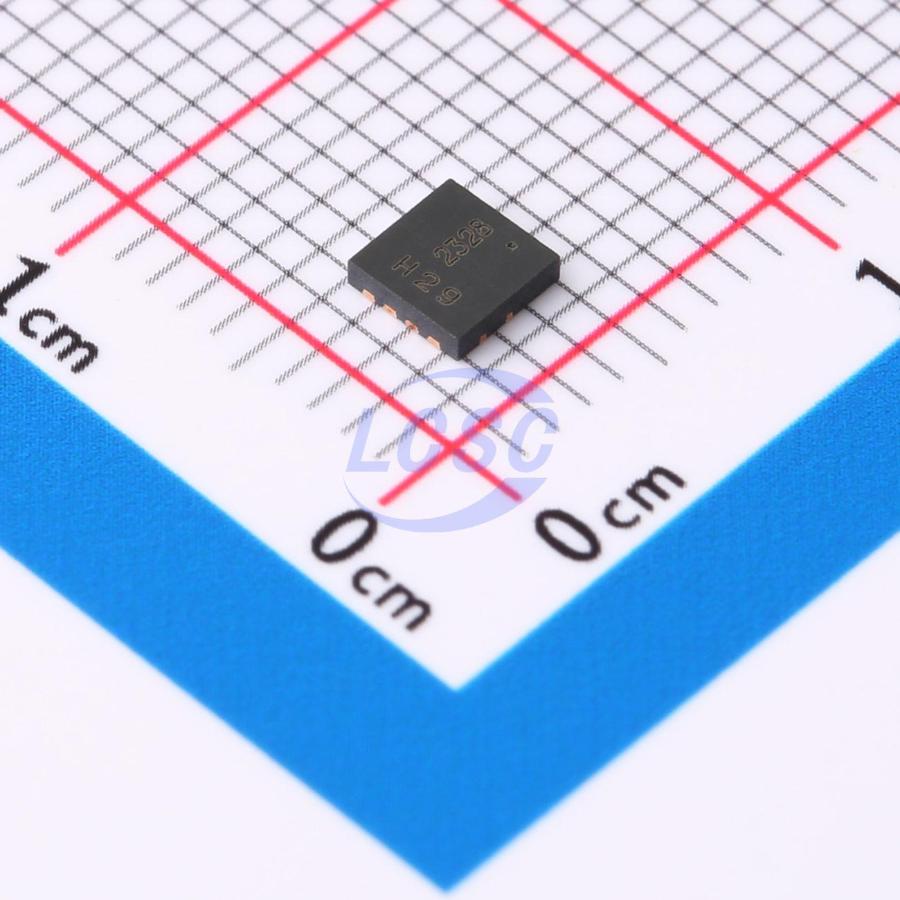

DMPH4029LFGQ-7
P-Channel 40V 8A 2.8W Surface Mount PowerDI3333-8
PowerDI3333-8ROHS3 CompliantActive
MOSFET P-CH 40V 8A PowerDI3333-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMPH4029LFGQ-7
- Store part #
- C3279395
- Package / case
- PowerDI3333-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,186 in stock
#C3279395
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹123.65 | ₹123.65 |
| 10+ | ₹98.66 | ₹986.60 |
| 30+ | ₹86.27 | ₹2,588.10 |
| 100+ | ₹74.10 | ₹7,410.00 |
| 500+ | ₹66.72 | ₹33,360.00 |
| 1,000+ | ₹62.80 | ₹62,800.00 |
1 × ₹123.65
₹123.65
excl. GST
₹145.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
DMPH4029LFGQ-7
₹123.65 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 8A
- Ciss-Input Capacitance
- 1.626nF
- Pd - Power Dissipation
- 2.8W
- Reverse Transfer Capacitance (Crss)
- 107pF
- RDS(on)
- 45mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 34nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.089 g
Overview
This MOSFET is designed to meet the stringent requirements of automotive applications. It is qualified to AEC - Q101, supported by a PPAP and is ideal for use in backlighting, power - management functions, DC - DC converters.
Applications
- Backlighting
- Power - management functions
- DC - DC converters
Key features
- Rated to +175°C — Ideal for High Ambient Temperature Environments
- 100% Unclamped Inductive Switching Test in Production — Ensures More Reliable and Robust End Application
- Low RDS(ON) — Ensures On State Losses Are Minimized
- Small Form Factor Thermally Efficient Package Enables Higher Density End Products Occupies Just 33% of the Board Area Occupied by SO - 8 Enabling Smaller End Product
- Lead - Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- The DMPH4029LFGQ is suitable for automotive applications requiring specific change control; this part is AEC - Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SISS5623DN-T1-GE3#C20346159VISHAY · PowerPAK1212-8S | VISHAY | PowerPAK1212-8S | 1 | ₹186.89 · 1 in stock | View |
 | SQ7415AEN-T1_GE3#C506610VISHAY · PowerPAK1212-8 | VISHAY | PowerPAK1212-8 | 2 | ₹83.19 · 2 in stock | View |
 | SQ7415AENW-T1_GE3#C727691VISHAY · PowerPAK-1212-8W | VISHAY | PowerPAK-1212-8W | 490 | ₹133.03 · 490 in stock | View |
 | DMPH6050SFGQ-7#C5374777DIODES · PowerDI3333-8 | DIODES | PowerDI3333-8 | 48 | ₹91.92 · 48 in stock | View |
 | NVTFS5116PLTAG#C389530onsemi · WDFN-8(3.3x3.3) | onsemi | WDFN-8(3.3x3.3) | 14 | ₹110.77 · 14 in stock | View |
