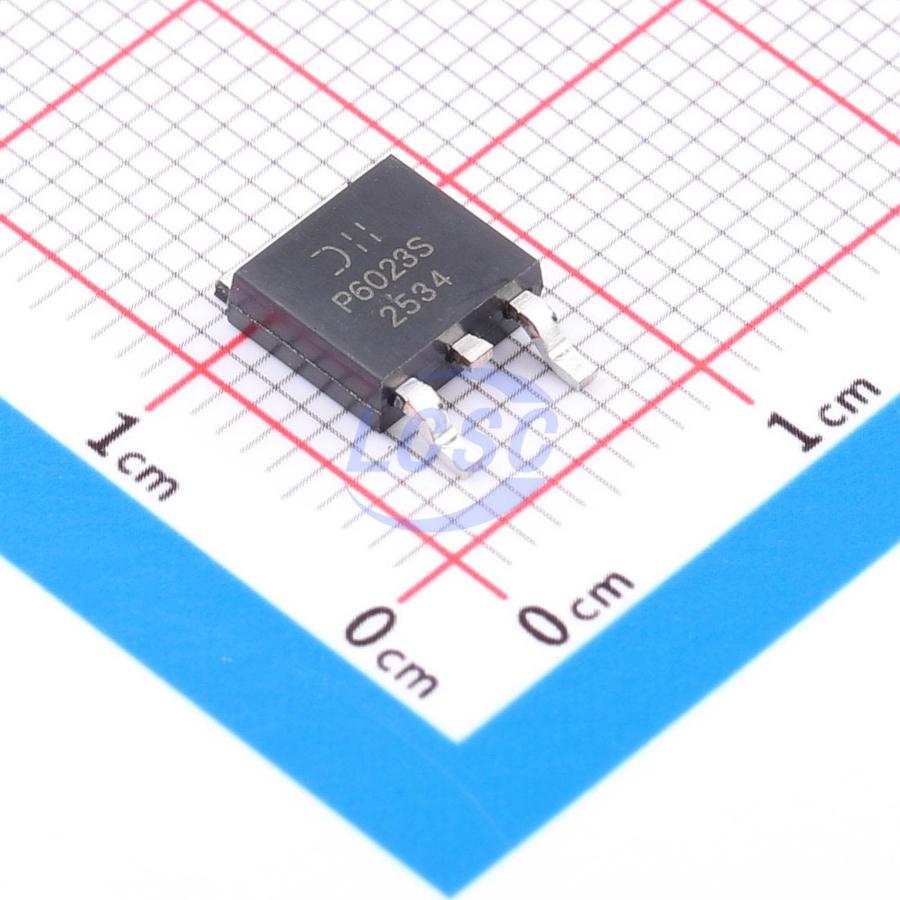

DMPH6023SK3-13
P-Channel 60V 35A 3.2W Surface Mount TO-252(DPAK)
TO-252(DPAK)ROHS3 CompliantActive
MOSFET P-CH 60V 35A TO-252(DPAK)
- Manufacturer
- DIODES
- Manufacturer part #
- DMPH6023SK3-13
- Store part #
- C2682492
- Package / case
- TO-252(DPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
246 in stock
#C2682492
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹212.86 | ₹212.86 |
| 10+ | ₹174.41 | ₹1,744.10 |
| 30+ | ₹153.12 | ₹4,593.60 |
| 100+ | ₹129.24 | ₹12,924.00 |
| 500+ | ₹118.59 | ₹59,295.00 |
| 1,000+ | ₹113.82 | ₹1,13,820.00 |
1 × ₹212.86
₹212.86
excl. GST
₹251.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMPH6023SK3-13
₹212.86 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 35A
- Ciss-Input Capacitance
- 2.569nF
- Pd - Power Dissipation
- 3.2W
- Reverse Transfer Capacitance (Crss)
- 143pF
- RDS(on)
- 33mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 53.1nC
- Gate Threshold Voltage (Vgs(th))
- 1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.655 g
Overview
This MOSFET has been designed to meet the stringent requirements of Automotive applications.
Applications
- Engine Management Systems
- Body Control Electronics
- DCDC Converters
Key features
- Rated to +175°C – Ideal for High Ambient Temperature Environments
- 100% Unclamped Inductive Switching – Ensures More Reliable and Robust End Application
- Low On-Resistance
- Low Input Capacitance
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP60P25TH#C41355212Siliup · TO-252-2L | Siliup | TO-252-2L | 55 | ₹30.79 · 55 in stock | View |
 | TPM6061PK3-1#C7472885TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 1,145 | ₹83.92 · 1,145 in stock | View |
 | DMPH6023SK3Q-13#C5381673DIODES · TO-252(DPAK) | DIODES | TO-252(DPAK) | 65 | ₹91.76 · 65 in stock | View |
 | AGM60P14D#C5373090AGMSEMI · TO-252 | AGMSEMI | TO-252 | 200 | ₹60.84 · 200 in stock | View |
 | AOD409-GK#C42456340GOODWORK · TO-252 | GOODWORK | TO-252 | 4,895 | ₹50.67 · 4,895 in stock | View |
