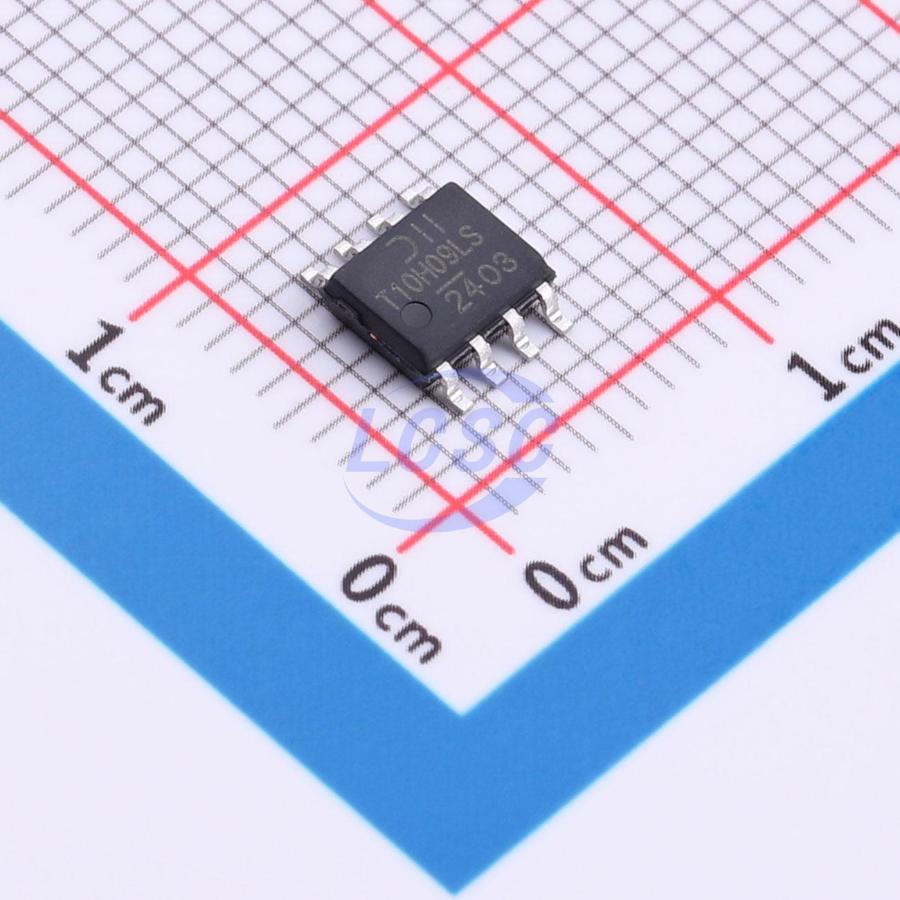

DMT10H009LSS-13
100V 2.5W 9mΩ@10V 1 N-channel SO-8 Single FETs, MOSFETs RoHS
SO-8ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- DMT10H009LSS-13
- Store part #
- C6601861
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C6601861
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹338.11 | ₹338.11 |
| 10+ | ₹332.95 | ₹3,329.50 |
| 30+ | ₹329.29 | ₹9,878.70 |
| 100+ | ₹325.85 | ₹32,585.00 |
1 × ₹338.11
₹338.11
excl. GST
₹398.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMT10H009LSS-13
₹338.11 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 13A;48A
- Ciss-Input Capacitance
- 2.309nF
- Pd - Power Dissipation
- 2.5W
- Reverse Transfer Capacitance (Crss)
- 13.7pF
- RDS(on)
- 9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 40.2nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.644 g
Overview
This MOSFET is designed to minimize on-resistance R<sub>DS(ON)</sub> while maintaining excellent switching performance, making it ideal for high-efficiency power management applications.
Applications
- High-Frequency Switching Synchronous Rectification DC-DC Converter
Key features
- High conversion efficiency
- Low RDS(ON) — minimizes conduction losses
- Low input capacitance
- Fast switching speed
- 100% UIS tested during production — ensures greater reliability and durability in end applications
- Fully lead-free and fully RoHS compliant
- Halogen- and antimony-free. "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SIDR510EP-T1-RE3#C5918958VISHAY · SO-8 | VISHAY | SO-8 | 5 | ₹571.73 · 5 in stock | View |
 | TPH6R30ANL,L1Q#C6560350TOSHIBA · SOP-8 | TOSHIBA | SOP-8 | 20 | ₹142.34 · 20 in stock | View |
 | SIR882ADP-T1-GE3#C553986VISHAY · SO-8 | VISHAY | SO-8 | 25 | ₹224.34 · 25 in stock | View |
 | TPH2R70AR5,LQ#C51893733TOSHIBA · SOP-8 | TOSHIBA | SOP-8 | 27 | ₹281.84 · 27 in stock | View |
 | TPH3R70APL,L1Q(M#C471285TOSHIBA · SOP-8-Advance | TOSHIBA | SOP-8-Advance | 3,263 | ₹155.73 · 3,263 in stock | View |
