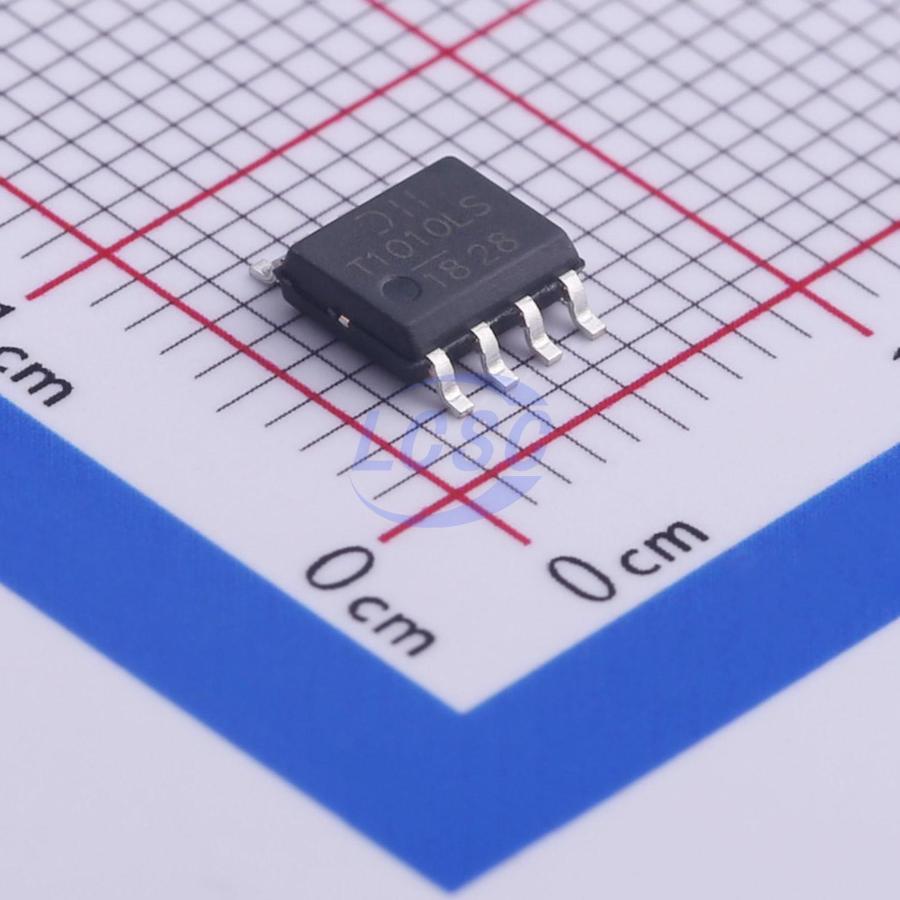

DMT10H010LSS-13
N-Channel 100V 29.5A 1.9W Surface Mount SO-8
SO-8ROHS3 CompliantActive
MOSFET N-CH 100V 29.5A SO-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMT10H010LSS-13
- Store part #
- C461106
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
27 in stock
#C461106
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹125.82 | ₹125.82 |
| 10+ | ₹102.14 | ₹1,021.40 |
| 30+ | ₹90.19 | ₹2,705.70 |
| 100+ | ₹78.45 | ₹7,845.00 |
| 500+ | ₹71.49 | ₹35,745.00 |
| 1,000+ | ₹67.80 | ₹67,800.00 |
1 × ₹125.82
₹125.82
excl. GST
₹148.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMT10H010LSS-13
₹125.82 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 764pF
- Ciss-Input Capacitance
- 4.166nF
- Pd - Power Dissipation
- 1.9W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 29.5A
- Reverse Transfer Capacitance (Crss)
- 44pF
- RDS(on)
- 9.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 58.4nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.8V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.18 g
Overview
This new generation N-Channel Enhancement Mode MOSFET is designed to minimize RDS(ON) and yet maintain superior switching performance. This device is ideal for use in Notebook battery power management and Load switch.
Applications
- Notebook battery power management
- Load switch
- Backlighting
- Power Management Functions
- DC - DC Converters
Key features
- 100% Unclamped Inductive Switch (UIS) Test in Production
- High Conversion Efficiency
- Low RDS(ON) – Minimizes On State Losses
- Low Input Capacitance
- Fast Switching Speed
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability
