DIODESDatasheet (PDF)

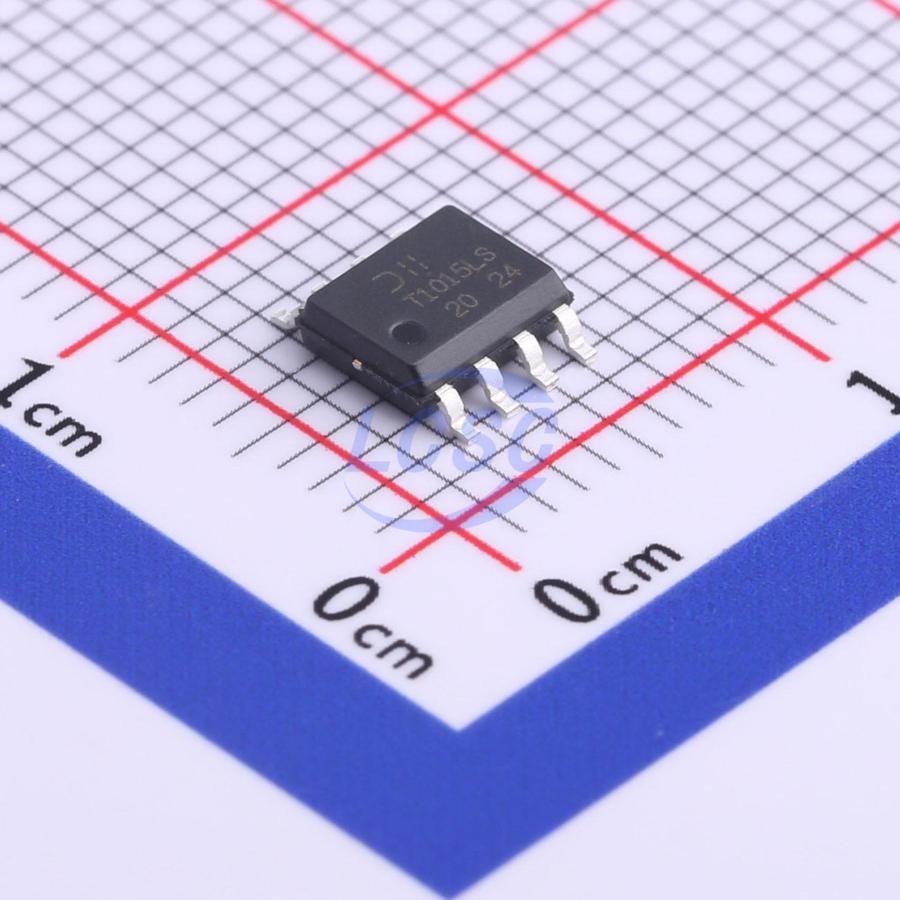

DMT10H015LSS-13
N-Channel 100V 8.3A 1.67W Surface Mount SO-8
SO-8ROHS3 CompliantActive
MOSFET N-CH 100V 8.3A SO-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMT10H015LSS-13
- Store part #
- C526581
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,446 in stock
#C526581
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹102.55 | ₹102.55 |
| 10+ | ₹86.37 | ₹863.70 |
| 30+ | ₹78.37 | ₹2,351.10 |
| 100+ | ₹70.38 | ₹7,038.00 |
| 500+ | ₹65.63 | ₹32,815.00 |
| 1,000+ | ₹63.27 | ₹63,270.00 |
1 × ₹102.55
₹102.55
excl. GST
₹121.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMT10H015LSS-13
₹102.55 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 261pF
- Current - Continuous Drain(Id)
- 8.3A
- Ciss-Input Capacitance
- 1.871nF
- Pd - Power Dissipation
- 1.67W
- Reverse Transfer Capacitance (Crss)
- 7pF
- RDS(on)
- 12mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 33.3nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.253 g
Overview
This next-generation N-channel enhancement-mode MOSFET is designed to minimize RDS(ON) while maintaining excellent switching performance. The device is ideal for notebook battery power management and load switching applications.
Applications
- Laptop battery power management
- Load switch
- Backlight illumination
- Power management
- DC-DC converter
Key features
- 100% UIS tested in production
- High conversion efficiency
- Low RDS(ON) — minimizes conduction losses
- Low input capacitance
- Fast switching speed
- Fully lead-free and RoHS compliant
- Halogen- and antimony-free, "Green" device
- AEC-Q101 qualified, high reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BRCS4294SC#C22449009BLUE ROCKET · SOP-8 | BLUE ROCKET | SOP-8 | 80 | ₹61.35 · 80 in stock | View |
 | SI4190ADY-T1-GE3#C141516VISHAY · SOIC-8 | VISHAY | SOIC-8 | 57 | ₹156.37 · 57 in stock | View |
 | CRSE120N10L2#C497211CRMICRO · SOIC-8 | CRMICRO | SOIC-8 | 5 | ₹49.93 · 5 in stock | View |
 | DOS11N10#C46598093DOINGTER · SOP-8 | DOINGTER | SOP-8 | 2,995 | ₹23.69 · 2,995 in stock | View |
 | WSP10N10#C2827250Winsok Semicon · SOP-8 | Winsok Semicon | SOP-8 | 2,064 | ₹55.39 · 2,064 in stock | View |
