DIODESDatasheet (PDF)

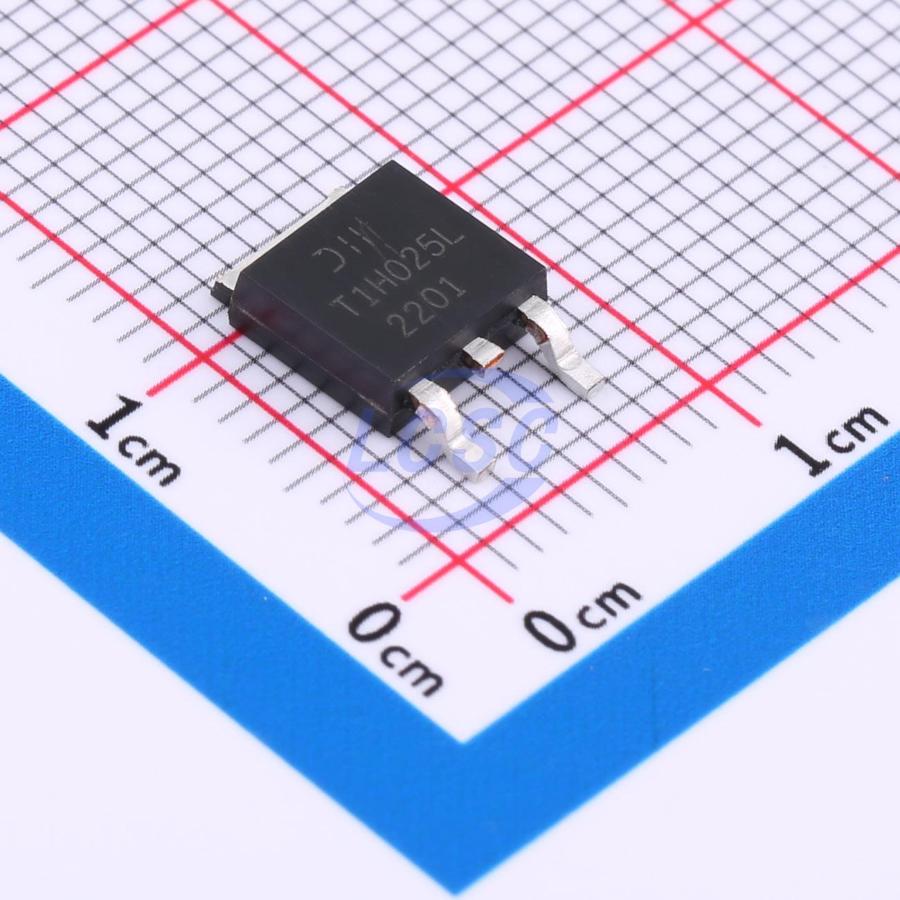

DMT10H025LK3-13
N-Channel 100V 47.2A 83W Surface Mount TO-252(DPAK)
TO-252(DPAK)ROHS3 CompliantActive
MOSFET N-CH 100V 47.2A TO-252(DPAK)
- Manufacturer
- DIODES
- Manufacturer part #
- DMT10H025LK3-13
- Store part #
- C7264703
- Package / case
- TO-252(DPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,092 in stock
#C7264703
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹43.50 | ₹43.50 |
| 10+ | ₹42.64 | ₹426.40 |
| 30+ | ₹41.99 | ₹1,259.70 |
| 100+ | ₹41.34 | ₹4,134.00 |
1 × ₹43.50
₹43.50
excl. GST
₹51.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMT10H025LK3-13
₹43.50 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 263pF
- Current - Continuous Drain(Id)
- 47.2A
- Ciss-Input Capacitance
- 1.477nF
- Pd - Power Dissipation
- 83W
- Reverse Transfer Capacitance (Crss)
- 20pF
- RDS(on)
- 17.1mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 21nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.535 g
Overview
This next-generation MOSFET features low on-resistance and fast switching characteristics, making it ideal for high-efficiency power management applications.
Applications
- Power management functions
- DC-DC converter
- Backlight source
Key features
- 100% unclamped inductive switching tested — ensures greater reliability and durability in end applications
- Low RDS(ON) — minimizes power loss
- Low QG — minimizes switching loss
- Lead-free finish; RoHS compliant
- Halogen- and antimony-free; "Green" device
- AEC-Q101 qualified for high reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSU0056#C22359253HUASHUO · TO-252-2L | HUASHUO | TO-252-2L | 1,725 | ₹23.62 · 1,725 in stock | View |
 | SP010N18GTH#C22466806Siliup · TO-252 | Siliup | TO-252 | 505 | ₹18.11 · 505 in stock | View |
 | DMTH10H025LK3Q-13#C6540309DIODES · TO-252(DPAK) | DIODES | TO-252(DPAK) | 5 | ₹195.05 · 5 in stock | View |
 | WSF70N10G#C47116177Winsok Semicon · TO-252-2L | Winsok Semicon | TO-252-2L | 401 | ₹63.08 · 401 in stock | View |
| DMTH10H025LK3-13#C6225464DIODES · TO-252(DPAK) | DIODES | TO-252(DPAK) | 3 | ₹62.27 · 3 in stock | View | |
