DIODESDatasheet (PDF)

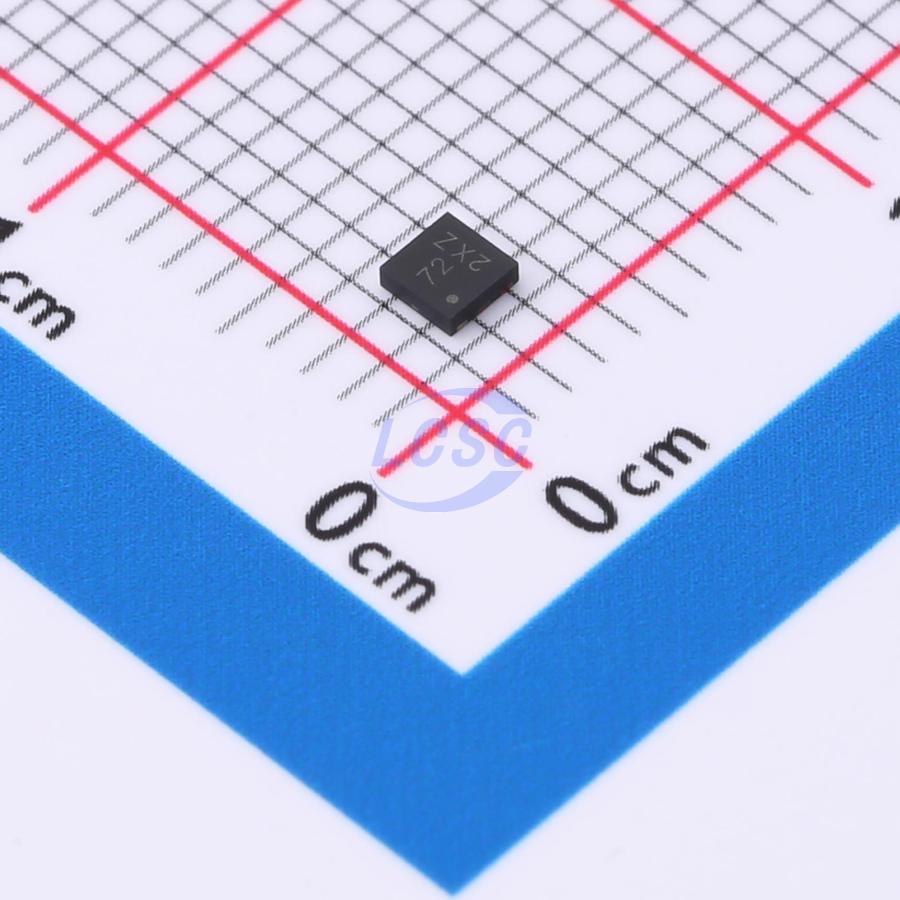

DMT10H072LFDFQ-7
N-Channel 100V 4A 800mW Surface Mount UDFN2020-6
UDFN2020-6ROHS3 CompliantActive
MOSFET N-CH 100V 4A UDFN2020-6
- Manufacturer
- DIODES
- Manufacturer part #
- DMT10H072LFDFQ-7
- Store part #
- C5221855
- Package / case
- UDFN2020-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
729 in stock
#C5221855
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹85.61 | ₹85.61 |
| 10+ | ₹68.02 | ₹680.20 |
| 30+ | ₹59.32 | ₹1,779.60 |
| 100+ | ₹50.63 | ₹5,063.00 |
| 500+ | ₹45.63 | ₹22,815.00 |
| 1,000+ | ₹42.81 | ₹42,810.00 |
1 × ₹85.61
₹85.61
excl. GST
₹101.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMT10H072LFDFQ-7
₹85.61 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 89.3pF
- Current - Continuous Drain(Id)
- 4A
- Ciss-Input Capacitance
- 228pF
- Pd - Power Dissipation
- 800mW
- Reverse Transfer Capacitance (Crss)
- 2.5pF
- RDS(on)
- 47mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 4.5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.033 g
Overview
This MOSFET is designed to meet the stringent requirements of automotive applications. It is AEC-Q101 qualified with PPAP support, making it ideal for: Power Management Functions - Battery-powered systems and solid-state relays - Drivers: relays, solenoids, lamps, hammers, displays, memories, transistors, etc.
Applications
- Power management functions
- Battery-powered systems and solid-state relays
- Drivers: relays, solenoids, lamps, hammers, displays, memories, transistors, etc.
Key features
- 0.6mm ultra-thin profile for low-profile applications
- 4mm² PCB footprint
- Low on-resistance
- 100% UIS tested in production for enhanced reliability and durability in end applications
- Fully lead-free, fully RoHS compliant
- Halogen- and antimony-free "green" device
- Suitable for automotive applications requiring specific change control; AEC-Q101 qualified, PPAP capable, manufactured in IATF16949:2016 certified facility
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSCB0010E#C53243993HUASHUO · DFN-6L(2x2) | HUASHUO | DFN-6L(2x2) | 1,210 | ₹29.12 · 1,210 in stock | View |
 | AON2290#C5451855AOS · DFN2x2B | AOS | DFN2x2B | 2,919 | ₹62.14 · 2,919 in stock | View |
| CSD19538Q2T#C2859729TI · WSON-6(2x2) | TI | WSON-6(2x2) | 220 | ₹113.86 · 220 in stock | View | |
 | RHMN2902#C55863498RHM · DFN-6(2x2) | RHM | DFN-6(2x2) | 5,000 | ₹17.94 · 5,000 in stock | View |
 | DMT12H060LFDF-7#C5711753DIODES · UDFN2020-6 | DIODES | UDFN2020-6 | 19 | ₹104.62 · 19 in stock | View |
