HXY MOSFETDatasheet (PDF)

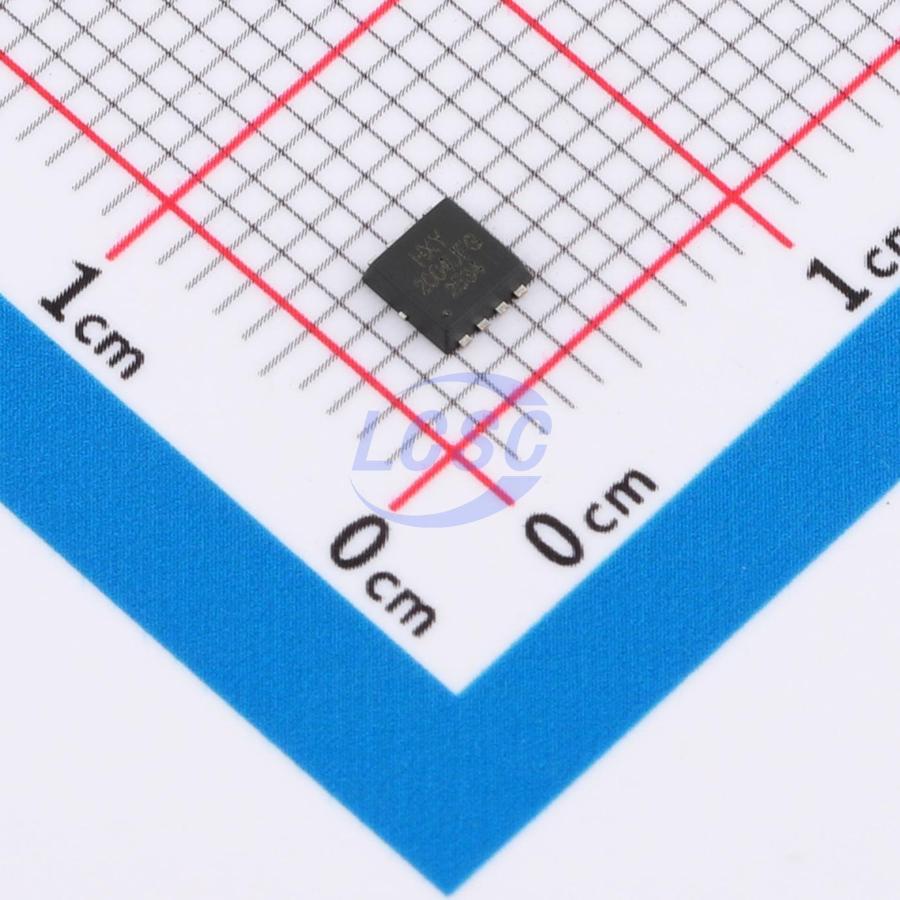

DMT2004UFG-13-HXY
46W 30V 70A 3.5mΩ@10V 1 N-channel N-Channel DFN-8L(3x3) Single FETs, MOSFETs
DFN-8L(3x3)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- DMT2004UFG-13-HXY
- Store part #
- C51949179
- Package / case
- DFN-8L(3x3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
145 in stock
#C51949179
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹70.87 | ₹70.87 |
| 10+ | ₹56.70 | ₹567.00 |
| 30+ | ₹50.70 | ₹1,521.00 |
| 100+ | ₹43.17 | ₹4,317.00 |
| 500+ | ₹39.74 | ₹19,870.00 |
| 1,000+ | ₹37.81 | ₹37,810.00 |
1 × ₹70.87
₹70.87
excl. GST
₹83.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
DMT2004UFG-13-HXY
₹70.87 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 277pF
- Ciss-Input Capacitance
- 2.088nF
- Pd - Power Dissipation
- 46W
- Operating Temperature
- -55℃~+175℃
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 70A
- Reverse Transfer Capacitance (Crss)
- 209pF
- RDS(on)
- 3.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 20nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.061 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMT2004UFV-13-HXY#C51949180HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 135 | ₹50.57 · 135 in stock | View |
 | SISA14BDN-T1-GE3-HXY#C51949296HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 146 | ₹76.24 · 146 in stock | View |
 | DMT35M7LFV-13-HXY#C51949300HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 112 | ₹77.54 · 112 in stock | View |
 | BSZ0506NSATMA1-HXY#C53262972HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 74 | ₹73.45 · 74 in stock | View |
 | DMN3009SFG-7-HXY#C53262983HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 488 | ₹72.86 · 488 in stock | View |
