DIODESDatasheet (PDF)

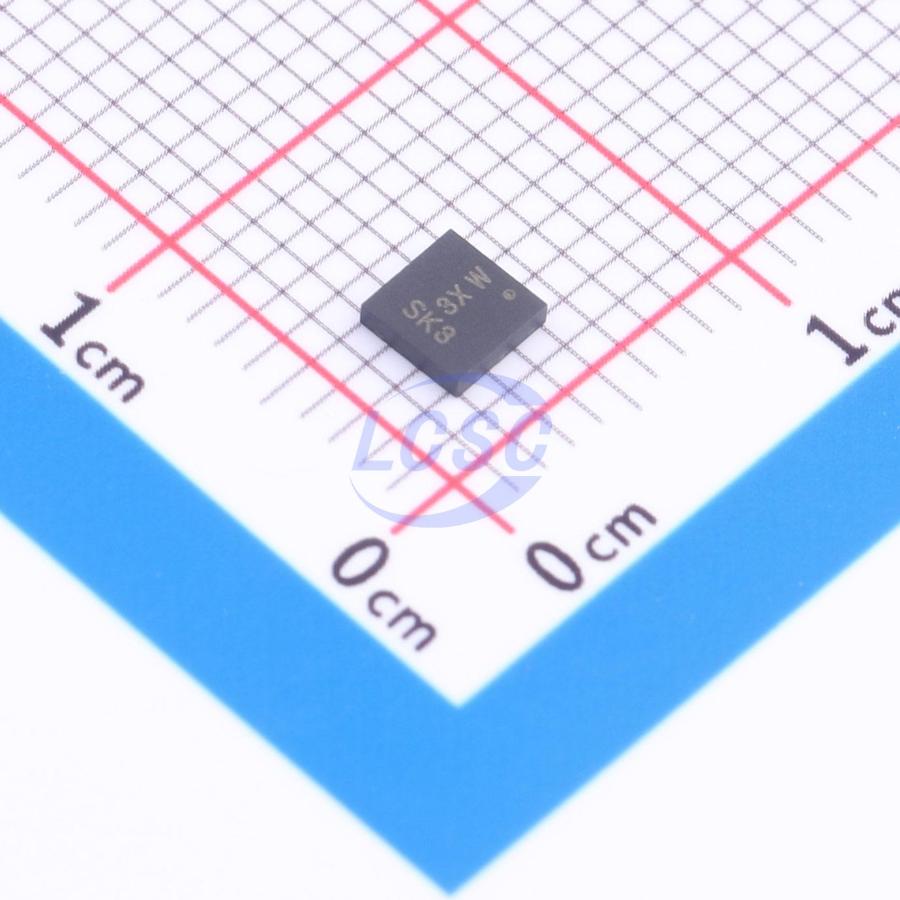

DMT32M4LFG-7
30V 1.1W 1.7mΩ@10V 1 N-channel PowerDI3333-8 Single FETs, MOSFETs RoHS
PowerDI3333-8ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- DMT32M4LFG-7
- Store part #
- C6832266
- Package / case
- PowerDI3333-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
150 in stock
#C6832266
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹162.93 | ₹162.93 |
| 10+ | ₹160.56 | ₹1,605.60 |
| 30+ | ₹158.84 | ₹4,765.20 |
| 100+ | ₹157.34 | ₹15,734.00 |
1 × ₹162.93
₹162.93
excl. GST
₹192.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
DMT32M4LFG-7
₹162.93 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 30A;100A
- Ciss-Input Capacitance
- 4.366nF
- Pd - Power Dissipation
- 1.1W
- RDS(on)
- 1.7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 67nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.594 g
Overview
This MOSFET is designed to minimize on-resistance R<sub>DS(ON)</sub> while maintaining superior switching performance, making it ideal for high-efficiency power management applications.
Applications
- Backlighting
- Power management functions
- DC-DC converter
Key features
- Low RDS(ON) — minimizes conduction losses
- Excellent Qgd × RDS(ON) figure of merit (FOM)
- Advanced technology for DC-DC converters
- Small, thermally efficient package enables higher-density end products
- Occupies only 33% of the board area of an SO-8 package, enabling smaller end products
- 100% UIS (avalanche) rated and tested
- Lead-free finish; RoHS compliant
- Halogen- and antimony-free. "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SISS50DN-T1-GE3#C5900155VISHAY · PowerPAK1212-8S | VISHAY | PowerPAK1212-8S | 3 | ₹76.06 · 3 in stock | View |
| NVTFS002N04CLTAG#C900501onsemi · WDFN-8(3.3x3.3) | onsemi | WDFN-8(3.3x3.3) | 6 | ₹406.19 · 6 in stock | View | |
 | FDMC8010DC#C555489onsemi · PQFN-8(3.3x3.3) | onsemi | PQFN-8(3.3x3.3) | 6,004 | ₹151.40 · 6,004 in stock | View |
 | NVTFS4C05NTAG#C900513onsemi · WDFN-8(3.3x3.3) | onsemi | WDFN-8(3.3x3.3) | 10 | ₹192.38 · 10 in stock | View |
 | YD2R2TG-DSC#C55090561DOINGTER · TDFN-8DSC(3.3x3.3) | DOINGTER | TDFN-8DSC(3.3x3.3) | 4,723 | ₹75.33 · 4,723 in stock | View |
