DIODESDatasheet (PDF)

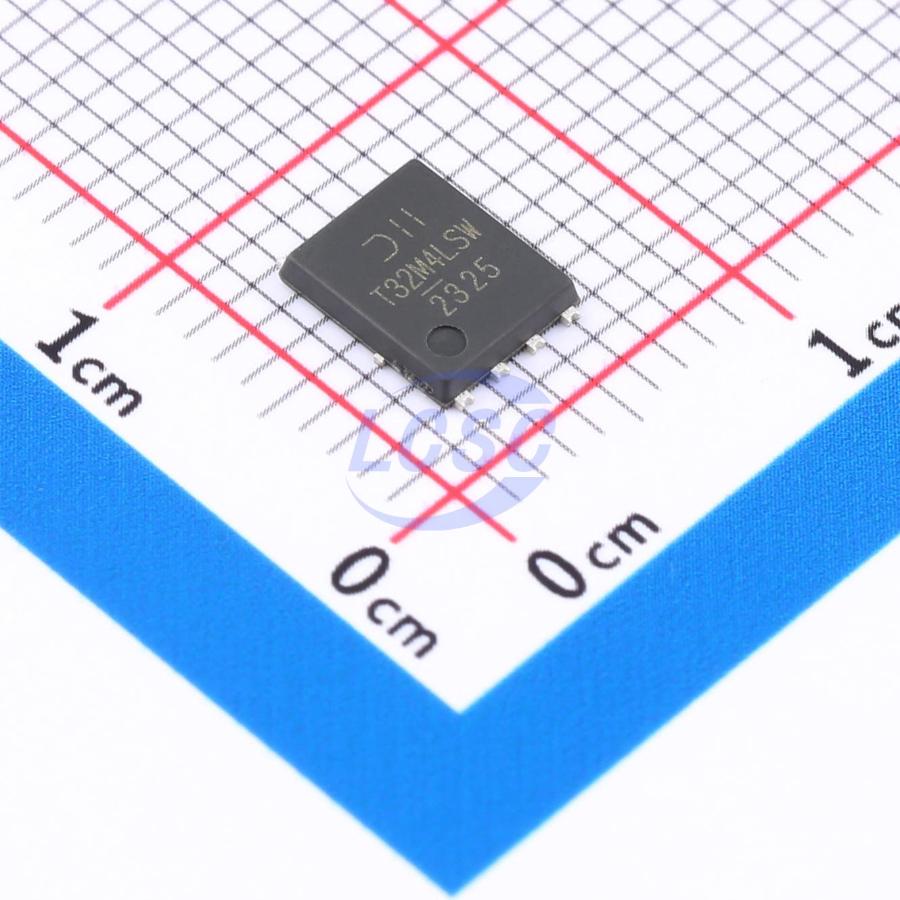

DMT32M4LPSW-13
30V 100A 1.7mΩ@10V 1 N-channel PowerDI5060-8 Single FETs, MOSFETs RoHS
PowerDI5060-8ROHS3 CompliantActive
MOSFET N-CH 30V 100A PowerDI5060-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMT32M4LPSW-13
- Store part #
- C6225446
- Package / case
- PowerDI5060-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C6225446
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹131.25 | ₹131.25 |
| 10+ | ₹128.21 | ₹1,282.10 |
| 30+ | ₹126.25 | ₹3,787.50 |
| 100+ | ₹124.30 | ₹12,430.00 |
1 × ₹131.25
₹131.25
excl. GST
₹154.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMT32M4LPSW-13
₹131.25 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 3.944nF
- Pd - Power Dissipation
- 2.3W;83W
- Reverse Transfer Capacitance (Crss)
- 186pF
- RDS(on)
- 1.7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 68nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.28 g
Overview
This next-generation MOSFET is designed to minimize on-resistance RDS(ON) while maintaining superior switching performance. The device is ideally suited for power management and load switching applications.
Applications
- DC-DC Converter
- Load Switch
Key features
- Thermally efficient package — ideal for low-temperature operation applications
- Package height <1.1mm — perfect for slim, lightweight applications
- High conversion efficiency
- Low on-resistance RDS(ON) — minimizes conduction losses
- Low input capacitance
- Fast switching speed
- Lead-free surface finish; RoHS compliant
- Halogen- and antimony-free. "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| DMTH32M5LPSQ-13#C5248939DIODES · PowerDI-5060-8 | DIODES | PowerDI-5060-8 | 5 | ₹137.96 · 5 in stock | View | |
 | AGMH035N10A#C5447826AGMSEMI · PDFN-8(5x6) | AGMSEMI | PDFN-8(5x6) | 26 | ₹119.60 · 26 in stock | View |
 | LWT1H04HD5#C54221170Lewa Micro · PDFN-8L(5x6) | Lewa Micro | PDFN-8L(5x6) | 4,272 | ₹105.60 · 4,272 in stock | View |
 | DMT4002LPS-13#C461792DIODES · PowerDI5060-8 | DIODES | PowerDI5060-8 | 48 | ₹408.38 · 48 in stock | View |
 | NTMFSC4D2N10MC-HXY#C51949334HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 77 | ₹417.09 · 77 in stock | View |
