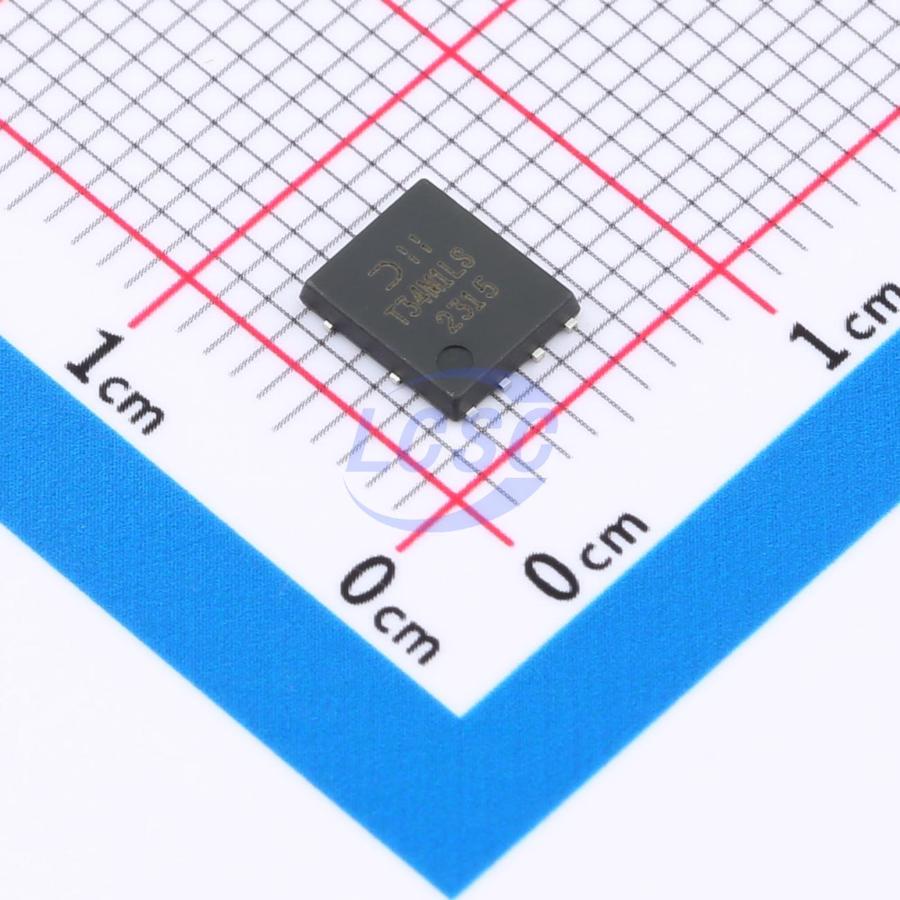

DMT34M1LPS-13
N-Channel 30V 100A 42W Surface Mount PowerDI5060-8
PowerDI5060-8ROHS3 CompliantActive
MOSFET N-CH 30V 100A PowerDI5060-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMT34M1LPS-13
- Store part #
- C6183738
- Package / case
- PowerDI5060-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C6183738
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹125.82 | ₹125.82 |
| 10+ | ₹103.01 | ₹1,030.10 |
| 30+ | ₹91.71 | ₹2,751.30 |
| 100+ | ₹80.41 | ₹8,041.00 |
| 500+ | ₹73.66 | ₹36,830.00 |
| 1,000+ | ₹70.20 | ₹70,200.00 |
1 × ₹125.82
₹125.82
excl. GST
₹148.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMT34M1LPS-13
₹125.82 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 2.242nF
- Pd - Power Dissipation
- 42W
- Reverse Transfer Capacitance (Crss)
- 217pF
- RDS(on)
- 3.2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 39nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.171 g
Overview
This MOSFET is designed to minimize the on - state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- Backlighting
- Power Management Functions
- DC - DC Converters
Key features
- Low RDS(ON) – Minimizes On - State Losses
- Excellent Q9d×RDS(ON) Product (FOM)
- Advanced Technology for DC - DC Converters Small Form Factor Thermally Efficient Package Enables Higher Density End Products
- 100% Unclamped Inductive Switching – Ensures More Reliability
- Lead - Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NP100N03D6-N-G#C2991148NATLINEAR · PDFN-8(5x5.8) | NATLINEAR | PDFN-8(5x5.8) | 4,520 | ₹18.75 · 4,520 in stock | View |
 | JSM045N06QG5L#C55112061JSMSEMI · DFN-8L(5x6) | JSMSEMI | DFN-8L(5x6) | 782 | ₹64.62 · 782 in stock | View |
 | NTMFS4C03NT1G-MS#C17702949MSKSEMI · DFN5x6-8L | MSKSEMI | DFN5x6-8L | 118 | ₹74.96 · 118 in stock | View |
 | AONS32304#C17702950MSKSEMI · DFN5x6-8L | MSKSEMI | DFN5x6-8L | 3,837 | ₹56.12 · 3,837 in stock | View |
 | AON6312-MS#C17702951MSKSEMI · DFN5x6-8L | MSKSEMI | DFN5x6-8L | 5,810 | ₹50.46 · 5,810 in stock | View |
