DIODESDatasheet (PDF)

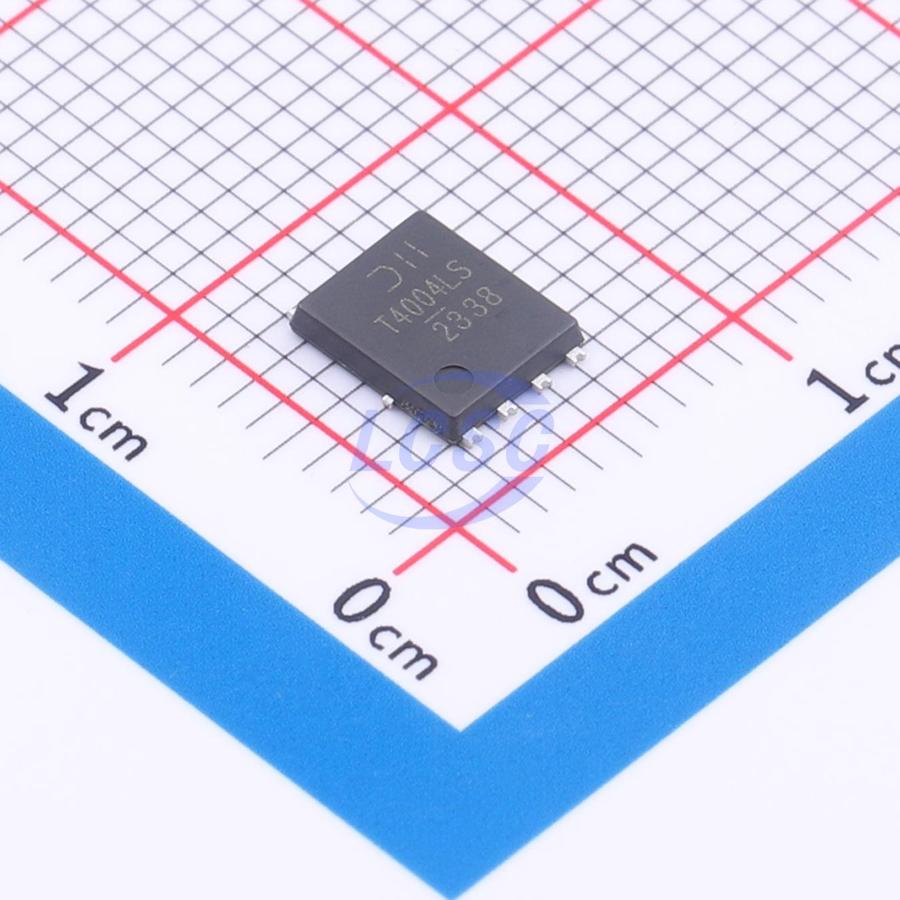

DMT4004LPS-13
40V 90A 138W 2.5mΩ@10V 1 N-channel PowerDI5060-8 Single FETs, MOSFETs RoHS
PowerDI5060-8ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- DMT4004LPS-13
- Store part #
- C5245418
- Package / case
- PowerDI5060-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C5245418
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹178.19 | ₹178.19 |
| 10+ | ₹175.18 | ₹1,751.80 |
| 30+ | ₹173.25 | ₹5,197.50 |
| 100+ | ₹171.32 | ₹17,132.00 |
1 × ₹178.19
₹178.19
excl. GST
₹210.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMT4004LPS-13
₹178.19 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 90A
- Ciss-Input Capacitance
- 4.508nF
- Pd - Power Dissipation
- 138W
- Reverse Transfer Capacitance (Crss)
- 104pF
- RDS(on)
- 2.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 82.2nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.393 g
Overview
This MOSFET is designed to minimize on-resistance R<sub>DS(ON)</sub> while maintaining excellent switching performance, making it ideal for high-efficiency power management applications.
Applications
- Engine Management Systems
- Body Control Electronics
- DC-DC Converters
Key features
- 100% unclamped inductive switching tested — enhanced reliability and durability for end applications
- Low R<sub>DS(ON)</sub> — minimized power dissipation
- Low Qg — minimized switching losses
- Lead-free finish; RoHS compliant
- Halogen- and antimony-free. "Green" device
- JEDEC-qualified (as referenced in AEC-Q) for high reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMTH4004LPS-13#C5245447DIODES · PowerDI5060-8 | DIODES | PowerDI5060-8 | 6 | ₹281.01 · 6 in stock | View |
| DMTH6004LPS-13#C6021940DIODES · PowerDI5060-8 | DIODES | PowerDI5060-8 | 100 | ₹139.33 · 100 in stock | View | |
 | MOT4592HG#C54938504MOT · PDFN-8L(5x6) | MOT | PDFN-8L(5x6) | 50 | ₹130.63 · 50 in stock | View |
 | SFS06R025GF#C49005839ORIENTAL SEMI · PDFN-8(5x6) | ORIENTAL SEMI | PDFN-8(5x6) | 239 | ₹76.28 · 239 in stock | View |
 | BSC028N06LS3GATMA1-JSM#C55106948JSMSEMI · DFN-8L(5x6) | JSMSEMI | DFN-8L(5x6) | 988 | ₹102.77 · 988 in stock | View |
