DIODESDatasheet (PDF)

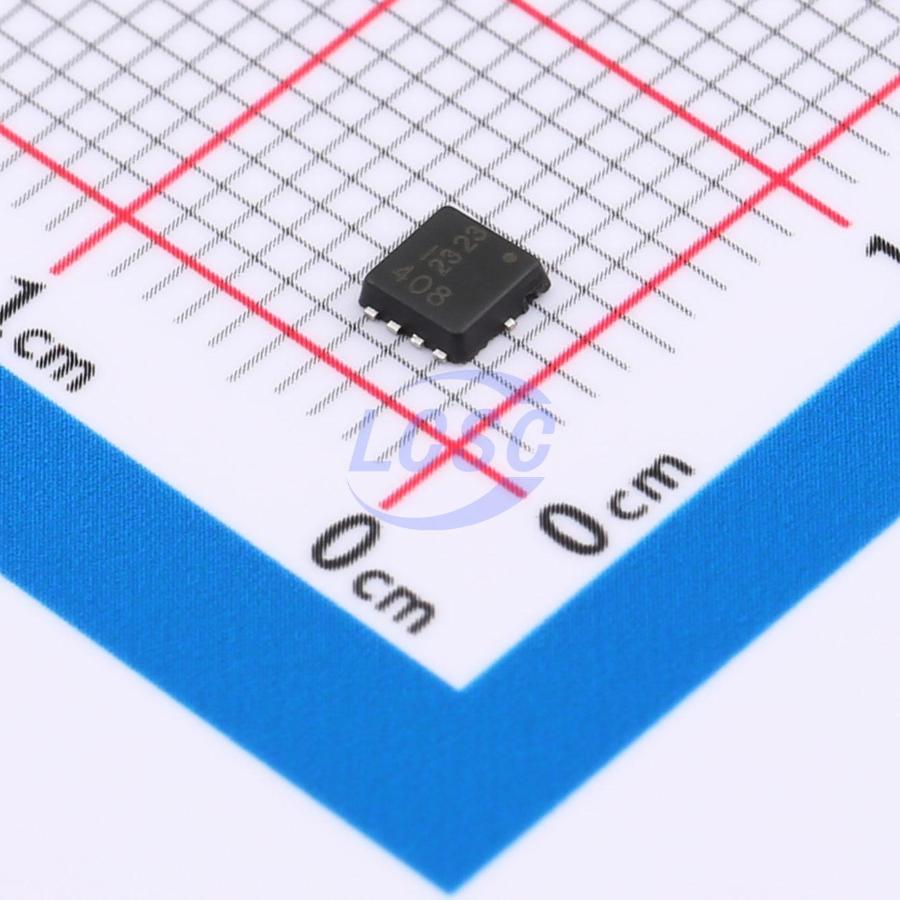

DMT4008LFV-7
N-Channel 40V 54.8A 1.9W Surface Mount PowerDI3333-8
PowerDI3333-8ROHS3 CompliantActive
MOSFET N-CH 40V 54.8A PowerDI3333-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMT4008LFV-7
- Store part #
- C6832271
- Package / case
- PowerDI3333-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
67 in stock
#C6832271
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹368.19 | ₹368.19 |
| 10+ | ₹326.07 | ₹3,260.70 |
| 30+ | ₹299.63 | ₹8,988.90 |
| 100+ | ₹272.76 | ₹27,276.00 |
| 500+ | ₹260.51 | ₹1,30,255.00 |
| 1,000+ | ₹255.14 | ₹2,55,140.00 |
1 × ₹368.19
₹368.19
excl. GST
₹434.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
DMT4008LFV-7
₹368.19 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 384pF
- Current - Continuous Drain(Id)
- 54.8A
- Ciss-Input Capacitance
- 1.179nF
- Pd - Power Dissipation
- 1.9W
- Reverse Transfer Capacitance (Crss)
- 42pF
- RDS(on)
- 6.5mΩ@10V;9.4mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 17.1nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.08 g
Overview
This next-generation MOSFET is designed to minimize on-resistance (RDS(ON)) while maintaining superior switching performance, making it ideal for high-efficiency power management applications.
Applications
- Power management functions
- DC-DC converter
Key features
- 100% unclamped inductive switching — ensuring greater reliability and durability in end applications
- Low on-resistance
- Low input capacitance
- Fully lead-free and fully RoHS compliant
- Halogen and antimony-free, "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | WSD4070DN33#C719095Winsok Semicon · DFN3X3-8L | Winsok Semicon | DFN3X3-8L | 8,076 | ₹47.40 · 8,076 in stock | View |
 | SDM56AG04LV#C29780698SINEDEVICE · PDFN3.3x3.3-8L | SINEDEVICE | PDFN3.3x3.3-8L | 2 | ₹77.41 · 2 in stock | View |
 | CSD18543Q3AT#C112374TI · VSONP-8(3.3x3.3) | TI | VSONP-8(3.3x3.3) | 31 | ₹197.51 · 31 in stock | View |
 | NVTFS004N04CTAG#C900503onsemi · WDFN-8(3.3x3.3) | onsemi | WDFN-8(3.3x3.3) | 89 | ₹328.70 · 89 in stock | View |
 | YJQ62G06A#C2908529YANGJIE · DFN3333-8L | YANGJIE | DFN3333-8L | 13,700 | ₹59.46 · 13,700 in stock | View |
