DIODESDatasheet (PDF)

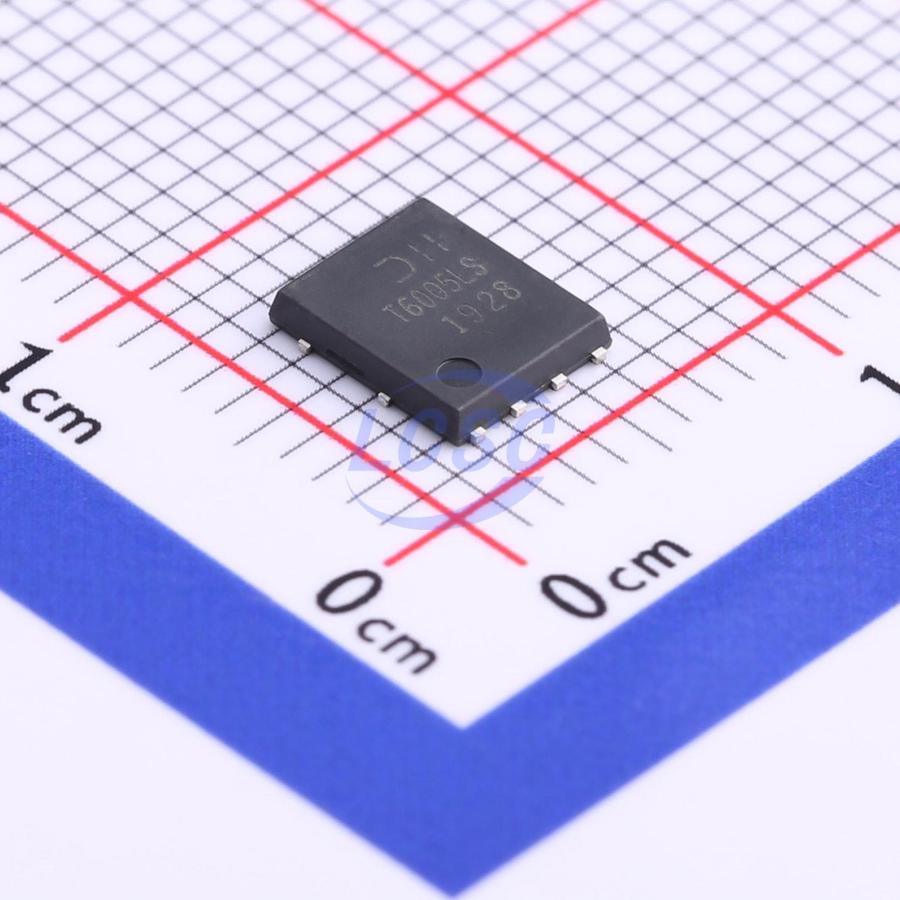

DMT6005LPS-13
N-Channel 60V 125A 125W Surface Mount DFN-8(5.1x6)
DFN-8(5.1x6)ROHS3 CompliantActive
MOSFET N-CH 60V 125A DFN-8(5.1x6)
- Manufacturer
- DIODES
- Manufacturer part #
- DMT6005LPS-13
- Store part #
- C780843
- Package / case
- DFN-8(5.1x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
809 in stock
#C780843
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹142.54 | ₹142.54 |
| 10+ | ₹117.13 | ₹1,171.30 |
| 30+ | ₹104.31 | ₹3,129.30 |
| 100+ | ₹91.70 | ₹9,170.00 |
| 500+ | ₹84.09 | ₹42,045.00 |
| 1,000+ | ₹80.40 | ₹80,400.00 |
1 × ₹142.54
₹142.54
excl. GST
₹168.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMT6005LPS-13
₹142.54 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 965.2pF
- Current - Continuous Drain(Id)
- 125A
- Ciss-Input Capacitance
- 2.962nF
- Pd - Power Dissipation
- 125W
- Reverse Transfer Capacitance (Crss)
- 59.8pF
- RDS(on)
- 3.5mΩ@10V;5mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 47.1nC@10V;23.1nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.184 g
Overview
This MOSFET is designed to minimize on-resistance RDS(ON) while maintaining excellent switching performance, making it ideal for high-efficiency power management applications.
Applications
- High-Frequency Switching Synchronous Rectification DC-DC Converter
Key features
- 100% unclamped inductive switching (UIS) tested during production — ensuring greater reliability and durability in end applications
- Low RDS(ON) — minimizing power dissipation
- Low QG — minimizing switching losses
- Lead-free finish; RoHS compliant
- Halogen- and antimony-free. "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSBA6048#C508828HUASHUO · PRPAK5x6-8L | HUASHUO | PRPAK5x6-8L | On request | ₹84.42 · 0 in stock | View |
| MX10T03EHP#C54623189Wuxi Maxinmicro · PDFN-8L(5x6) | Wuxi Maxinmicro | PDFN-8L(5x6) | 4,153 | ₹62.09 · 4,153 in stock | View | |
 | HSBA8076A#C51025854HUASHUO · PRPAK-8(5x6) | HUASHUO | PRPAK-8(5x6) | 600 | ₹132.00 · 600 in stock | View |
 | CMSA028N06#C7501166Cmos · DFN-8(5x6) | Cmos | DFN-8(5x6) | 3 | ₹95.79 · 3 in stock | View |
 | MGC036N10N#C49242759Megain · PDFN5x6-8 | Megain | PDFN5x6-8 | 142 | ₹68.45 · 142 in stock | View |
