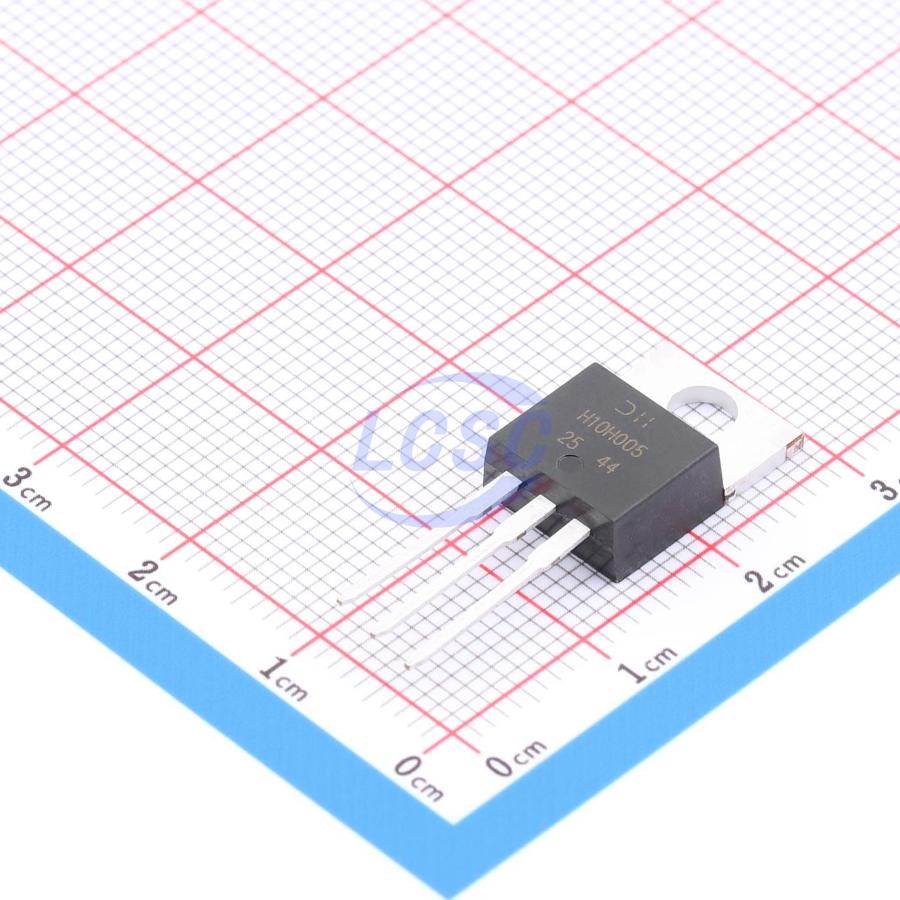

DIODES

DMTH10H005LCT

100V 140A 187W 5mΩ@10V TO-220AB Single FETs, MOSFETs RoHS

TO-220ABROHS CompliantActive

Manufacturer: DIODES
Manufacturer part #: DMTH10H005LCT
Store part #: C5245438
Package / case: TO-220AB
Category: Single FETs, MOSFETs
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

25 in stock

#C5245438

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
1+	₹1,208.60	₹1,208.60
10+	₹1,187.33	₹11,873.30
50+	₹1,173.13	₹58,656.50
100+	₹1,159.16	₹1,15,916.00

Quantity (min 1)

1 × ₹1,208.60

₹1,208.60

excl. GST

₹1,426.15 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 50 per tube

DMTH10H005LCT

₹1,208.60 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -55℃~+175℃
Drain to Source Voltage: 100V
Current - Continuous Drain(Id): 140A
Ciss-Input Capacitance: 3.688nF
Pd - Power Dissipation: 187W
Reverse Transfer Capacitance (Crss): 48pF
RDS(on): 5mΩ@10V
Gate Charge(Qg): 114nC@10V
Gate Threshold Voltage (Vgs(th)): 3.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 5.636 g

Overview

This next-generation MOSFET features low on-resistance and fast switching characteristics, making it ideal for high-efficiency power management applications.

Applications

Motor Control
Backlight Driving
DC-DC Converter
Power Management

Key features

Rated up to +175°C — suitable for high ambient temperature environments
100% unclamped inductive switching — ensures greater reliability and durability in end applications
Low input capacitance
High BVdss rating for power supply applications
Low input/output leakage current
Lead-free finish; RoHS compliant
Halogen- and antimony-free. "Green" device
