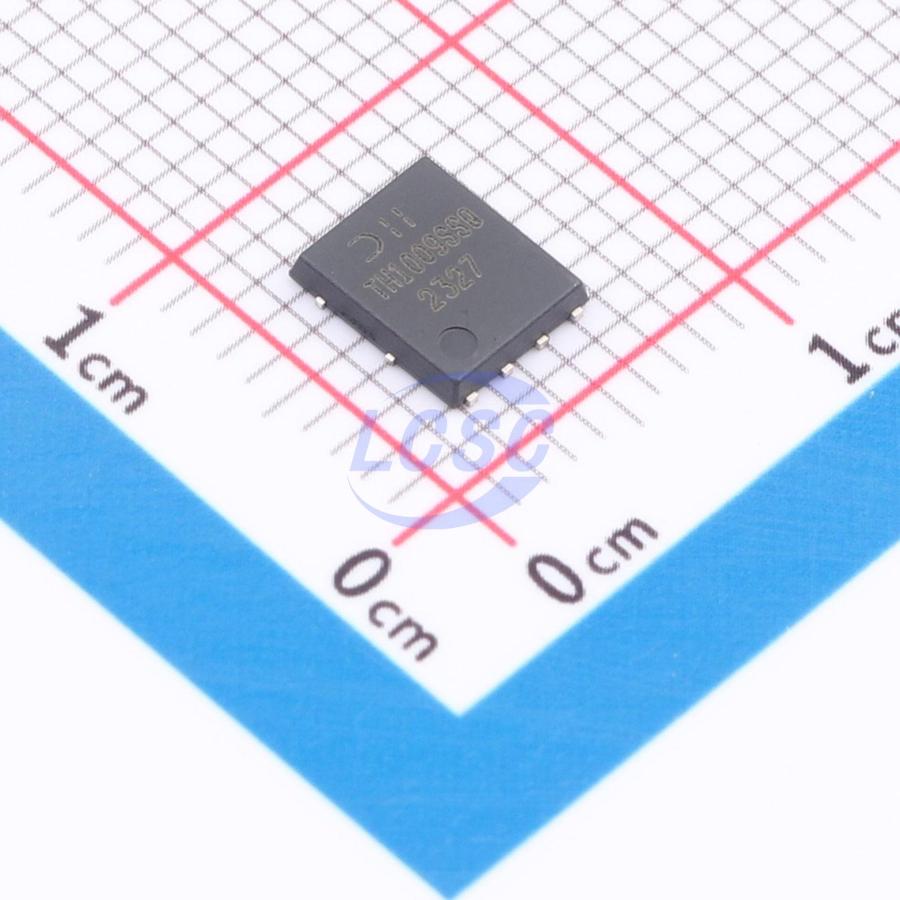

DMTH10H009SPSQ-13
N-Channel 100V 14A 86A 1.6W 100W Surface Mount PowerDI5060-8
PowerDI5060-8ROHS3 CompliantActive
MOSFET N-CH 100V 14A 86A PowerDI5060-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMTH10H009SPSQ-13
- Store part #
- C5624227
- Package / case
- PowerDI5060-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
29 in stock
#C5624227
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹186.78 | ₹186.78 |
| 10+ | ₹183.99 | ₹1,839.90 |
| 30+ | ₹182.27 | ₹5,468.10 |
| 100+ | ₹180.34 | ₹18,034.00 |
1 × ₹186.78
₹186.78
excl. GST
₹220.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMTH10H009SPSQ-13
₹186.78 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 14A;86A
- Ciss-Input Capacitance
- 2.085nF
- Pd - Power Dissipation
- 1.6W;100W
- Reverse Transfer Capacitance (Crss)
- 13pF
- RDS(on)
- 8.9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 30nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.276 g
Overview
This MOSFET is designed to meet the stringent requirements of automotive applications. It is qualified to AEC-Q101, supported by a PPAP and is ideal for use in: - Motor controls - DC-DC converters - Power management
Applications
- Motor Control - DC-DC Converter - Power Management
Key features
- Rated to +175°C – Ideal for High Ambient Temperature Environments
- 100% Unclamped Inductive Switching (UIS) Test in Production – Ensures More Reliable and Robust End Application
- Thermally Efficient Package - Cooler Running Applications
- High Conversion Efficiency
- Low RDS(ON) – Minimizes On - State Losses
- Low Input Capacitance
- Fast Switching Speed
- <1.1mm Package Profile – Ideal for Thin Applications (PowerDI)
- Lead - Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Suitable for automotive applications requiring specific change control; AEC - Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMTH10H009LPS-13#C5711774DIODES · PowerDI5060-8 | DIODES | PowerDI5060-8 | 25 | ₹206.76 · 25 in stock | View |
 | DMT10H010SPS-13#C6601863DIODES · PowerDI5060-8 | DIODES | PowerDI5060-8 | 36 | ₹189.80 · 36 in stock | View |
| SIDR5102EP-T1-RE3#C7363714VISHAY · SO-8DC | VISHAY | SO-8DC | 36 | ₹610.64 · 36 in stock | View | |
 | PJMG10H100HNDN#C51625754PJSEMI · PDFN-8L(5x6) | PJSEMI | PDFN-8L(5x6) | 197 | ₹62.99 · 197 in stock | View |
 | AGM15T13A#C5297525AGMSEMI · PDFN5x6-8L | AGMSEMI | PDFN5x6-8L | 810 | ₹158.06 · 810 in stock | View |
