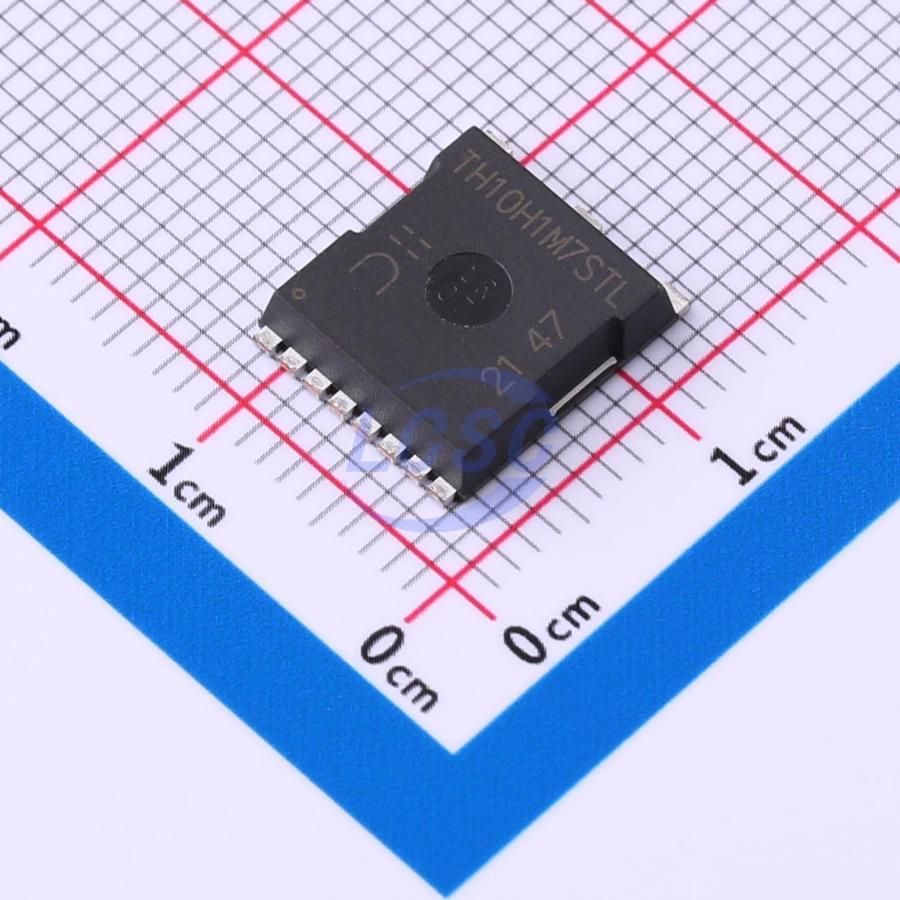

DMTH10H1M7STLWQ-13
N-Channel 100V 250A 250W Surface Mount PowerDI1012-8
PowerDI1012-8ROHS CompliantSold out at source
MOSFET N-CH 100V 250A PowerDI1012-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMTH10H1M7STLWQ-13
- Store part #
- C3279386
- Package / case
- PowerDI1012-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18 in stock
#C3279386
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,320.79 | ₹1,320.79 |
| 10+ | ₹1,145.90 | ₹11,459.00 |
| 30+ | ₹1,039.28 | ₹31,178.40 |
| 100+ | ₹949.90 | ₹94,990.00 |
1 × ₹1,320.79
₹1,320.79
excl. GST
₹1,558.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
DMTH10H1M7STLWQ-13
₹1,320.79 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 250A
- Ciss-Input Capacitance
- 9.871nF
- Pd - Power Dissipation
- 250W
- Reverse Transfer Capacitance (Crss)
- 58pF
- RDS(on)
- 2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 147nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Sold out at source
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.394 g
Overview
This MOSFET is designed to meet the stringent requirements of automotive applications. It is qualified to AEC - Q101, supported by a PPAP, and is ideal for use in: Motor Control, DC - DC Converters, Power Management.
Applications
- Motor Control
- DC - DC Converters
- Power Management
Key features
- Rated to +175℃
- Ideal for High Ambient Temperature Environments
- 100% Unclamped Inductive Switching (UIS) Test in Production - Ensures More Reliable and Robust End Application
- High Conversion Efficiency
- Low RDS(ON) - Minimizes On State Losses
- Wettable Flank for Improved Optical Inspection
- Lead - Free Finish, RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMTH10H1M7STLW-13#C5245443DIODES · PowerDI1012-8 | DIODES | PowerDI1012-8 | 158 | ₹323.21 · 158 in stock | View |
 | DMTH10H1M7STLWQ-13#C5248935DIODES · PowerDI-1012-8 | DIODES | PowerDI-1012-8 | On request | ₹327.55 · 0 in stock | View |
