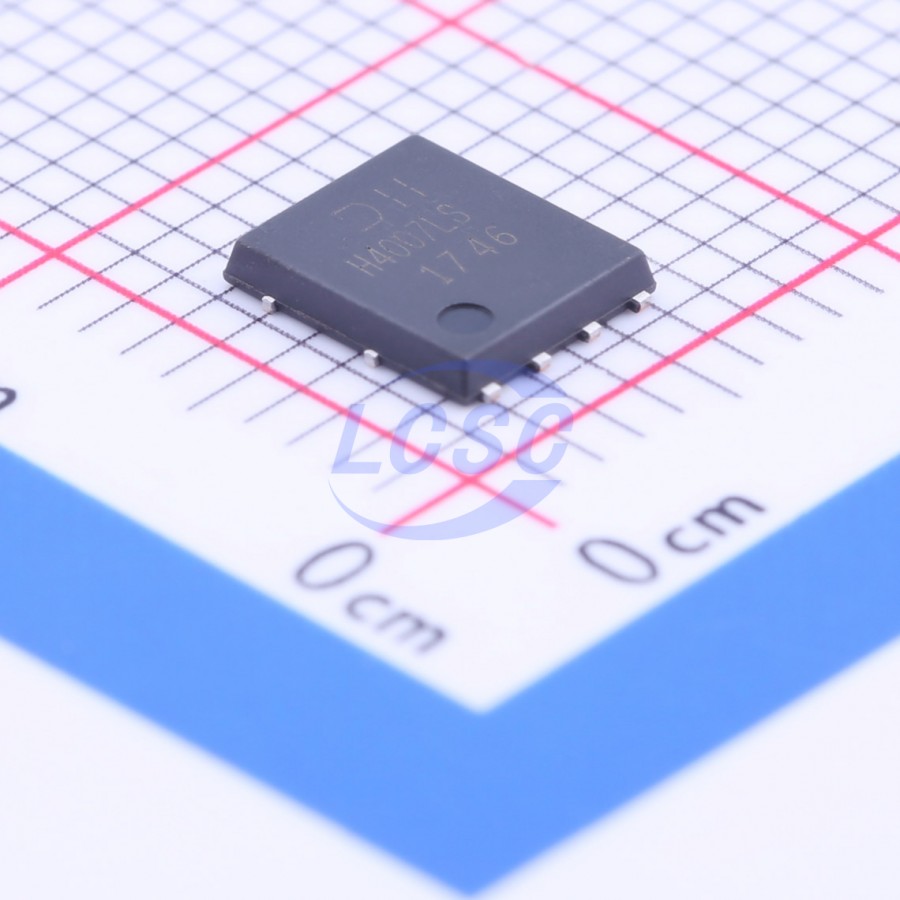

DMTH4007LPS-13
N-Channel 40V 100A 150W Surface Mount PowerDI5060-8
PowerDI5060-8ROHS3 CompliantActive
MOSFET N-CH 40V 100A PowerDI5060-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMTH4007LPS-13
- Store part #
- C211373
- Package / case
- PowerDI5060-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
47 in stock
#C211373
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹104.20 | ₹104.20 |
| 10+ | ₹84.82 | ₹848.20 |
| 30+ | ₹75.23 | ₹2,256.90 |
| 100+ | ₹65.65 | ₹6,565.00 |
| 500+ | ₹60.02 | ₹30,010.00 |
| 1,000+ | ₹57.10 | ₹57,100.00 |
1 × ₹104.20
₹104.20
excl. GST
₹122.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMTH4007LPS-13
₹104.20 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 1.895nF
- Pd - Power Dissipation
- 150W
- Reverse Transfer Capacitance (Crss)
- 20.9pF
- RDS(on)
- 9.8mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 29.1nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
This next-generation N-channel enhancement-mode MOSFET is designed to minimize RDS(ON) while maintaining superior switching performance.
Applications
- Laptop battery power management
- DC-DC converter
- Load switch
Key features
- Rated temperature up to +175℃ — for high ambient temperature environments
- 100% unclamped inductive switching — ensures more reliable and durable end applications
- Thermally efficient package — cooler operation
- High conversion efficiency
- Low RDS(ON) — minimizes conduction loss
- Low input capacitance
- Fast switching speed
- Package height less than 1.1mm — for slim and compact applications
- Lead-free finish; RoHS compliant
- Halogen- and antimony-free. "Green" device
- Automotive-grade datasheet available separately (DMTH4007LPSQ)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CSD19533Q5A-JSM#C55112068JSMSEMI · DFN-8L(5x6) | JSMSEMI | DFN-8L(5x6) | 913 | ₹77.08 · 913 in stock | View |
 | JSM080N10QG5H#C55112167JSMSEMI · DFN-8L(5x6) | JSMSEMI | DFN-8L(5x6) | 910 | ₹70.33 · 910 in stock | View |
 | PJMG10H100HNDN#C51625754PJSEMI · PDFN-8L(5x6) | PJSEMI | PDFN-8L(5x6) | 197 | ₹62.99 · 197 in stock | View |
 | KCY3008C#C55097922KIA Semicon Tech · DFN-8(5x6) | KIA Semicon Tech | DFN-8(5x6) | 45 | ₹25.57 · 45 in stock | View |
| BSC040N10NS5(ES)#C53199056ElecSuper · PDFN-8L(5x6) | ElecSuper | PDFN-8L(5x6) | 4,991 | ₹102.90 · 4,991 in stock | View | |
