DIODESDatasheet (PDF)

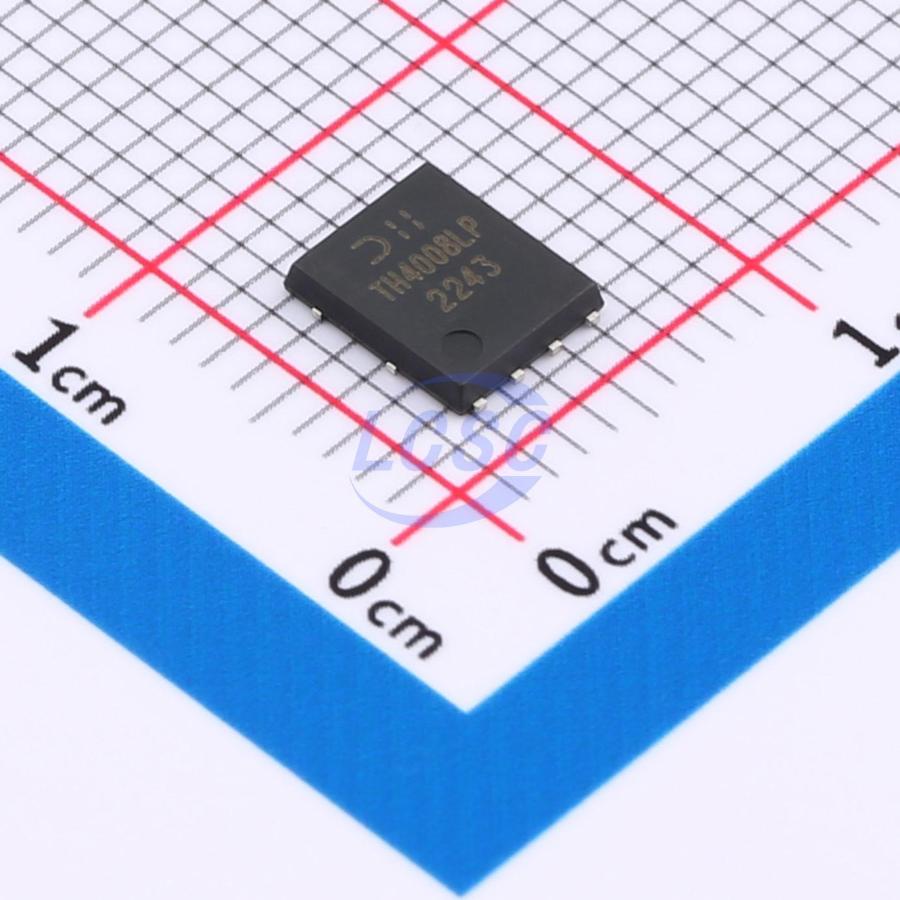

DMTH4008LPS-13
N-Channel 40V 64.8A 56.5W Surface Mount PowerDI5060-8
PowerDI5060-8ROHS3 CompliantActive
MOSFET N-CH 40V 64.8A PowerDI5060-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMTH4008LPS-13
- Store part #
- C461120
- Package / case
- PowerDI5060-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,554 in stock
#C461120
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹113.43 | ₹113.43 |
| 10+ | ₹91.71 | ₹917.10 |
| 30+ | ₹81.06 | ₹2,431.80 |
| 100+ | ₹70.20 | ₹7,020.00 |
| 500+ | ₹63.89 | ₹31,945.00 |
| 1,000+ | ₹60.63 | ₹60,630.00 |
1 × ₹113.43
₹113.43
excl. GST
₹133.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMTH4008LPS-13
₹113.43 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 322pF
- Current - Continuous Drain(Id)
- 64.8A
- Ciss-Input Capacitance
- 1.088nF
- Pd - Power Dissipation
- 56.5W
- Reverse Transfer Capacitance (Crss)
- 27pF
- RDS(on)
- 7.3mΩ@10V;10mΩ@5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 7.4nC@4.5V;15.3nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.257 g
Overview
This MOSFET is designed to minimize on-resistance RDS(ON) while maintaining excellent switching performance, making it ideal for high-efficiency power management applications.
Applications
- Brushless DC (BLDC) motors
- DC-DC converters
- Load switches
Key features
- Rated temperature up to +175℃, suitable for high ambient temperature environments
- 100% unclamped inductive switching tested in production, ensuring greater reliability and durability in end applications
- Low RDS(ON) to minimize conduction losses
- Low input capacitance
- Fast switching speed
- Lead-free finish, RoHS compliant
- Halogen- and antimony-free, "green" device
- Device complies with JEDEC standards (as referenced in AEC-Q) for high reliability
- Automotive-grade product covered in a separate datasheet (DMTH4008LPSQ)
