DIODESDatasheet (PDF)

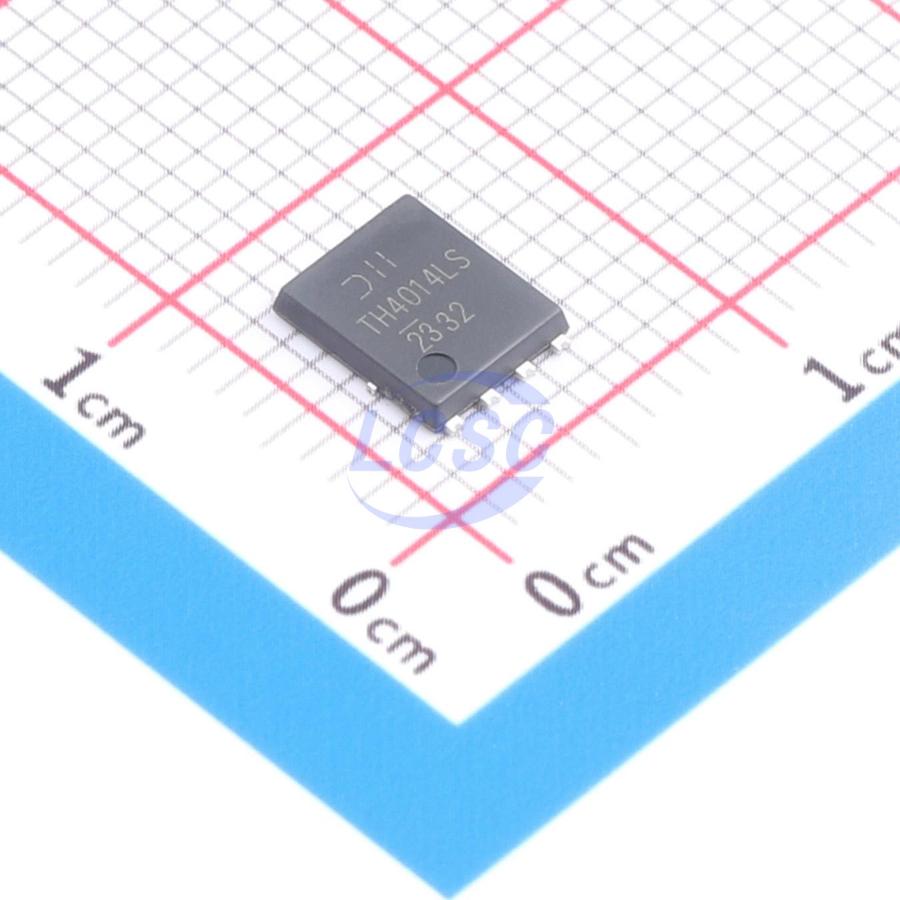

DMTH4014LPSWQ-13
4W 40V 43.5A 10.8mΩ@10V 1 N-channel N-Channel PowerDI-5060-8 Single FETs, MOSFETs RoHS
PowerDI-5060-8ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- DMTH4014LPSWQ-13
- Store part #
- C5248945
- Package / case
- PowerDI-5060-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C5248945
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹241.17 | ₹241.17 |
| 10+ | ₹237.52 | ₹2,375.20 |
| 30+ | ₹235.15 | ₹7,054.50 |
| 100+ | ₹232.78 | ₹23,278.00 |
1 × ₹241.17
₹241.17
excl. GST
₹284.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMTH4014LPSWQ-13
₹241.17 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 225pF
- Ciss-Input Capacitance
- 750pF
- Pd - Power Dissipation
- 4W
- Operating Temperature
- -55℃~+175℃
- Configuration
- Standalone
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 43.5A
- Reverse Transfer Capacitance (Crss)
- 21pF
- RDS(on)
- 10.8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 11.2nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.316 g
Overview
This MOSFET is designed to meet the stringent requirements of automotive applications. It complies with AEC-Q101 and is backed by Production Part Approval Process (PPAP) support, making it ideal for: - High-frequency switching - Synchronous rectification - DC-DC converters
Applications
- High-frequency switching
- Synchronous rectification
- DC-DC converter
Key features
- Rated temperature up to +175°C, suitable for high ambient temperature environments
- 100% Unclamped Inductive Switching (UIS) tested during production for enhanced reliability and durability in end applications
- High conversion efficiency
- Low on-resistance RDS(ON) to minimize power dissipation
- Solderable leads for optical inspection
- Fast switching speed
- Low input capacitance
- Lead-free finish, RoHS compliant
- Halogen- and antimony-free "Green" device
- Suitable for automotive applications requiring specific change control; product is AEC-Q101 qualified, PPAP capable, and manufactured in an IATF 16949 certified facility
