DIODESDatasheet (PDF)

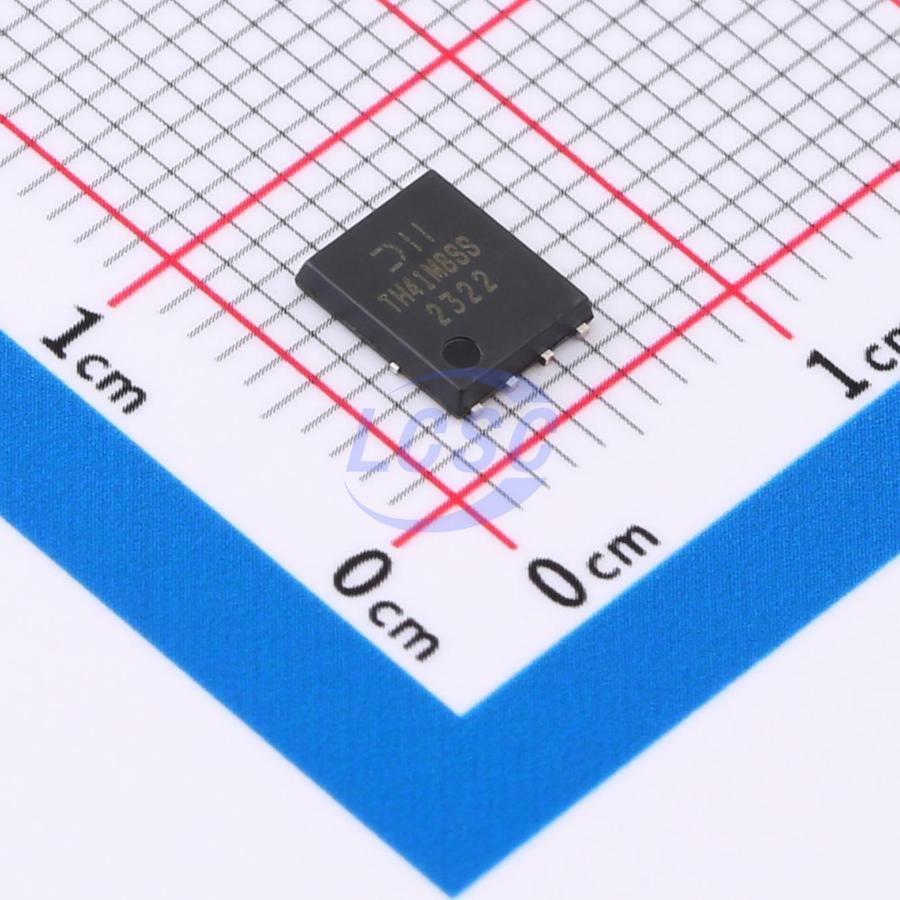

DMTH41M8SPSQ-13
N-Channel 40V 100A 150W Surface Mount PowerDI5060-8
PowerDI5060-8ROHS3 CompliantActive
MOSFET N-CH 40V 100A PowerDI5060-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMTH41M8SPSQ-13
- Store part #
- C5438917
- Package / case
- PowerDI5060-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C5438917
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹596.02 | ₹596.02 |
| 10+ | ₹587.43 | ₹5,874.30 |
| 30+ | ₹581.84 | ₹17,455.20 |
| 100+ | ₹576.03 | ₹57,603.00 |
1 × ₹596.02
₹596.02
excl. GST
₹703.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMTH41M8SPSQ-13
₹596.02 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 6.968nF
- Pd - Power Dissipation
- 150W
- Reverse Transfer Capacitance (Crss)
- 59pF
- RDS(on)
- 1.8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 79.5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.277 g
Overview
This MOSFET is designed to meet the stringent requirements of automotive applications. Compliant with AEC-Q101 and backed by PPAP support, it is ideally suited for the following applications: engine management systems, body control electronics, and DC-DC converters.
Applications
- Engine Management Systems - Body Control Electronics - DC-DC Converters
Key features
- Rated temperature up to +175°C, suitable for high ambient temperature environments
- 100% Unclamped Inductive Switching (UIS) testing during production for improved reliability and durability in end applications
- Thermally efficient package for lower operating temperatures in applications
- High conversion efficiency
- Low on-resistance RDS(ON) to minimize conduction losses
- Package height less than 1.1mm, suitable for slim and compact applications
- Lead-free surface finish, RoHS compliant
- Halogen- and antimony-free "green" device
- DMTH41M8SPSQ is intended for automotive applications requiring specific change control; the product is AEC-Q101 qualified, PPAP capable, and manufactured in an IATF 16949 certified facility.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPM4060ND56#C7472909TECH PUBLIC · DFN-8(5x6) | TECH PUBLIC | DFN-8(5x6) | 4,970 | ₹45.80 · 4,970 in stock | View |
 | BSC035N10NS5#C2832245Infineon · TDSON-8(5x6) | Infineon | TDSON-8(5x6) | 4,244 | ₹252.45 · 4,244 in stock | View |
 | BSC180N045#C22436726KTP · PDFN5x6-8L | KTP | PDFN5x6-8L | 1,466 | ₹53.73 · 1,466 in stock | View |
 | TPH2R608NH,L1Q(M#C5379811TOSHIBA · SOP-8-Advance(5x6) | TOSHIBA | SOP-8-Advance(5x6) | 26,274 | ₹160.23 · 26,274 in stock | View |
 | BSC030N08NS5#C501507Infineon · TDSON-8(5x6) | Infineon | TDSON-8(5x6) | 24,526 | ₹123.34 · 24,526 in stock | View |
