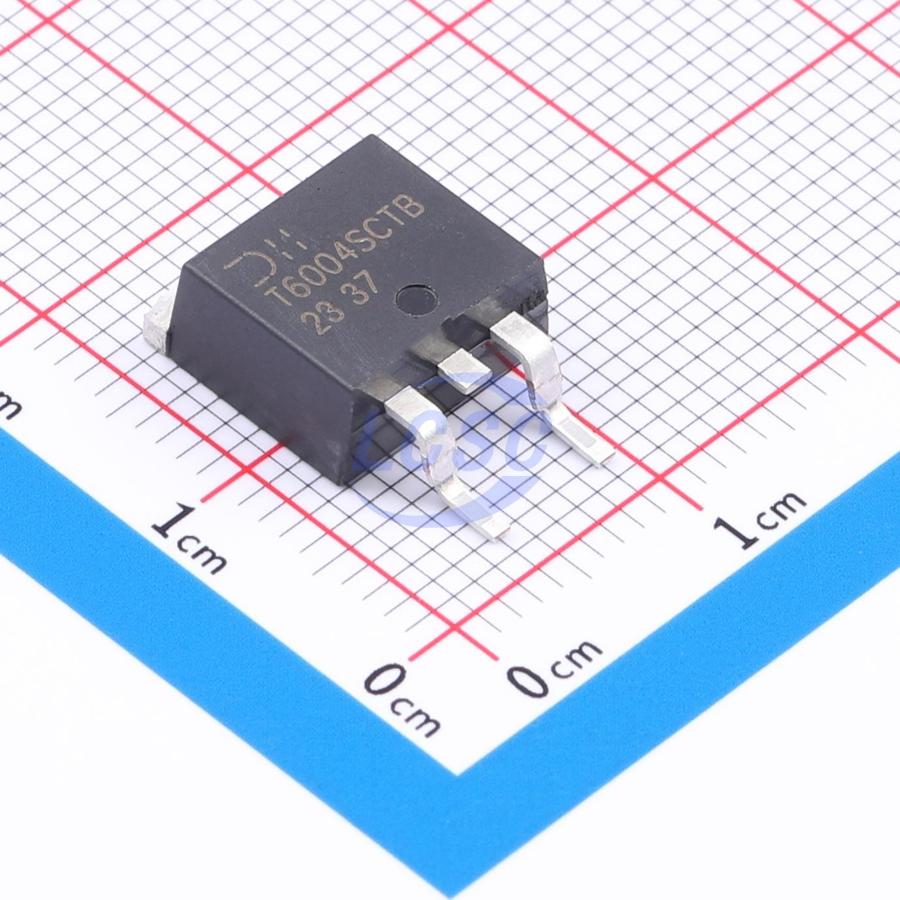

DMTH6004SCTB-13
60V 100A 3.4mΩ@10V 1 N-channel TO-263 Single FETs, MOSFETs RoHS
TO-263ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- DMTH6004SCTB-13
- Store part #
- C6183750
- Package / case
- TO-263
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C6183750
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹645.25 | ₹645.25 |
| 10+ | ₹637.30 | ₹6,373.00 |
| 30+ | ₹631.92 | ₹18,957.60 |
| 100+ | ₹626.55 | ₹62,655.00 |
1 × ₹645.25
₹645.25
excl. GST
₹761.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
DMTH6004SCTB-13
₹645.25 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 4.556nF
- Pd - Power Dissipation
- 4.7W;136W
- RDS(on)
- 3.4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 95.4nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.36 g
Overview
This next-generation MOSFET features low on-resistance and fast switching characteristics, making it ideal for high-efficiency power management applications.
Applications
- Engine management systems
- Body control electronics
- DC-DC converters
Key features
- Rated up to +175°C for high ambient temperature environments
- 100% unclamped inductive switching for enhanced reliability and durability in end applications
- Low RDS(ON) to minimize power loss
- Low Qg to minimize switching loss
- Lead-free plating, RoHS compliant
- Halogen- and antimony-free "green" device
- AEC-Q101 qualified for high reliability
- Automotive-grade variant (DMTH6004SCTBQ) available with separate datasheet
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 120N10#C22466870GOODWORK · TO-263 | GOODWORK | TO-263 | 75 | ₹156.96 · 75 in stock | View |
 | RS100N190S#C22364787REASUNOS · TO-263 | REASUNOS | TO-263 | 11 | ₹75.25 · 11 in stock | View |
 | HY1906B#C330379HUAYI · TO-263-2L | HUAYI | TO-263-2L | 700 | ₹71.12 · 700 in stock | View |
 | SUM70040E-GE3#C80173VISHAY · TO-263 | VISHAY | TO-263 | 10 | ₹418.68 · 10 in stock | View |
 | DOB14N10#C41430582DOINGTER · TO-263 | DOINGTER | TO-263 | 528 | ₹89.12 · 528 in stock | View |
