HXY MOSFETDatasheet (PDF)

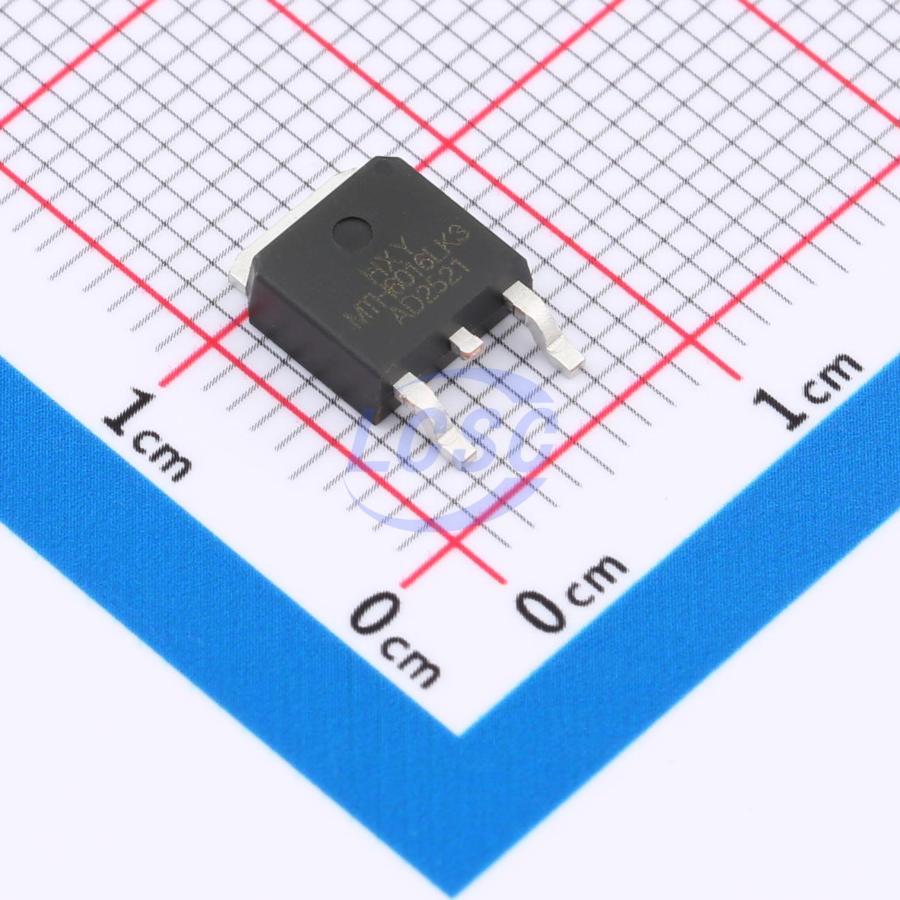

DMTH6016LK3-13-HXY
60V 50A 45W 11mΩ@10V 1 N-channel N-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
MOSFET 60V 50A TO-252-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- DMTH6016LK3-13-HXY
- Store part #
- C49256941
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
180 in stock
#C49256941
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹48.67 | ₹243.35 |
| 50+ | ₹38.98 | ₹1,949.00 |
| 150+ | ₹34.83 | ₹5,224.50 |
| 500+ | ₹29.65 | ₹14,825.00 |
| 2,500+ | ₹27.35 | ₹68,375.00 |
| 5,000+ | ₹25.96 | ₹1,29,800.00 |
5 × ₹48.67
₹243.35
excl. GST
₹287.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMTH6016LK3-13-HXY
₹243.35 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 145pF
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 2.423nF
- Pd - Power Dissipation
- 45W
- Reverse Transfer Capacitance (Crss)
- 97pF
- RDS(on)
- 11mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 19.3nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.364 g
Overview
DMTH6016LK3 - 13 utilizes advanced trench technology to deliver excellent RDS(ON), low gate charge, and operation at gate voltages as low as 4.5V. This device is suitable for battery protection or other switching applications.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
Key features
- VDS = 60V, ID = 50A
- RDS(ON) < 15mΩ at VGS = 10V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRLR2905ZPBF-HXY#C20606222HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 160 | ₹49.53 · 160 in stock | View |
 | IRFR3806TRPBF-HXY#C20606223HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 5 | ₹48.87 · 5 in stock | View |
 | FDD5353-HXY#C22366410HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 15 | ₹30.19 · 15 in stock | View |
 | STN2610D-HXY#C22366411HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 20 | ₹25.08 · 20 in stock | View |
 | IPD30N06S2-15-HXY#C22366412HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 10 | ₹36.28 · 10 in stock | View |
