JSMSEMIDatasheet (PDF)

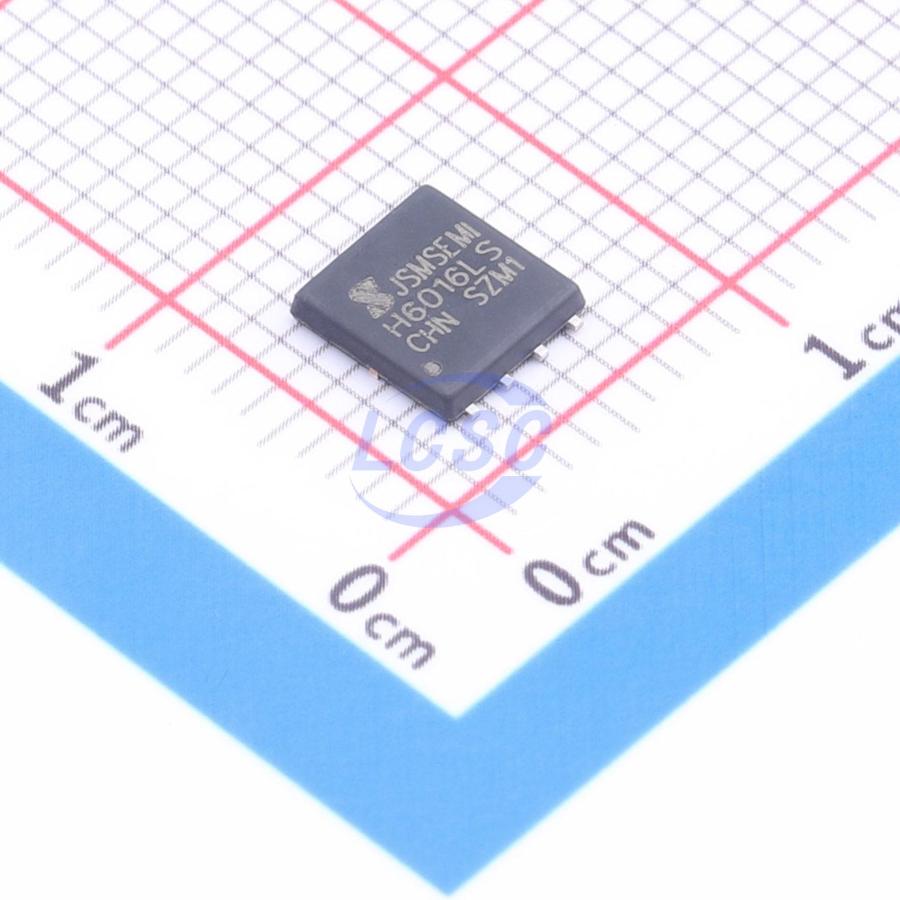

DMTH6016LPSQ-13-JSM
60V 50A 78W 12mΩ@10V 1 N-channel N-Channel DFN-8L(5x6) Single FETs, MOSFETs RoHS
DFN-8L(5x6)ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- DMTH6016LPSQ-13-JSM
- Store part #
- C55112148
- Package / case
- DFN-8L(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
840 in stock
#C55112148
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.24 | ₹216.20 |
| 50+ | ₹34.45 | ₹1,722.50 |
| 150+ | ₹30.69 | ₹4,603.50 |
| 500+ | ₹26.00 | ₹13,000.00 |
| 2,500+ | ₹22.52 | ₹56,300.00 |
| 5,000+ | ₹21.26 | ₹1,06,300.00 |
5 × ₹43.24
₹216.20
excl. GST
₹255.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
DMTH6016LPSQ-13-JSM
₹216.20 for 5 + GST
Specifications
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 450pF
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 1.09nF
- Pd - Power Dissipation
- 78W
- Reverse Transfer Capacitance (Crss)
- 30pF
- RDS(on)
- 12mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 18nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.8V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.123 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CSD18537NQ5A-JSM#C55112147JSMSEMI · DFN-8L(5x6) | JSMSEMI | DFN-8L(5x6) | 960 | ₹54.22 · 960 in stock | View |
 | JSM075N06QG5L#C55112146JSMSEMI · DFN-8L(5x6) | JSMSEMI | DFN-8L(5x6) | 3,225 | ₹54.16 · 3,225 in stock | View |
 | BSC110N06NS3G-JSM#C55112145JSMSEMI · DFN-8L(5x6) | JSMSEMI | DFN-8L(5x6) | 338 | ₹59.44 · 338 in stock | View |
 | AON6262E-JSM#C55112142JSMSEMI · DFN-8L(5x6) | JSMSEMI | DFN-8L(5x6) | 835 | ₹54.22 · 835 in stock | View |
 | BSC097N06NS-JSM#C55112143JSMSEMI · DFN-8L(5x6) | JSMSEMI | DFN-8L(5x6) | 987 | ₹63.09 · 987 in stock | View |
