MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
DIODESDatasheet (PDF)

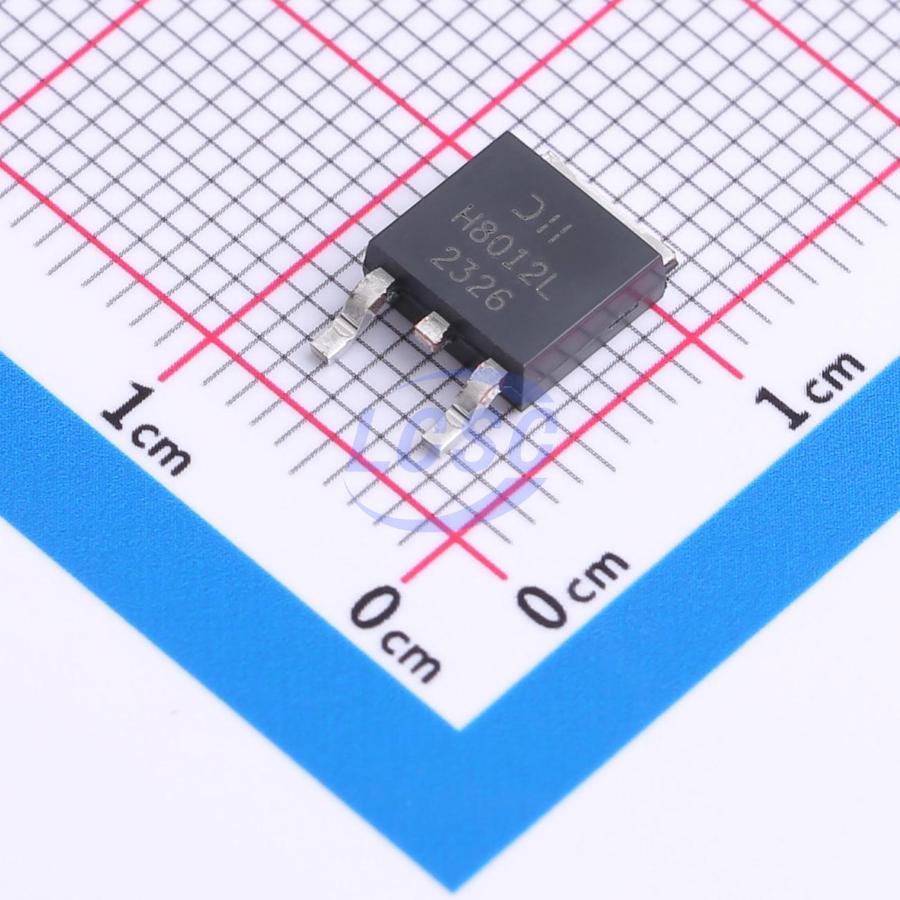

DMTH8012LK3Q-13
N-Channel 80V 50A 60W Surface Mount TO-252(DPAK)
TO-252(DPAK)ROHS3 CompliantActive
MOSFET N-CH 80V 50A TO-252(DPAK)
- Manufacturer
- DIODES
- Manufacturer part #
- DMTH8012LK3Q-13
- Store part #
- C5248955
- Package / case
- TO-252(DPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12 in stock
#C5248955
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹191.52 | ₹191.52 |
| 10+ | ₹188.50 | ₹1,885.00 |
| 30+ | ₹186.36 | ₹5,590.80 |
| 100+ | ₹184.21 | ₹18,421.00 |
1 × ₹191.52
₹191.52
excl. GST
₹225.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMTH8012LK3Q-13
₹191.52 for 1 + GST
Specifications
- Drain to Source Voltage
- 80V
- Operating Temperature
- -55℃~+175℃
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 177pF
- Pd - Power Dissipation
- 60W
- Reverse Transfer Capacitance (Crss)
- 10pF
- RDS(on)
- 16mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 34nC
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.54 g
Overview
This MOSFET is designed to meet the stringent requirements of automotive applications. It complies with the AEC-Q101 standard with PPAP support, making it ideal for the following applications: - Engine management units - Motor control - DC-DC converters
Applications
- Engine management unit
- Motor control
- DC-DC converter
Key features
- Rated temperature up to +175°C, suitable for high-temperature environments
- Low on-resistance RDS(ON), minimizing conduction losses
- High conversion efficiency
- Low input capacitance
- Fast switching speed
- Lead-free surface finish, RoHS compliant
- Halogen- and antimony-free, "Green" device
- Suitable for automotive applications requiring specific change control; compliant with AEC-Q101, PPAP capable, and manufactured in an IATF 16949 certified facility
