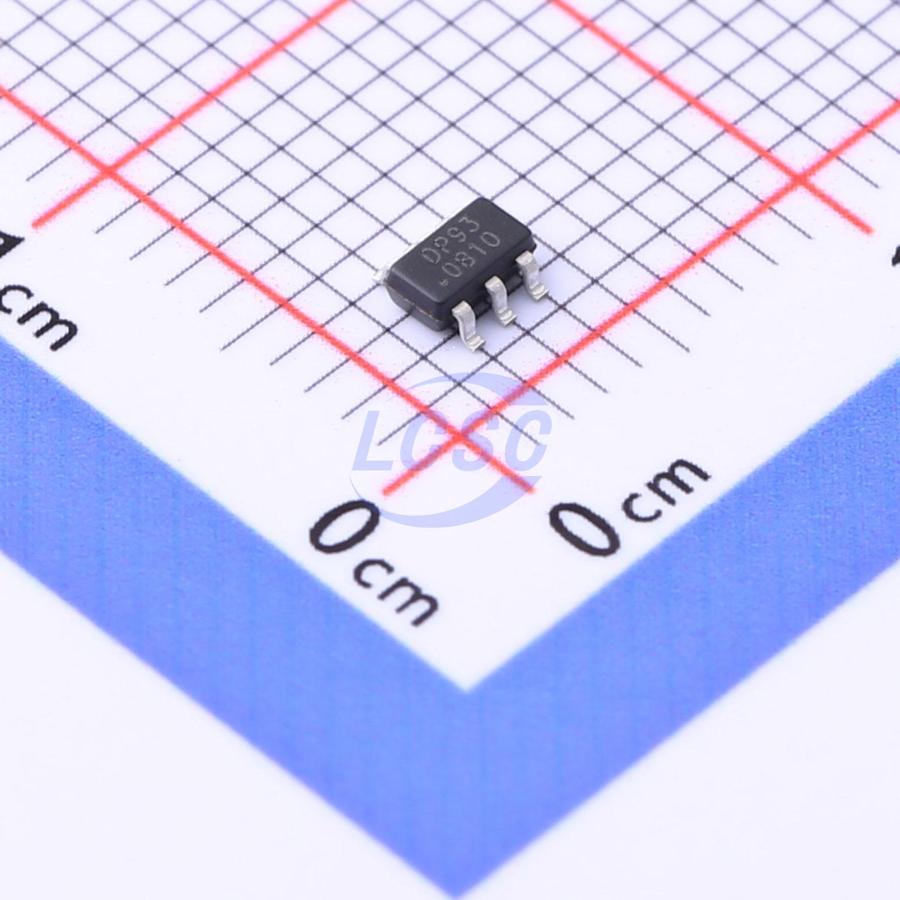

DP2293
60kHz~70kHz 10V~28V Flyback SOT-23-6 AC DC Converters, Offline Switchers
SOT-23-6RoHSActive
Offline Current Mode PWM Controller with BOP and Output OVP
- Manufacturer
- Shenzhen Developer Microelec.
- Manufacturer part #
- DP2293
- Store part #
- C2967753
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,170 in stock
#C2967753
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.19 | ₹90.95 |
| 50+ | ₹14.37 | ₹718.50 |
| 150+ | ₹12.45 | ₹1,867.50 |
| 500+ | ₹11.02 | ₹5,510.00 |
| 3,000+ | ₹9.87 | ₹29,610.00 |
| 6,000+ | ₹9.30 | ₹55,800.00 |
| 9,000+ | ₹9.18 | ₹82,620.00 |
| 21,000+ | ₹9.10 | ₹1,91,100.00 |
5 × ₹18.19
₹90.95
excl. GST
₹107.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DP2293
₹90.95 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 60kHz~70kHz
- Voltage - Supply
- 10V~28V
- Topology
- Flyback
- Features
- Constant Voltage (CV);Soft-start;Over Voltage Protection;Overtemperature protection (OTP);Over Current Protection;Under Voltage Protection
- Duty Cycle(Max)
- 66.7%
- Working Mode
- DCM;CCM
- Feedback System
- Secondary-Side Feedback
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
DP2293 is a high performance current mode PWM controller for offline flyback converter applications. It supports DCM and CCM operation. In DP2293, PWM switching frequency with shuffling is fixed to 65 KHz and is trimmed to tight range. The IC has built-in green and burst mode control for light and no load condition, which meet 6th energy star requirement and achieve less than 75mW standby power. DP2293 integrates functions and protections of Under Voltage Lockout (UVLO), VDD over Voltage Protection (VDD OVP), Input Brownout Protection (Brownout), Programmable Output Over Voltage Protection (OVP), On-Chip Thermal Shutdown (OTP), Cycle-by-cycle Current Limiting (OCP), Over Load Protection (OLP), Soft Start, VDD clamping and CS Pin Float Protection, etc. DP2293 is a high performance current mode PWM controller for offline flyback charger, motor driver power supply and adapter applications. The IC can support CCM and DCM operation, which is suitable for isolated power supply design that requires CV regulation of the output.
Applications
- Chargers and Adapter
- Motor Driver Power Supply
Key features
- Support DCM and CCM Operation
- ±1% CV Regulation
- Less than 75mW Standby Power
- Fixed 65KHz Switching Frequency
- Green Mode and Burst Mode Control
- Very Low Startup and Operation Current
- Built-in Frequency Shuffling to Reduce EMI
- Built-in Current Mode Control with Internal Slope Compensation
- Built-in Protections with Auto Recovery:
- VDD Under Voltage Lockout (UVLO)
- VDD Over Voltage Protection (OVP)
- Input Brownout Protection (Brownout)
- Output Over Voltage Protection (OVP)
- On-Chip Thermal Shutdown (OTP)
- Cycle-by-Cycle Current Limiting
- Over Load Protection (OLP)
- Leading Edge Blanking (LEB)
- CS Pin Float Protection
