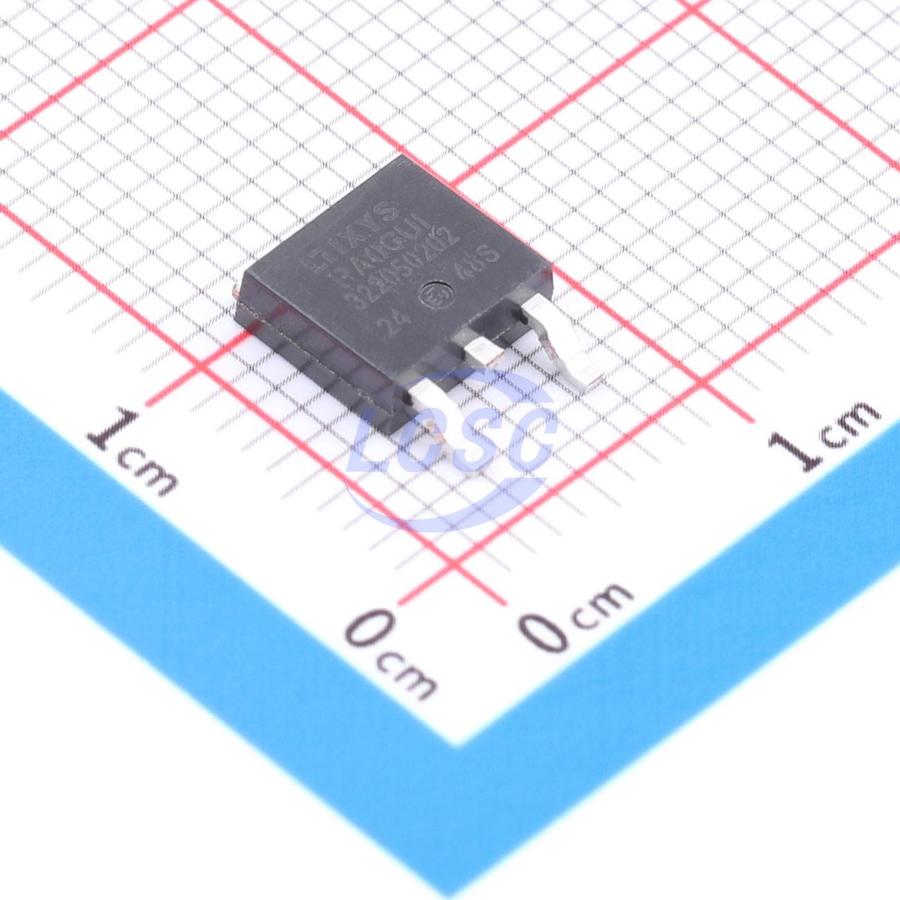

DPG10IM300UC-TRL
35ns 1 Independent 300V 1.27V@10A 10A TO-252AA Single Diodes RoHS
- Manufacturer
- Littelfuse/IXYS
- Manufacturer part #
- DPG10IM300UC-TRL
- Store part #
- C17326459
- Package / case
- TO-252AA
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C17326459
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹422.72 | ₹422.72 |
| 10+ | ₹414.13 | ₹4,141.30 |
| 30+ | ₹408.53 | ₹12,255.90 |
| 100+ | ₹402.93 | ₹40,293.00 |
1 × ₹422.72
₹422.72
excl. GST
₹498.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DPG10IM300UC-TRL
₹422.72 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 35ns
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 300V
- Operating Junction Temperature Range
- -55℃~+175℃
- Pd - Power Dissipation
- 65W
- Voltage - Forward(Vf@If)
- 1.27V@10A
- Reverse Leakage Current (Ir)
- 1uA@300V
- Current - Rectified
- 10A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.78 g
Overview
HiPerFRED is a high-performance fast recovery diode — a single diode with low-loss and soft recovery characteristics. The part number is DPG10IM300UC, with a product marking of PAOGUI. IRMS is typically limited by the lead-to-die resistance or the die current capability. In cases where a product has multiple leads for a single die potential, current capability can be improved by connecting the leads as a single contact. In the product marking, D stands for diode, P stands for HiPerFRED, Gτ stands for ultrafast, 10 represents the current rating (in A), M stands for single diode, 300 represents the reverse voltage (in V), and UC denotes the TO-252AA (DPak) package.
Applications
- Anti-parallel diodes for high-frequency switching devices, anti-saturation diodes, snubber diodes, freewheeling diodes, SMPS rectifiers, UPS
Key features
- Planar passivated die
- Ultra-low leakage current
- Ultra-fast recovery time
- Improved thermal performance
- Ultra-low Irm
- Very soft recovery characteristics
- Avalanche voltage rating ensures reliable operation
- Soft reverse recovery for reduced EMI/RFI
- Low Irm reduces:
- Power dissipation within the diode
- Turn-on losses in the commutating switch
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VS-15EWH06FNTR-M3#C17428100VISHAY · D-PAK(TO-252AA) | VISHAY | D-PAK(TO-252AA) | 17 | ₹227.73 · 17 in stock | View |
 | RFN10BM3SFHTL#C17556217ROHM · TO-252 | ROHM | TO-252 | 20 | ₹316.61 · 20 in stock | View |
 | RFNL10BM6SFHTL#C17359408ROHM · TO-252 | ROHM | TO-252 | 40 | ₹84.50 · 40 in stock | View |
| DPG10IM300UC-TUB#C17244322Littelfuse/IXYS · TO-252AA | Littelfuse/IXYS | TO-252AA | On request | ₹458.84 · 0 in stock | View | |
| VS-15EWH06FNTRL-M3#C17376335VISHAY · D-PAK(TO-252AA) | VISHAY | D-PAK(TO-252AA) | On request | ₹164.33 · 0 in stock | View | |
