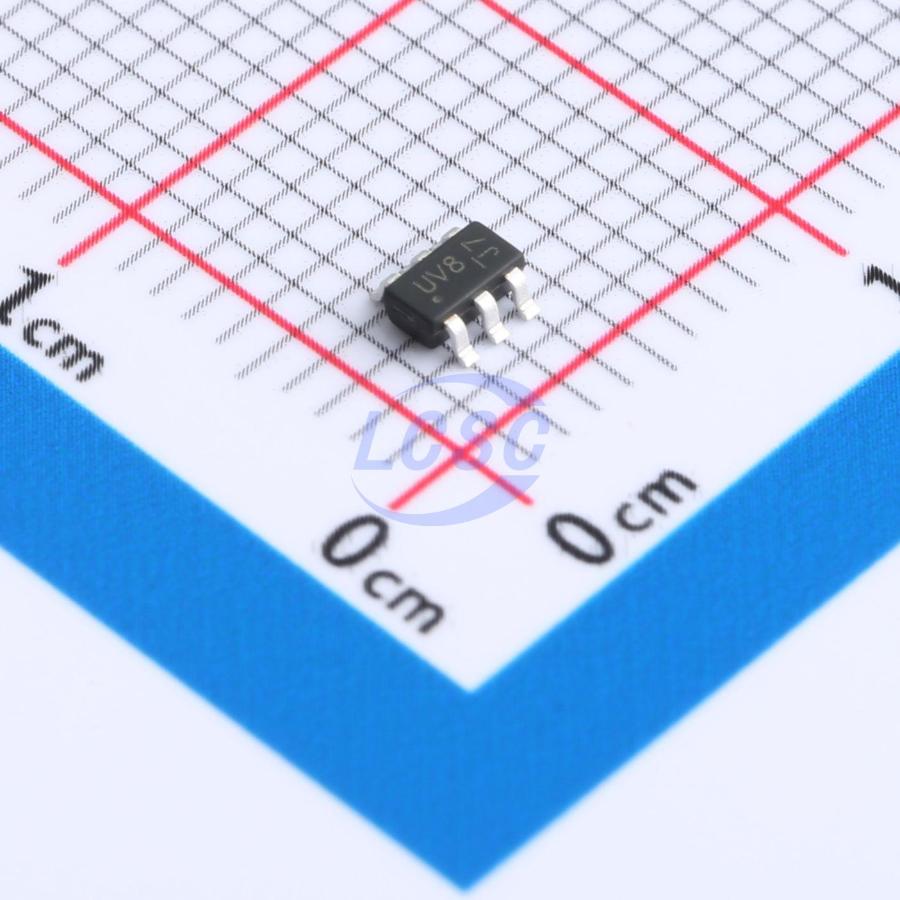

DIODES

DRTR5V0U2SO-7

19VC Clamp 6A@8/20us Ipp TVS DIODE SOT-26

SOT-26ROHS3 CompliantActive

TVS DIODE 5.5VWM 19VC SOT-26

Manufacturer: DIODES
Manufacturer part #: DRTR5V0U2SO-7
Store part #: C5248957
Package / case: SOT-26
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

360 in stock

#C5248957

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
5+	₹21.26	₹106.30
50+	₹16.88	₹844.00
150+	₹15.00	₹2,250.00
500+	₹12.66	₹6,330.00
3,000+	₹11.62	₹34,860.00
6,000+	₹10.99	₹65,940.00

Quantity (min 5, multiples of 5)

5 × ₹21.26

₹106.30

excl. GST

₹125.43 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

DRTR5V0U2SO-7

₹106.30 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 19V
Operating Temperature: -65℃~+150℃
Peak Pulse Current (Ipp): 6A@8/20us
Number of Channels: 2
Voltage - Breakdown: 9V
type: TVS
Reverse Leakage Current (Ir): 1nA
Reverse Stand-Off Voltage (Vrwm): 5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.024 g

Overview

This new generation TVS is designed to protect sensitive electronics from the damage due to ESD. The combination of small size and high ESD surge capability makes it ideal for use in portable applications such as cellular phones, digital cameras, and MP3 players.

Applications

Cellular Handsets
Portable Electronics
Computers and Peripheral

Key features

Provides ESD Protection per IEC 61000 - 4 - 2 Standard: Air ±30kV, Contact ±25kV
2 Channels of ESD Protection
Low Channel Input Capacitance
Totally Lead - Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
