TECH PUBLICDatasheet (PDF)

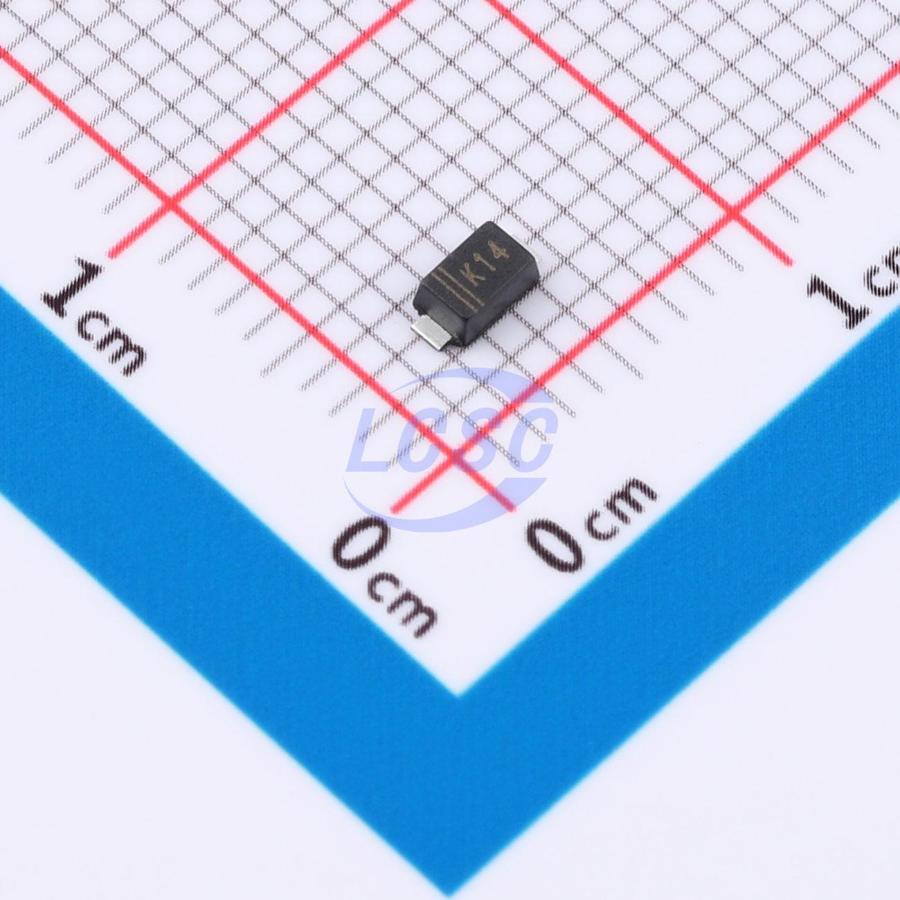

DS14W
40V 1 Independent 550mV@1A 1A SOD-123FL Single Diodes
SOD-123FLRoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- DS14W
- Store part #
- C53100350
- Package / case
- SOD-123FL
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,650 in stock
#C53100350
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.94 | ₹97.00 |
| 500+ | ₹1.51 | ₹755.00 |
| 3,000+ | ₹1.27 | ₹3,810.00 |
| 6,000+ | ₹1.12 | ₹6,720.00 |
| 24,000+ | ₹0.9923 | ₹23,815.20 |
| 51,000+ | ₹0.9261 | ₹47,231.10 |
50 × ₹1.94
₹97.00
excl. GST
₹114.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DS14W
₹97.00 for 50 + GST
Specifications
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - Forward(Vf@If)
- 550mV@1A
- Non-Repetitive Peak Forward Surge Current
- 40A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.04 g
Overview
Key features
- Plastic package with UL 94V-0 flammability rating
- Metal-silicon junction, majority carrier conduction
- Guard ring for overvoltage protection
- Low power consumption, high efficiency
- High current capability, low forward voltage drop
- High surge capability
- Suitable for low voltage, high frequency inverter, freewheeling, and polarity protection applications
- Guaranteed high-temperature solderability: 250°C/10 seconds at terminals, lead length 0.375 inches (9.5mm), withstands 5 lbs (2.3kg) pull force
