TECH PUBLICDatasheet (PDF)

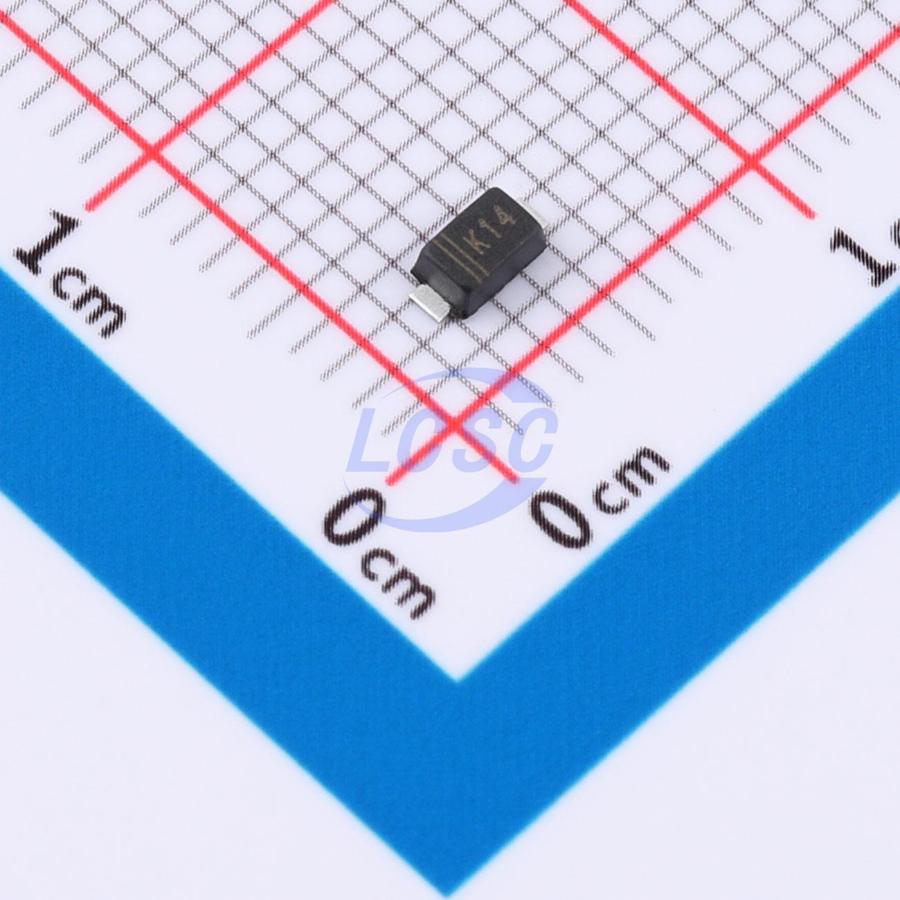

K14
40V 1 Independent 550mV@1A 1A SOD-123FL Single Diodes
SOD-123FLRoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- K14
- Store part #
- C53100348
- Package / case
- SOD-123FL
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,300 in stock
#C53100348
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.94 | ₹97.00 |
| 500+ | ₹1.49 | ₹745.00 |
| 3,000+ | ₹1.26 | ₹3,780.00 |
| 6,000+ | ₹1.11 | ₹6,660.00 |
| 24,000+ | ₹0.979 | ₹23,496.00 |
| 51,000+ | ₹0.9129 | ₹46,557.90 |
50 × ₹1.94
₹97.00
excl. GST
₹114.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
K14
₹97.00 for 50 + GST
Specifications
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - Forward(Vf@If)
- 550mV@1A
- Non-Repetitive Peak Forward Surge Current
- 40A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.04 g
Overview
Key features
- Plastic package with UL 94V-0 flammability rating
- Metal-silicon junction, majority carrier conduction
- Guard ring for over-voltage protection
- Low power consumption, high efficiency
- High current capability, low forward voltage drop
- High surge capability
- Suitable for low voltage, high frequency inverter, freewheeling, and polarity protection applications
- Guaranteed high temperature soldering capability: 250°C/10 seconds at terminals, lead length 0.375 inch (9.5mm), withstanding 5 lbs (2.3kg) pull force
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SS14L#C53100349TECH PUBLIC · SOD-123FL | TECH PUBLIC | SOD-123FL | 11,550 | ₹2.00 · 11,550 in stock | View |
 | DS14W#C53100350TECH PUBLIC · SOD-123FL | TECH PUBLIC | SOD-123FL | 1,650 | ₹1.94 · 1,650 in stock | View |
 | DSK14#C53100351TECH PUBLIC · SOD-123FL | TECH PUBLIC | SOD-123FL | 4,050 | ₹2.00 · 4,050 in stock | View |
 | DSK14W#C53100352TECH PUBLIC · SOD-123FL | TECH PUBLIC | SOD-123FL | 3,000 | ₹2.00 · 3,000 in stock | View |
 | BAS40H#C53477648TECH PUBLIC · SOD-123FL | TECH PUBLIC | SOD-123FL | 3,700 | ₹1.98 · 3,700 in stock | View |
