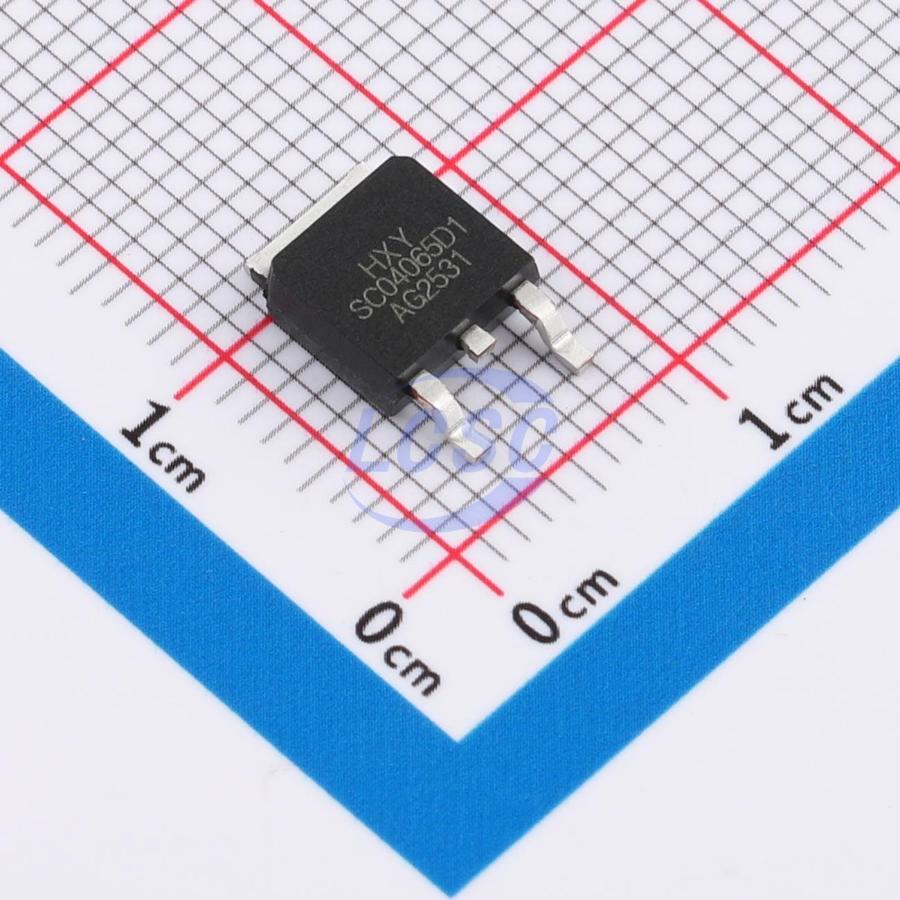

HXY MOSFETDatasheet (PDF)
DSC04065D1-HXY
1 Independent 650V 1.3V@4A 14A TO-252-2L Single Diodes
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- DSC04065D1-HXY
- Store part #
- C51896364
- Package / case
- TO-252-2L
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
47 in stock
#C51896364
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹211.16 | ₹211.16 |
| 10+ | ₹179.46 | ₹1,794.60 |
| 30+ | ₹159.74 | ₹4,792.20 |
| 100+ | ₹139.38 | ₹13,938.00 |
| 500+ | ₹130.36 | ₹65,180.00 |
| 1,000+ | ₹126.37 | ₹1,26,370.00 |
1 × ₹211.16
₹211.16
excl. GST
₹249.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DSC04065D1-HXY
₹211.16 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 650V
- Voltage - Forward(Vf@If)
- 1.3V@4A
- Reverse Leakage Current (Ir)
- 50uA@650V
- Current - Rectified
- 14A
- Non-Repetitive Peak Forward Surge Current
- 36A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.39 g
Overview
Applications
- Uninterruptible power supplies
- Power inverters
- High-performance switching power supplies
- Power factor correction
Key features
- Low conduction loss due to low V<sub>F</sub>
- Ultra-low switching loss via minimal Q<sub>C</sub>
- High robustness due to superior surge current capability
- Industry-standard quality and reliability
