HXY MOSFETDatasheet (PDF)

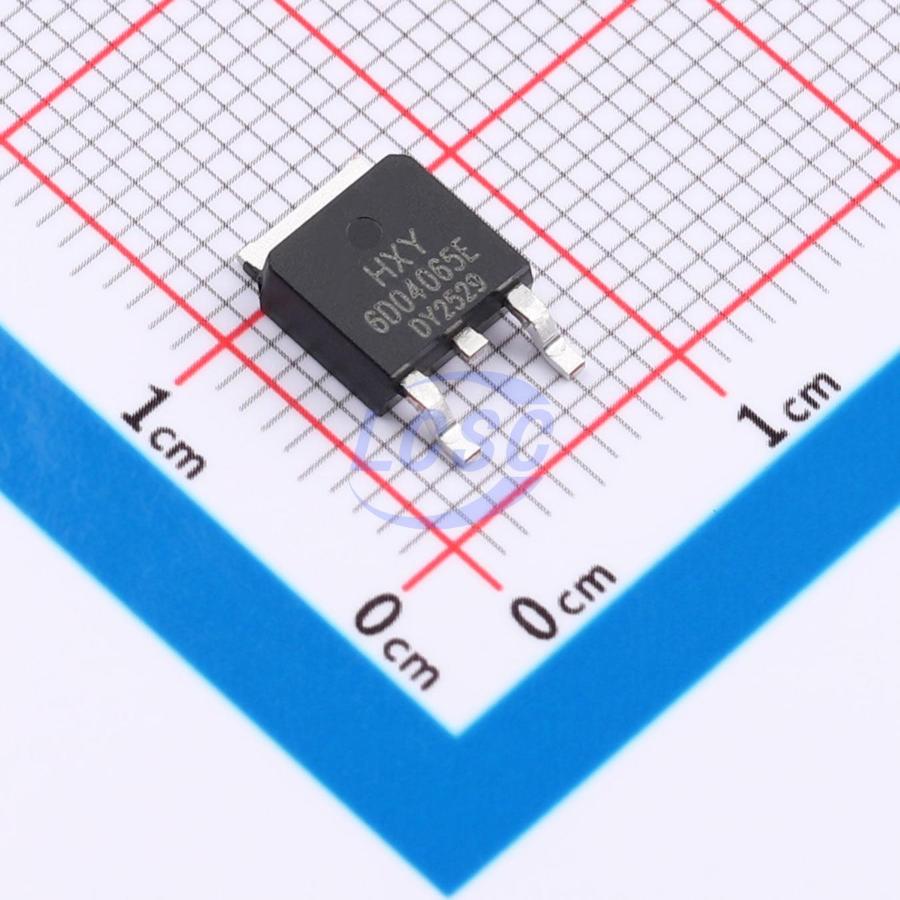

HC6D04065E
1 Independent 650V 1.5V@4A 14A TO-252-2L Single Diodes
TO-252-2LRoHSActive
Silicon Carbide Schottky Diode
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HC6D04065E
- Store part #
- C42389271
- Package / case
- TO-252-2L
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
89 in stock
#C42389271
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹109.39 | ₹109.39 |
| 10+ | ₹88.15 | ₹881.50 |
| 30+ | ₹77.44 | ₹2,323.20 |
| 100+ | ₹66.92 | ₹6,692.00 |
| 500+ | ₹60.49 | ₹30,245.00 |
| 1,000+ | ₹57.27 | ₹57,270.00 |
1 × ₹109.39
₹109.39
excl. GST
₹129.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HC6D04065E
₹109.39 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 650V
- Voltage - Forward(Vf@If)
- 1.5V@4A
- Reverse Leakage Current (Ir)
- 50uA@650V
- Current - Rectified
- 14A
- Non-Repetitive Peak Forward Surge Current
- 36A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.47 g
Overview
Applications
- Uninterruptible power supplies
- Power inverters
- High-performance switch-mode power supplies
- Power factor correction
Key features
- Low conduction loss due to low V<sub>F</sub>
- Ultra-low switching loss via miniature QC
- High robustness due to superior surge current capability
- Industry-standard quality and reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FFSD0465A-HXY#C51896350HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 37 | ₹211.16 · 37 in stock | View |
 | DSC04065D1-HXY#C51896364HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 47 | ₹211.16 · 47 in stock | View |
 | CSD01060E-TR-HXY#C53467989HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 16 | ₹153.65 · 16 in stock | View |
 | FFD04H60S-HXY#C53467995HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 48 | ₹131.19 · 48 in stock | View |
 | RHRD460S9A-HXY#C53467996HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 18 | ₹97.40 · 18 in stock | View |
