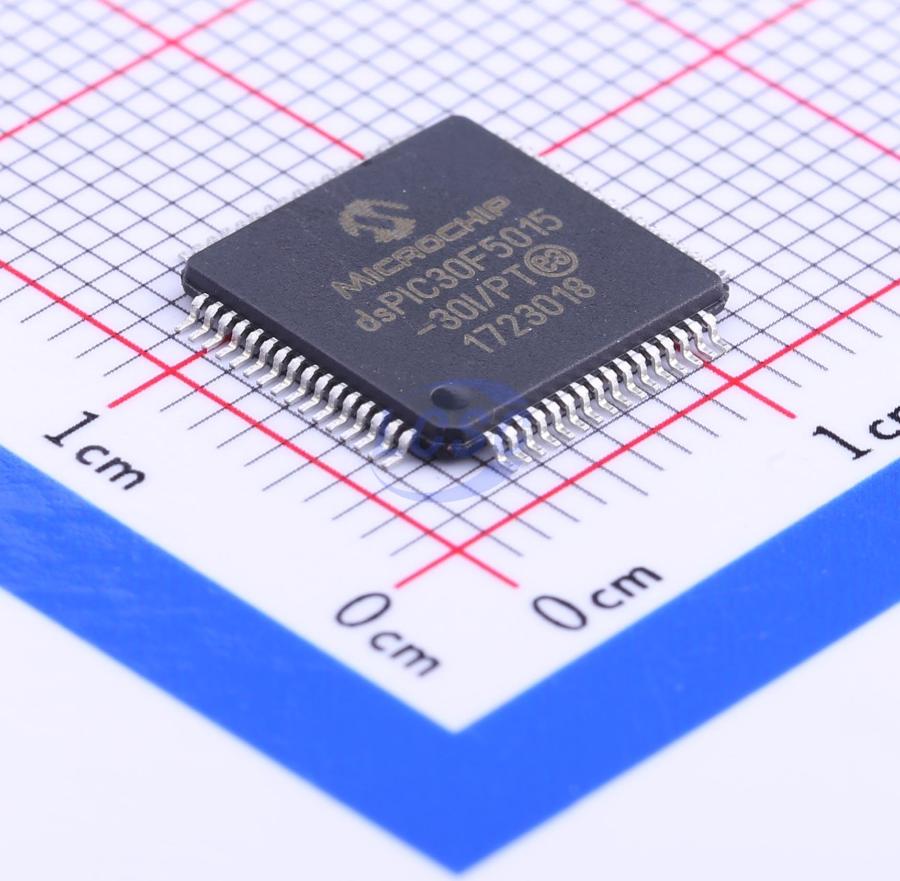

DSPIC30F5015-30I/PT

TQFP-64(10x10) Microcontrollers RoHS

TQFP-64(10x10)ROHS3 CompliantActive

16-bit Digital Signal Controllers

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

15 in stock

#C45746

Stock & price checked 8 days ago

Quantity (min 1)

1 × ₹1,008.52

₹1,008.52

excl. GST

₹1,190.05 incl. 18% GST

DSPIC30F5015-30I/PT

₹1,008.52 for 1 + GST

Specifications

Modified Harvard architecture
C compiler optimized instruction set architecture with flexible Addressing modes
83 base instructions
24-bit wide instructions, 16-bit wide data path
66 Kbytes on-chip Flash program space (Instruction words)
2 Kbytes of on-chip data RAM
1 Kbyte of nonvolatile data EEPROM
Up to 30 MIPS operation: DC to 40 MHz external clock input; 4 MHz - 10 MHz oscillator input with PLL active (4x, 8x, 16x)
36 interrupt sources: Five external interrupt sources; Eight user-selectable priority levels for each interrupt source; Four processor trap sources
16x16-bit working register array
Dual data fetch
Accumulator write back for DSP operations
Modulo and Bit-Reversed Addressing modes
Two 40-bit wide accumulators with optional saturation logic
17-bit x 17-bit single-cycle hardware fractional/integer multiplier
All DSP instructions single cycle
±16-bit single-cycle shift
High-current sink/source I/O pins: 25 mA/25 mA
Timer module with programmable prescaler: Five 16-bit timers/counters; optionally pair 16-bit timers into 32-bit timer modules
16-bit Cap
