DIODESDatasheet (PDF)

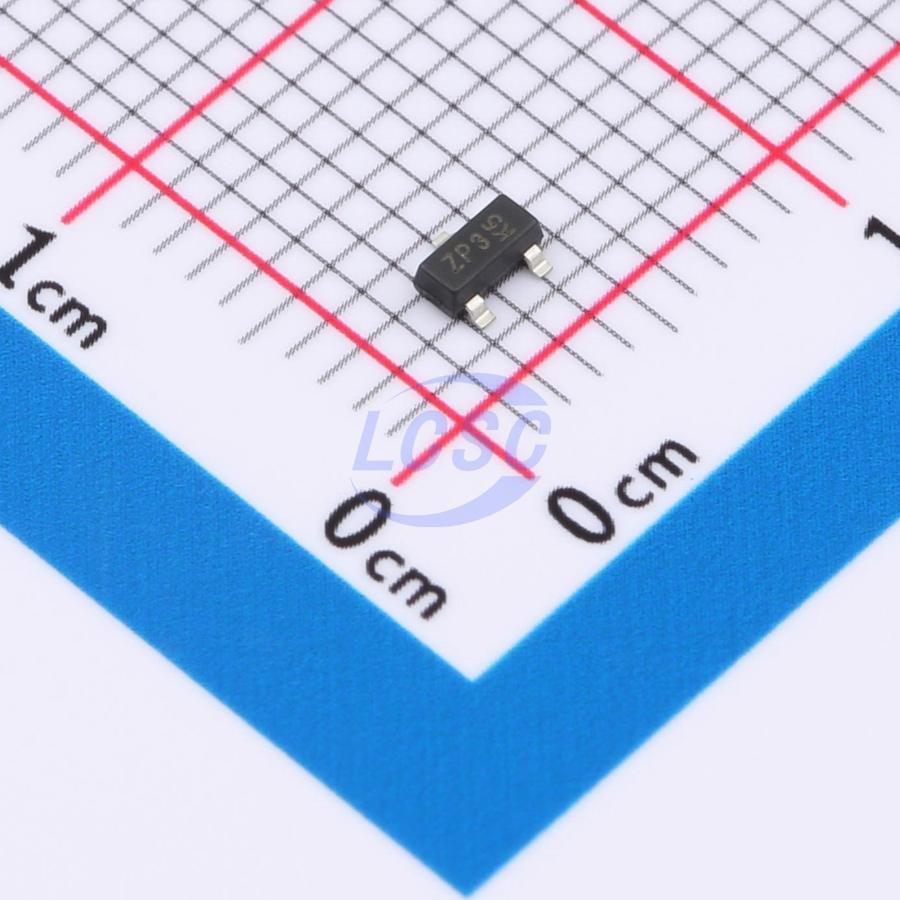

DSS5220T-13
Bipolar (BJT) Transistor PNP 20V 2A 100MHz 1.2W Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
TRANS PNP 20V 2A SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DSS5220T-13
- Store part #
- C5245531
- Package / case
- SOT-23
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
150 in stock
#C5245531
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.19 | ₹115.95 |
| 50+ | ₹22.87 | ₹1,143.50 |
| 150+ | ₹22.66 | ₹3,399.00 |
| 500+ | ₹22.46 | ₹11,230.00 |
| 2,500+ | ₹22.45 | ₹56,125.00 |
5 × ₹23.19
₹115.95
excl. GST
₹136.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DSS5220T-13
₹115.95 for 5 + GST
Specifications
- Current - Collector Cutoff
- 50uA
- Operating Temperature
- -55℃~+150℃
- Transition frequency(fT)
- 100MHz
- Collector - Emitter Voltage VCEO
- 20V
- Emitter-Base Voltage VEBO
- 7V
- DC Current Gain
- 200
- Pd - Power Dissipation
- 1.2W
- Current - Collector(Ic)
- 2A
- Configuration
- Standalone
- Number
- 1 PNP
- type
- PNP
- Vce Saturation(VCE(sat))
- 150mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.026 g
Overview
Key features
- BVCEO > -20V
- lC = -2A Continuous Collector Current
- lCM = -3A Peak Pulse Current
- Low Saturation Voltage VCE(sat) < -150mV @ -1A, RCE(sat) = 113mΩ for a Low Equivalent On-Resistance
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DSS5220T-7#C5245532DIODES · SOT-23 | DIODES | SOT-23 | 290 | ₹137.57 · 290 in stock | View |
 | PBSS5350T,215-JSM#C18195204JSMSEMI · SOT-23 | JSMSEMI | SOT-23 | 2,360 | ₹10.43 · 2,360 in stock | View |
 | ZXTP25020CFHTA#C526813DIODES · SOT-23-3 | DIODES | SOT-23-3 | On request | ₹95.00 · 0 in stock | View |
 | PBSS5320T,215#C193653Nexperia · SOT-23 | Nexperia | SOT-23 | 1,135 | ₹33.63 · 1,135 in stock | View |
 | PBSS5220T,215#C551960Nexperia · SOT-23 | Nexperia | SOT-23 | 3,060 | ₹12.67 · 3,060 in stock | View |
