DIODESDatasheet (PDF)

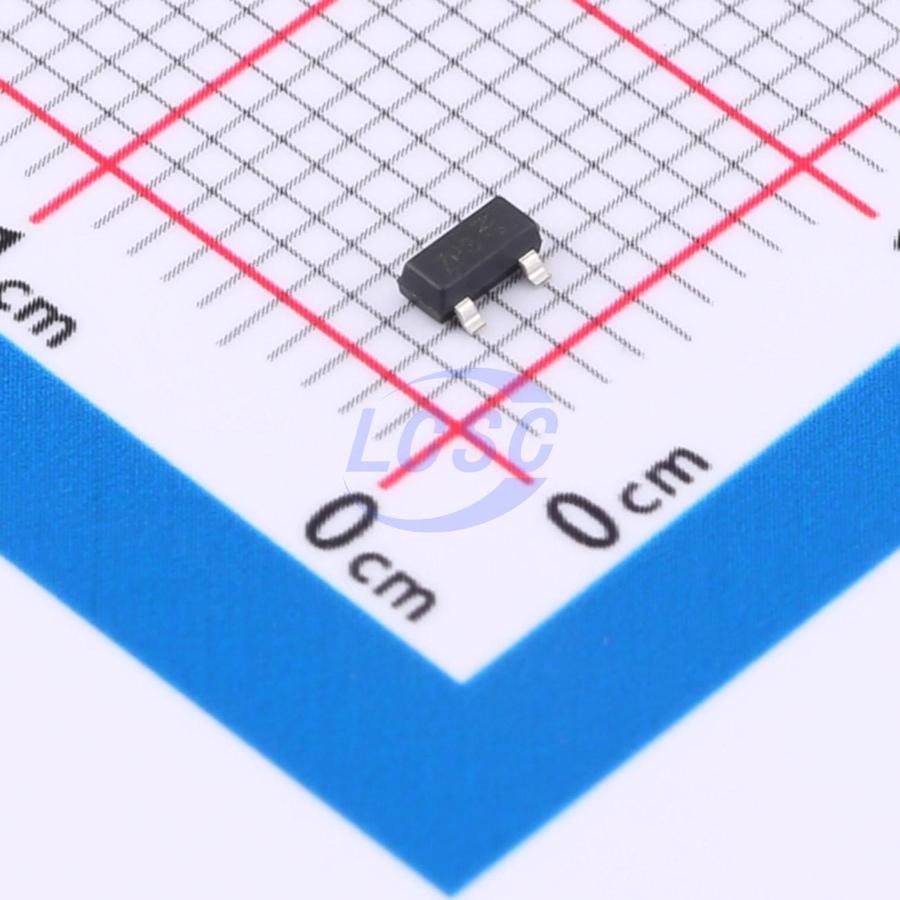

DSS5220T-7
20V 225 2A 1 PNP PNP SOT-23 Single Bipolar Transistors RoHS
SOT-23ROHS3 CompliantActive
Withstand Voltage: 20V Current: 2A PNP
- Manufacturer
- DIODES
- Manufacturer part #
- DSS5220T-7
- Store part #
- C5245532
- Package / case
- SOT-23
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
290 in stock
#C5245532
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹137.57 | ₹137.57 |
| 10+ | ₹117.58 | ₹1,175.80 |
| 30+ | ₹107.48 | ₹3,224.40 |
| 100+ | ₹97.58 | ₹9,758.00 |
| 500+ | ₹91.56 | ₹45,780.00 |
| 1,000+ | ₹88.56 | ₹88,560.00 |
1 × ₹137.57
₹137.57
excl. GST
₹162.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DSS5220T-7
₹137.57 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Current - Collector Cutoff
- 100nA
- Transition frequency(fT)
- 100MHz
- Collector - Emitter Voltage VCEO
- 20V
- Emitter-Base Voltage VEBO
- 7V
- DC Current Gain
- 225
- Pd - Power Dissipation
- 1.2W
- Current - Collector(Ic)
- 2A
- Configuration
- Standalone
- Number
- 1 PNP
- type
- PNP
- Vce Saturation(VCE(sat))
- 250mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.06 g
Overview
Key features
- BVCEO > -20V
- lC = -2A Continuous Collector Current
- lCM = -3A Peak Pulse Current
- Low Saturation Voltage VCE(sat) < -150mV @ -1A, RCE(sat) = 113mΩ for a Low Equivalent On-Resistance
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DSS5220T-13#C5245531DIODES · SOT-23 | DIODES | SOT-23 | 150 | ₹23.19 · 150 in stock | View |
 | DSS5220TQ-7#C5624754DIODES · SOT-23 | DIODES | SOT-23 | 2,235 | ₹17.24 · 2,235 in stock | View |
 | PBSS5220T,215#C551960Nexperia · SOT-23 | Nexperia | SOT-23 | 3,060 | ₹12.67 · 3,060 in stock | View |
 | PBSS5320T,215#C193653Nexperia · SOT-23 | Nexperia | SOT-23 | 1,135 | ₹33.63 · 1,135 in stock | View |
 | NSV20200LT1G#C889766onsemi · SOT-23 | onsemi | SOT-23 | 202 | ₹70.25 · 202 in stock | View |
