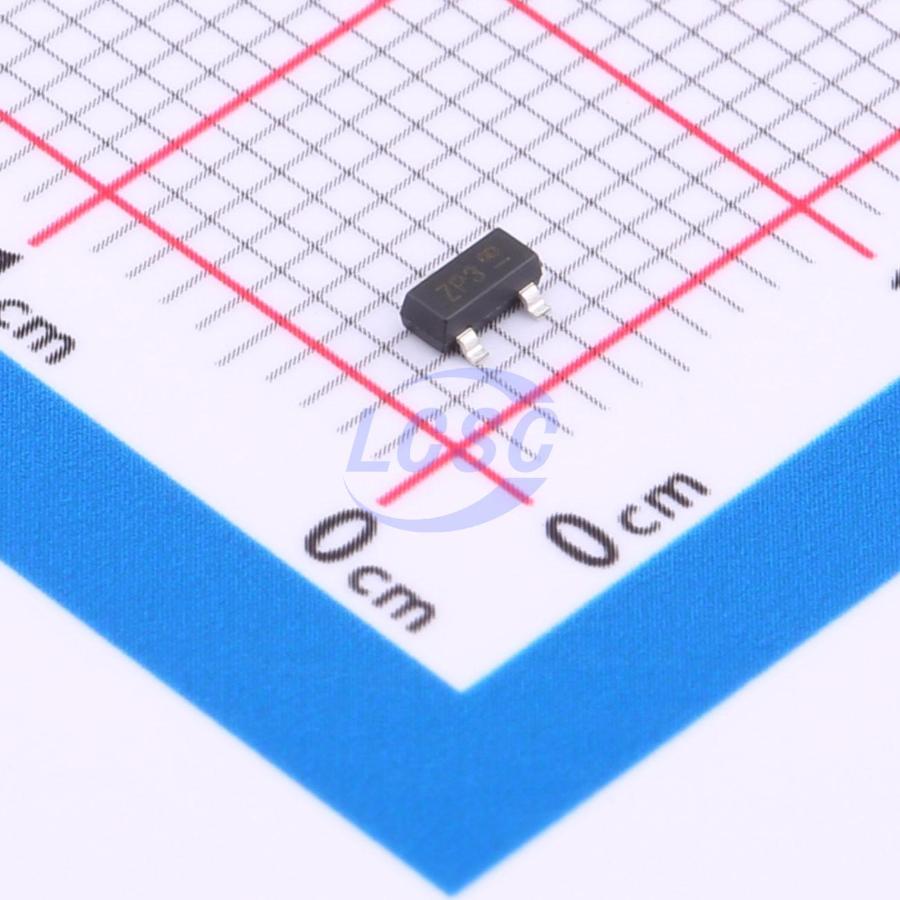

DSS5220TQ-7
Bipolar (BJT) Transistor PNP 20V 2A 100MHz 600mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
TRANS PNP 20V 2A SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DSS5220TQ-7
- Store part #
- C5624754
- Package / case
- SOT-23
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,235 in stock
#C5624754
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.24 | ₹86.20 |
| 50+ | ₹15.20 | ₹760.00 |
| 150+ | ₹14.33 | ₹2,149.50 |
| 500+ | ₹13.24 | ₹6,620.00 |
| 3,000+ | ₹12.75 | ₹38,250.00 |
| 6,000+ | ₹12.48 | ₹74,880.00 |
5 × ₹17.24
₹86.20
excl. GST
₹101.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DSS5220TQ-7
₹86.20 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Current - Collector Cutoff
- 100nA
- Transition frequency(fT)
- 100MHz
- Collector - Emitter Voltage VCEO
- 20V
- Emitter-Base Voltage VEBO
- 7V
- DC Current Gain
- 225
- Pd - Power Dissipation
- 600mW
- Current - Collector(Ic)
- 2A
- Number
- 1 PNP
- type
- PNP
- Vce Saturation(VCE(sat))
- 250mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.06 g
Overview
This Bipolar Junction Transistor (BJT) is designed to meet the stringent requirements of Automotive Applications.
Key features
- BVCEO >-20V
- IC =-2A Continuous Collector Current
- ICM =-3 A Peak Pulse Current
- Low Saturation Voltage VCE(SAT) <-150 mV @-1 A
- RCE(SAT) = 113 mΩ for a Low Equivalent On-Resistance
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
- PPAP Capable
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DSS5220T-7#C5245532DIODES · SOT-23 | DIODES | SOT-23 | 290 | ₹137.57 · 290 in stock | View |
 | PBSS5320T,215#C193653Nexperia · SOT-23 | Nexperia | SOT-23 | 1,135 | ₹33.63 · 1,135 in stock | View |
 | NSV20200LT1G#C889766onsemi · SOT-23 | onsemi | SOT-23 | 202 | ₹70.25 · 202 in stock | View |
 | PBSS5220T-QR#C5823707Nexperia · TO-236AB | Nexperia | TO-236AB | 29,980 | ₹16.50 · 29,980 in stock | View |
 | PBSS5220T,215#C551960Nexperia · SOT-23 | Nexperia | SOT-23 | 3,060 | ₹12.67 · 3,060 in stock | View |
