DIODESDatasheet (PDF)

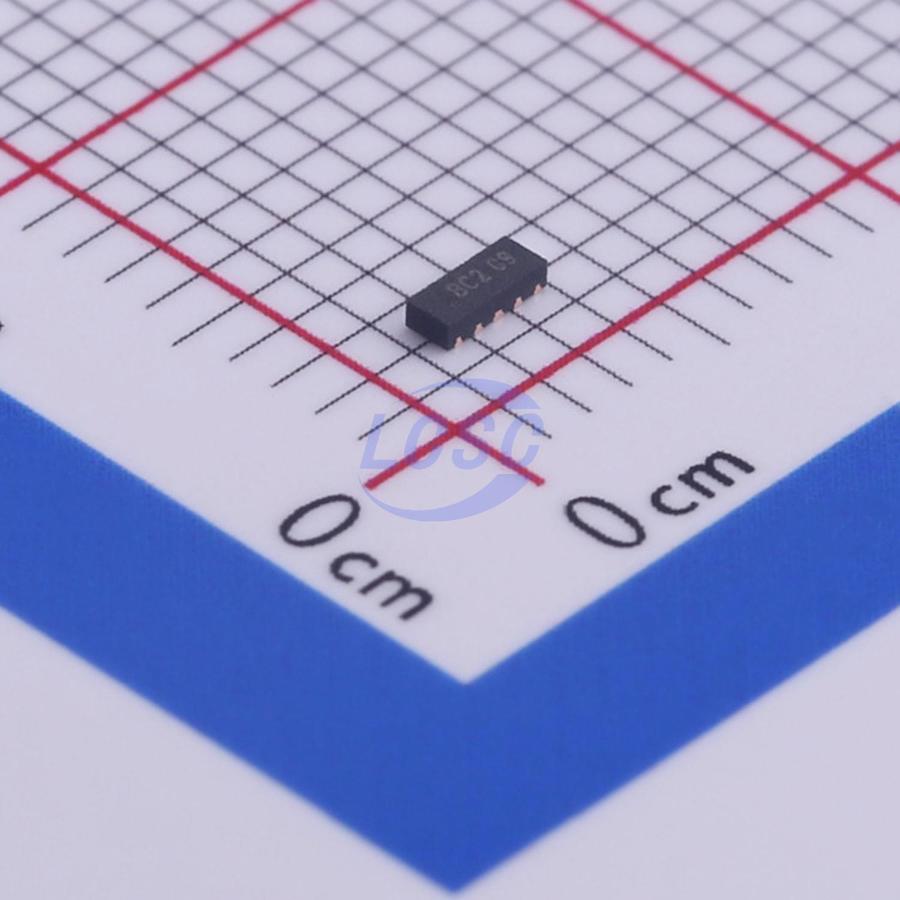

DT1140-04LP-7
10VC Clamp 6A@8/20us Ipp ESD DIODE UDFN2510-10
UDFN2510-10ROHS3 CompliantActive
ESD DIODE 5.5VWM 10VC UDFN2510-10
- Manufacturer
- DIODES
- Manufacturer part #
- DT1140-04LP-7
- Store part #
- C443632
- Package / case
- UDFN2510-10
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,495 in stock
#C443632
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹55.57 | ₹277.85 |
| 50+ | ₹45.95 | ₹2,297.50 |
| 150+ | ₹41.83 | ₹6,274.50 |
| 500+ | ₹36.69 | ₹18,345.00 |
| 3,000+ | ₹34.40 | ₹1,03,200.00 |
| 6,000+ | ₹33.02 | ₹1,98,120.00 |
5 × ₹55.57
₹277.85
excl. GST
₹327.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DT1140-04LP-7
₹277.85 for 5 + GST
Specifications
- Clamping Voltage
- 10V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 6A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 60W@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 6V
- type
- ESD
- Reverse Leakage Current (Ir)
- 50nA
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
Key features
- Clamping Voltage: 9V at 10A 100ns TLP; 9V at 6A 8µs/20µs
- IEC 61000 - 4 - 2 (ESD): Air - +20/- 18kV, Contact - +20/- 16kV
- IEC 61000 - 4 - 5 (Lightning): ±6A (8/20µs)
- 4 Channels of ESD Protection
- Low Channel Input Capacitance of 0.5pF Typical
- TLP Dynamic Resistance: 0.25Ω
- Totally Lead - Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- This part is qualified to JEDEC standards (as references in AEC - Q) for High Reliability
- An automotive - compliant part is available under separate datasheet (DT1140 - 04LPQ)
