DIODESDatasheet (PDF)

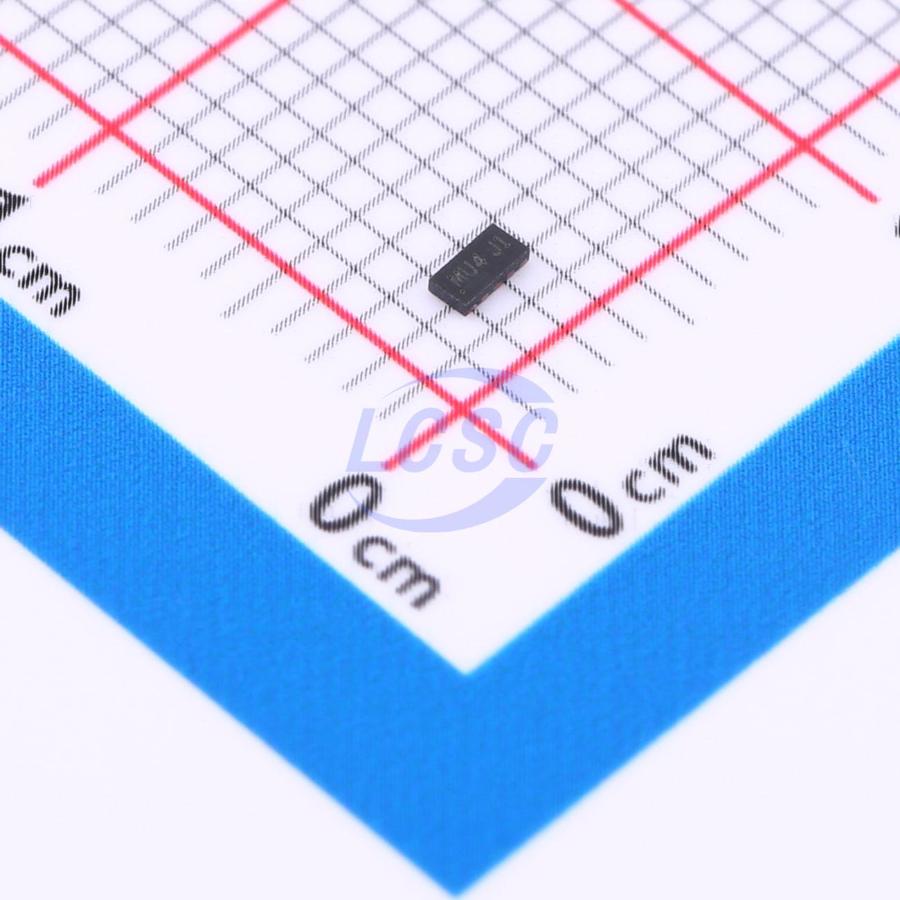

DT1240-04LP20-7
11VC Clamp 5.5A Ipp ESD DIODE X2-DFN2010-8
X2-DFN2010-8ROHS3 CompliantSold out at source
ESD DIODE 5.5VWM 11VC X2-DFN2010-8
- Manufacturer
- DIODES
- Manufacturer part #
- DT1240-04LP20-7
- Store part #
- C3712626
- Package / case
- X2-DFN2010-8
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,270 in stock
#C3712626
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.79 | ₹83.95 |
| 50+ | ₹13.07 | ₹653.50 |
| 150+ | ₹11.22 | ₹1,683.00 |
| 500+ | ₹9.82 | ₹4,910.00 |
| 3,000+ | ₹8.71 | ₹26,130.00 |
| 6,000+ | ₹8.14 | ₹48,840.00 |
5 × ₹16.79
₹83.95
excl. GST
₹99.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DT1240-04LP20-7
₹83.95 for 5 + GST
Specifications
- Clamping Voltage
- 11V
- Operating Temperature
- -55℃~+85℃
- Peak Pulse Current (Ipp)
- 5.5A
- Peak Pulse Power Dissipation (Ppp)
- 60W
- Number of Channels
- Four channels
- Voltage - Breakdown
- 6V
- type
- ESD
- Reverse Leakage Current (Ir)
- 500nA
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Sold out at source
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.054 g
Overview
The DT1240- 04LP20 is a high- performance device suitable for protecting four high speed I/Os. These devices are assembled in X2- DFN2010- 8 (Type B) package and have high ESD surge capability and low capacitance.
Applications
- Typically used at high- speed ports such as USB2.0, USB3.0, IEEE1394, Serial ATA, DVI, HDMI, PCI.
Key features
- Clamping Voltage: 9V at 10A 100ns, TLP 9.4V at 5.5A 8μs/20μs
- IEC 61000- 4- 2 (ESD): Air — ±16kV, Contact — ±14kV
- IEC 61000- 4- 5 (Lightning): ±5.5A (8/20μs)
- 4 Channels of ESD Protection
- Low Channel Input Capacitance of 0.55pF Typical
- TLP Dynamic Resistance: 0.25Ω
- Totally Lead- Free & Fully RoHS Compliant
- Halogen and Antimony Free
- "Green" Device
