DIODESDatasheet (PDF)

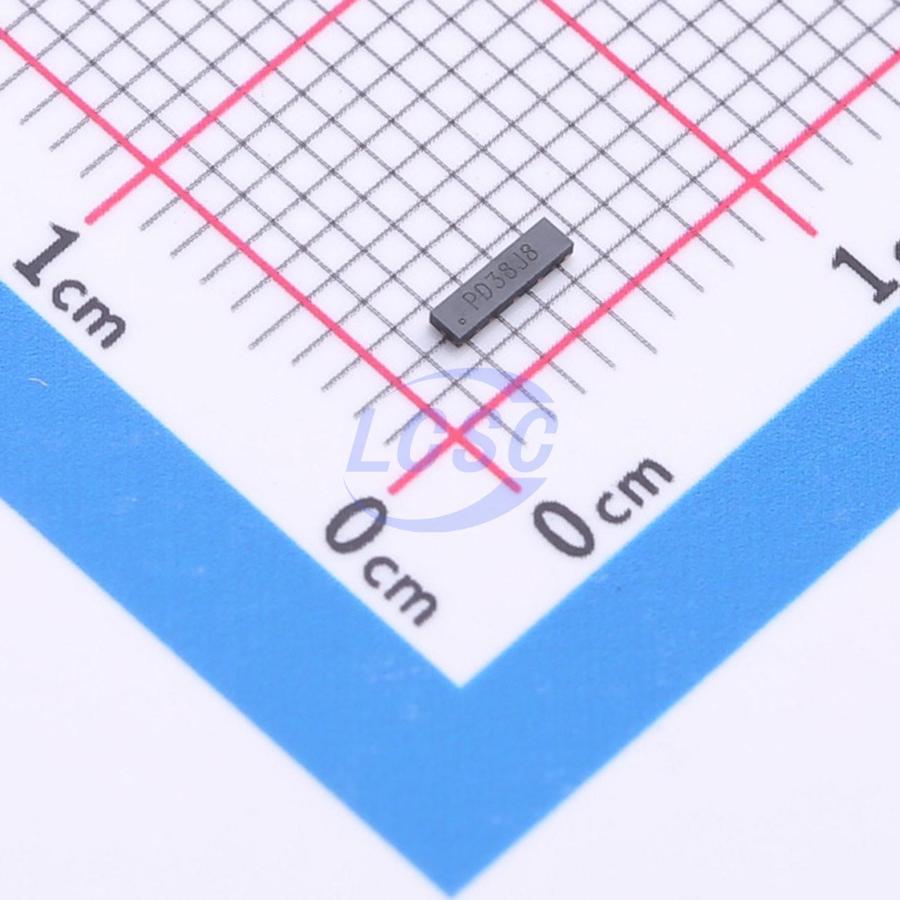

DT1240-08LP3810-7
11VC Clamp 5.5A Ipp ESD DIODE U-DFN3810-9
U-DFN3810-9ROHS3 CompliantActive
ESD DIODE 5.5VWM 11VC U-DFN3810-9
- Manufacturer
- DIODES
- Manufacturer part #
- DT1240-08LP3810-7
- Store part #
- C5244634
- Package / case
- U-DFN3810-9
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
75 in stock
#C5244634
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.87 | ₹114.35 |
| 50+ | ₹22.39 | ₹1,119.50 |
| 150+ | ₹22.05 | ₹3,307.50 |
| 500+ | ₹21.72 | ₹10,860.00 |
5 × ₹22.87
₹114.35
excl. GST
₹134.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
DT1240-08LP3810-7
₹114.35 for 5 + GST
Specifications
- Clamping Voltage
- 11V
- Operating Temperature
- -55℃~+85℃
- Peak Pulse Current (Ipp)
- 5.5A
- Peak Pulse Power Dissipation (Ppp)
- 60W@8/20us
- Number of Channels
- 8
- Voltage - Breakdown
- 6V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 500nA
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.066 g
Overview
The DT1240-08LP3810 is a high-performance device suitable for protecting four high-speed I/Os. These devices are assembled in UDFN3810-9 (Type B) package and have high ESD surge capability and low capacitance.
Applications
- Typically used at high-speed ports such as USB2.0, USB3.0, USB3.1, IEEE1394 (Firewire, iLink), Serial ATA, DVI, HDMI1.4, HDMI2.0 and PCI
Key features
- Clamping Voltage: 9V at 10A 100ns, TLP; 9.4V at 5.5A (8μs/20μs)
- IEC 61000-4-2 (ESD): Air – ±16kV, Contact – ±14kV
- IEC 61000-4-5 (Lighting): 5.5A (8/20μs)
- 8 Channels of ESD Protection
- Low Channel Input Capacitance of 0.6pF Typical
- TLP Dynamic Resistance: 0.30Ω
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
