DIODESDatasheet (PDF)

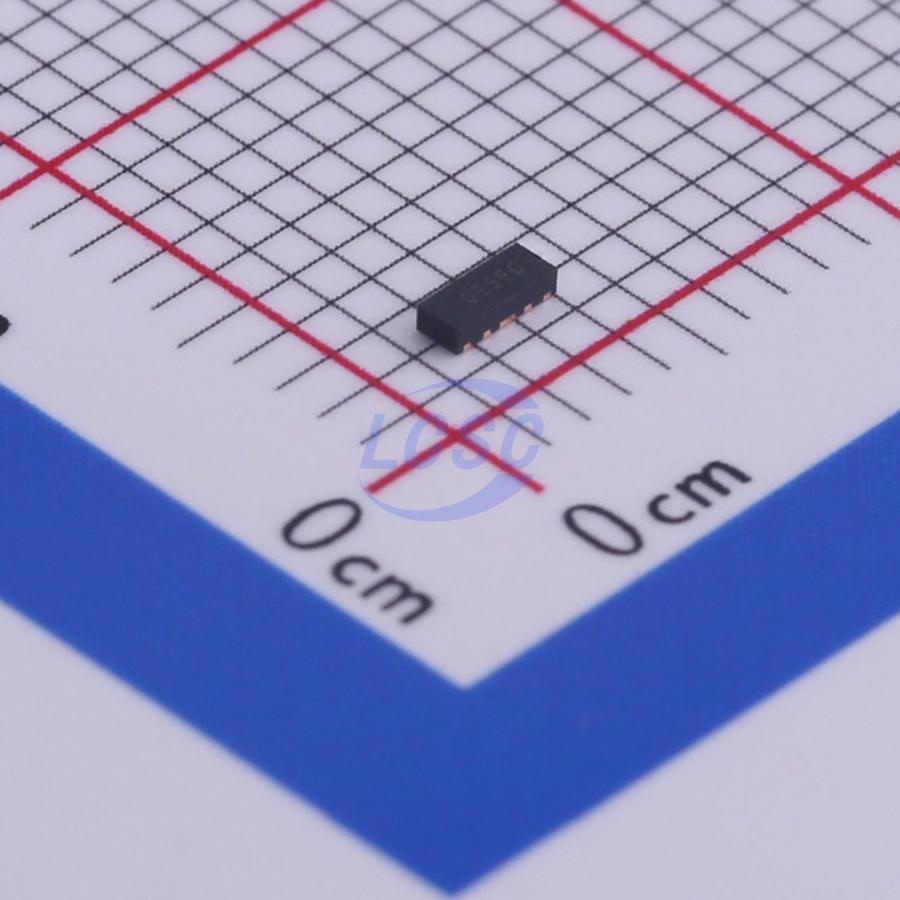

DT1240A-04LP-7
9.5VC Clamp 5.5A@8/20us Ipp ESD DIODE UDFN-10(1x2.5)
UDFN-10(1x2.5)ROHS3 CompliantActive
ESD DIODE 3.3VWM 9.5VC UDFN-10(1x2.5)
- Manufacturer
- DIODES
- Manufacturer part #
- DT1240A-04LP-7
- Store part #
- C443829
- Package / case
- UDFN-10(1x2.5)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,945 in stock
#C443829
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.00 | ₹110.00 |
| 50+ | ₹17.61 | ₹880.50 |
| 150+ | ₹15.73 | ₹2,359.50 |
| 500+ | ₹13.38 | ₹6,690.00 |
| 3,000+ | ₹12.33 | ₹36,990.00 |
| 6,000+ | ₹11.71 | ₹70,260.00 |
5 × ₹22.00
₹110.00
excl. GST
₹129.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DT1240A-04LP-7
₹110.00 for 5 + GST
Specifications
- Clamping Voltage
- 9.5V
- Operating Temperature
- -55℃~+85℃
- Peak Pulse Current (Ipp)
- 5.5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 52W
- Number of Channels
- Four channels
- Voltage - Breakdown
- 5V
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
The DT1240A-04LP is a high-performance device suitable for protecting four high-speed I/Os. These devices are assembled in U-DFN2510-10 and U-DFN2510-10 (Type CJ) packages and have high ESD surge capability and low capacitance.
Applications
- Typically used at high-speed ports such as USB2.0, USB3.0, USB3.1, IEEE1394 (Firewire, iLink), Serial ATA, DVI, HDMI1.4, HDMI2.0 and PCI.
Key features
- Clamping Voltage: 7.5V at 10A 100ns, TLP 8.2V at 5.5A (8μs/20μs)
- IEC 61000-4-2 (ESD): Air – ±16kV, Contact – ±14kV
- IEC 61000-4-5 (Lighting): 5.5A (8/20μs)
- 4 Channels of ESD Protection
- Low Channel Input Capacitance of 0.55pF Typical
- TLP Dynamic Resistance: 0.2Ω
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
