DIODESDatasheet (PDF)

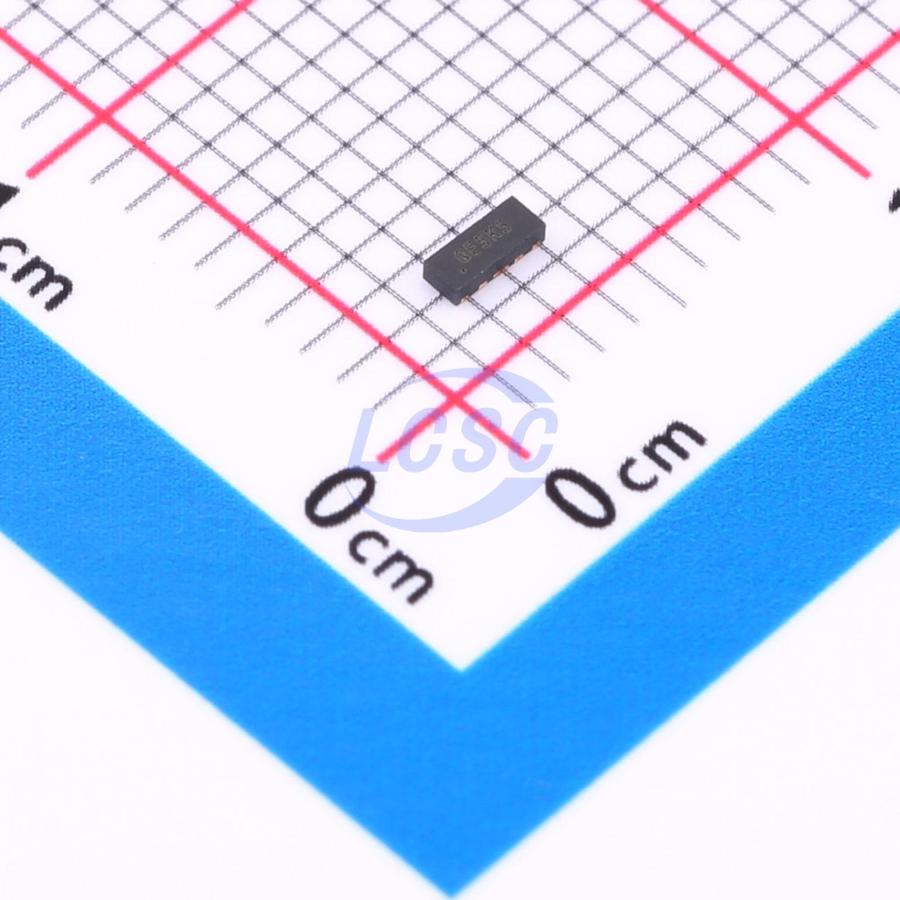

DT1240A-04LPQ-7
9.5VC Clamp 5.5A@8/20us Ipp ESD DIODE UDFN2510-10
UDFN2510-10ROHS3 CompliantActive
ESD DIODE 3.3VWM 9.5VC UDFN2510-10
- Manufacturer
- DIODES
- Manufacturer part #
- DT1240A-04LPQ-7
- Store part #
- C5248968
- Package / case
- UDFN2510-10
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
75 in stock
#C5248968
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.61 | ₹148.05 |
| 50+ | ₹28.96 | ₹1,448.00 |
| 150+ | ₹28.52 | ₹4,278.00 |
| 500+ | ₹28.09 | ₹14,045.00 |
5 × ₹29.61
₹148.05
excl. GST
₹174.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DT1240A-04LPQ-7
₹148.05 for 5 + GST
Specifications
- Clamping Voltage
- 9.5V
- Operating Temperature
- -55℃~+85℃
- Peak Pulse Current (Ipp)
- 5.5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 52W@8/20us
- Voltage - Breakdown
- 5V
- Number of Channels
- Four channels
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.027 g
Overview
The DT1240A- 04LPQ is a high- performance device suitable for protecting four high- speed I/Os. These devices are assembled in U- DFN2510- 10 package and have high ESD surge capability and low capacitance.
Applications
- Typically used at high- speed ports such as USB2.0, USB3.0, USB3.1, IEEE1394 (Firewire iLink), Serial ATA, DVI, HDMI1.4, HDMI2.0 and PCI.
Key features
- Clamping Voltage: 7.5V at 10A (100ns, TLP 8.2V at 5.5A (8μs/20μs)
- IEC 61000- 4- 2 (ESD): Air - ±16kV, Contact - ±14kV
- IEC 61000- 4- 5 (Lighting): 5.5A (8μs/20μs)
- 4 Channels of ESD Protection
- Low Channel Input Capacitance of 0.55pF Typical
- TLP Dynamic Resistance: 0.2Ω
- Totally Lead- Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- The DT1240A- 04LPQ is suitable for automotive applications requiring specific change control; this part is AEC- Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities.
