DIODESDatasheet (PDF)

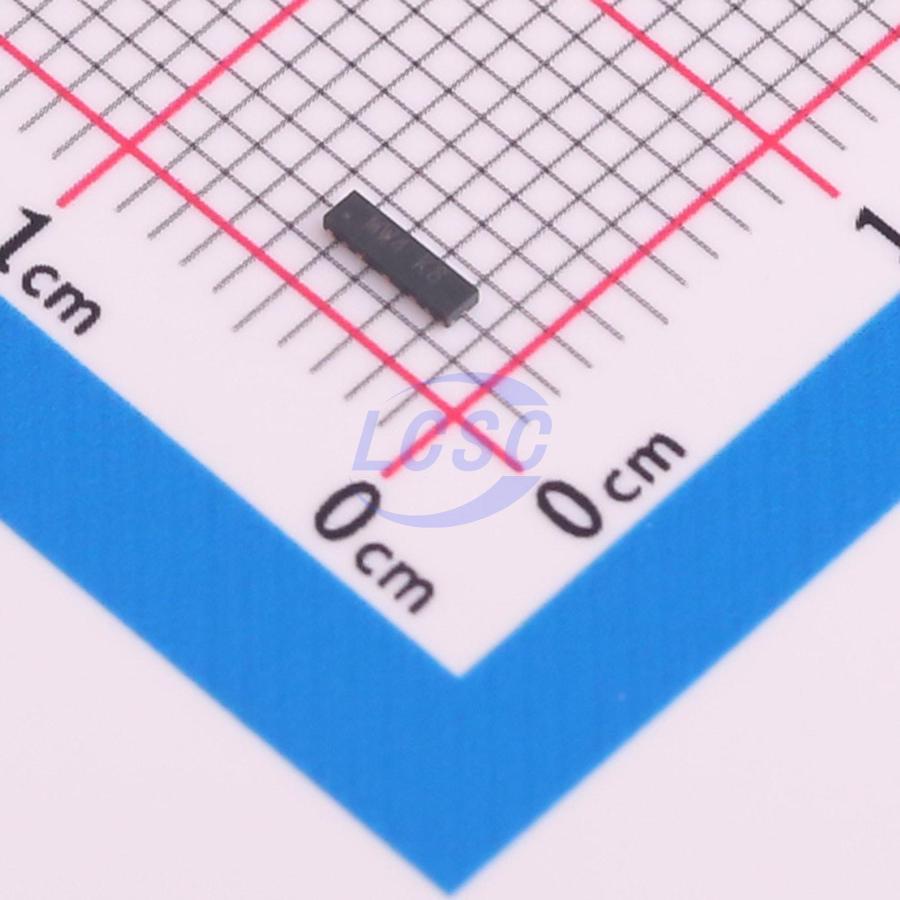

DT1240A-08LP3810Q-7
10VC Clamp 5.5A Ipp ESD DIODE UDFN3810-9
UDFN3810-9ROHS3 CompliantActive
ESD DIODE 3.3VWM 10VC UDFN3810-9
- Manufacturer
- DIODES
- Manufacturer part #
- DT1240A-08LP3810Q-7
- Store part #
- C5175174
- Package / case
- UDFN3810-9
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
543 in stock
#C5175174
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.79 | ₹72.79 |
| 10+ | ₹58.23 | ₹582.30 |
| 30+ | ₹51.72 | ₹1,551.60 |
| 100+ | ₹43.90 | ₹4,390.00 |
| 500+ | ₹40.42 | ₹20,210.00 |
| 1,000+ | ₹38.25 | ₹38,250.00 |
1 × ₹72.79
₹72.79
excl. GST
₹85.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
DT1240A-08LP3810Q-7
₹72.79 for 1 + GST
Specifications
- Clamping Voltage
- 10V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 5.5A
- Peak Pulse Power Dissipation (Ppp)
- 55W
- Number of Channels
- 8
- Voltage - Breakdown
- 5V
- type
- ESD
- Reverse Leakage Current (Ir)
- 500nA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.066 g
Overview
The DIODES DT1240A- 08LP3810Q is a high- performance device suitable for protecting four high- speed I/Os. This device is assembled in U- DFN3810- 9 (Type B) package and has high ESD surge capability and low capacitance.
Applications
- Typically used at high- speed ports such as USB2.0, USB3.0, USB3.1, IEEE1394 (Firewire, Link), Serial ATA, DVI, HDMI1.4, HDMI2.0 and PCI.
Key features
- Clamping Voltage: 8.2V at 10A 100ns, TLP: 7.5V at 5.5A (8μs/20μs)
- IEC 61000- 4- 2 (ESD): Air - ±16kV, Contact - ±14kV
- IEC 61000- 4- 5 (Lighting): 5.5A (8/20μs)
- 8 Channels of ESD Protection
- Low Channel Input Capacitance of 0.6pF Typical
- TLP Dynamic Resistance: 0.25Ω
- Totally Lead- Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Suitable for automotive applications requiring specific change control; this part is AEC- Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities.
