DIODESDatasheet (PDF)

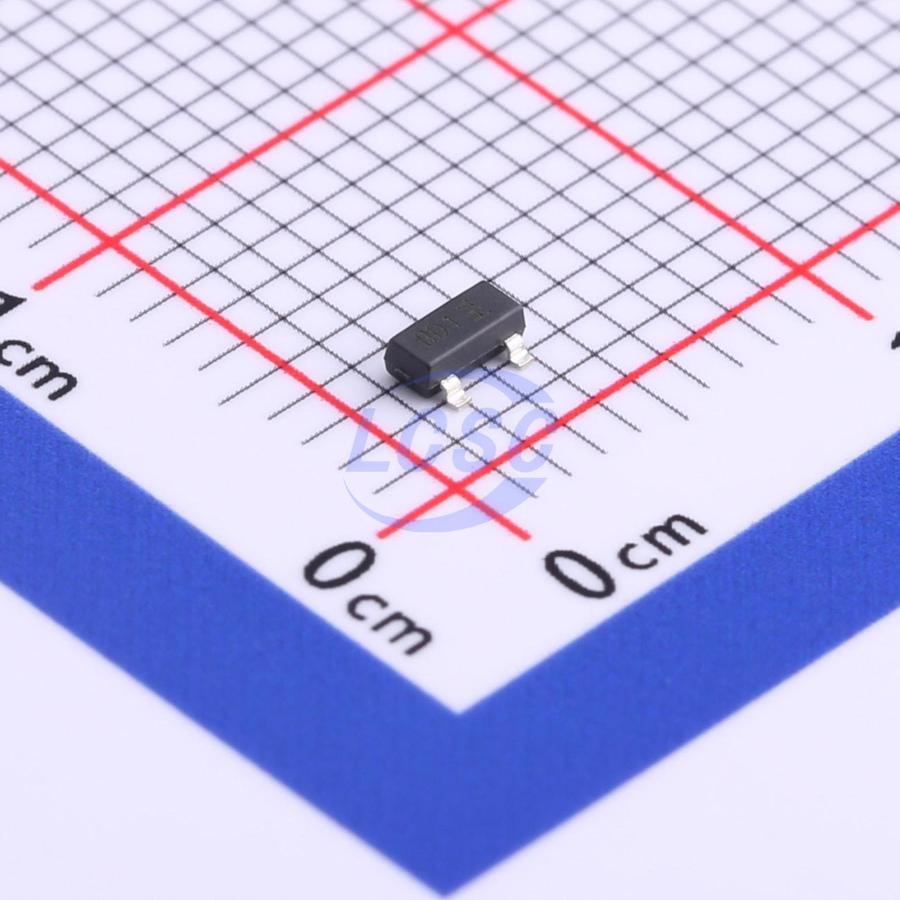

DT1452-02SO-7
11VC Clamp 12A@8/20us Ipp ESD DIODE SOT-23
SOT-23ROHS3 CompliantActive
ESD DIODE 5.5VWM 11VC SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DT1452-02SO-7
- Store part #
- C526599
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
305 in stock
#C526599
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹49.24 | ₹246.20 |
| 50+ | ₹40.84 | ₹2,042.00 |
| 150+ | ₹37.24 | ₹5,586.00 |
| 500+ | ₹32.74 | ₹16,370.00 |
| 3,000+ | ₹30.75 | ₹92,250.00 |
| 6,000+ | ₹29.54 | ₹1,77,240.00 |
5 × ₹49.24
₹246.20
excl. GST
₹290.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DT1452-02SO-7
₹246.20 for 5 + GST
Specifications
- Clamping Voltage
- 11V
- Peak Pulse Current (Ipp)
- 12A@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 7V
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.032 g
Overview
Key features
- IEC 61000 - 4 - 2 (ESD): Air - ±16kV, Contact - ±16kV
- IEC 61000 - 4 - 4 (EFT) Additional Level, 55A (5/50ns)
- IEC 61000 - 4 - 5 (Lightning): 12A (8/20μs)
- 2 Channels of ESD protection
- Low Channel Input Capacitance of 1.2pF Typical
- Typically Used at High Speed Ports such as USB 2.0, IEEE1394, Serial ATA, DVI, HDMI, PCI
- Totally Lead - free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
