VBsemi ElecDatasheet (PDF)

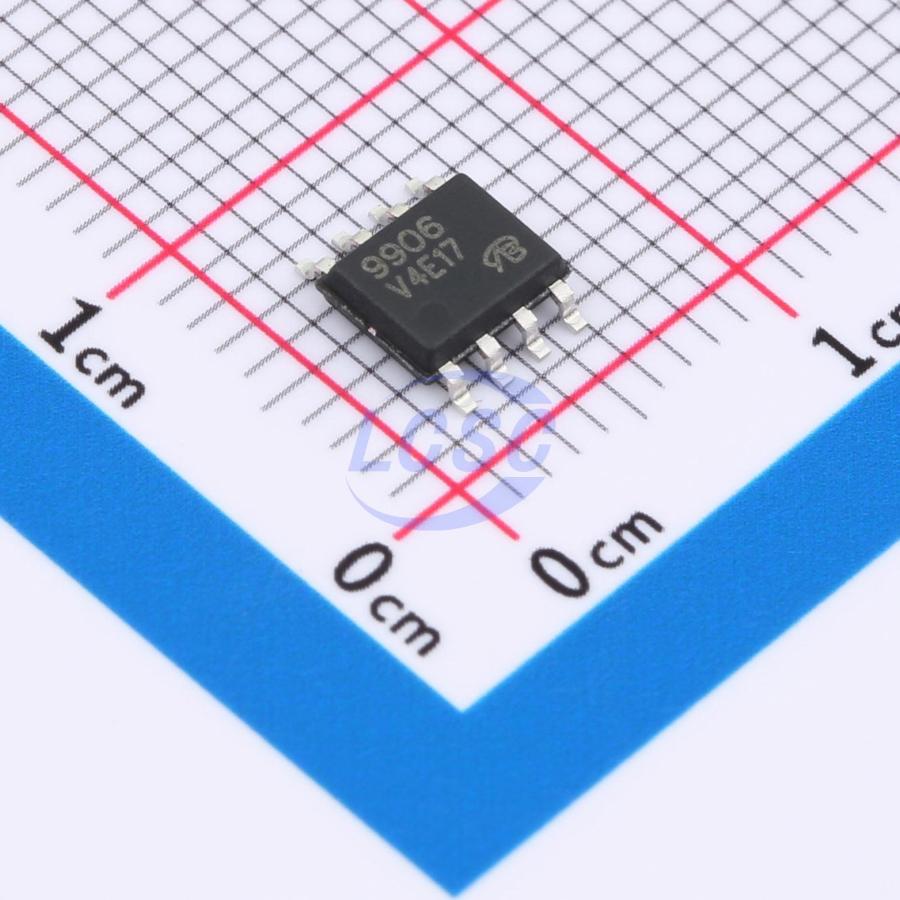

DTM9906-VB
N-Channel+P-Channel Array 60V 5.3A 3.4W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH+P-CH ARR 60V 5.3A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- DTM9906-VB
- Store part #
- C22389410
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
55 in stock
#C22389410
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹98.62 | ₹98.62 |
| 10+ | ₹82.08 | ₹820.80 |
| 30+ | ₹73.59 | ₹2,207.70 |
| 100+ | ₹65.32 | ₹6,532.00 |
| 500+ | ₹50.72 | ₹25,360.00 |
| 1,000+ | ₹48.33 | ₹48,330.00 |
1 × ₹98.62
₹98.62
excl. GST
₹116.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
DTM9906-VB
₹98.62 for 1 + GST
Specifications
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 95pF
- Current - Continuous Drain(Id)
- 5.3A
- Ciss-Input Capacitance
- 665pF
- Pd - Power Dissipation
- 3.4W
- Reverse Transfer Capacitance (Crss)
- 60pF
- RDS(on)
- 26mΩ@10V;55mΩ@10V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 9nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.24 g
Overview
Applications
- Cold Cathode Fluorescent Lamp (CCFL) inverter
- N-channel MOSFET
- P-channel MOSFET
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant
- Halogen-free available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMC4028SSD-VB#C19632106VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 40 | ₹82.56 · 40 in stock | View |
 | UPA1790G-VB#C22389768VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹82.56 · 20 in stock | View |
 | BSO615CG-VB#C22389215VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 54 | ₹98.62 · 54 in stock | View |
 | P5506NVG-VB#C22389018VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹85.92 · 20 in stock | View |
 | IRF7343ITRPBF-VB#C18795080VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 25 | ₹86.92 · 25 in stock | View |
